AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

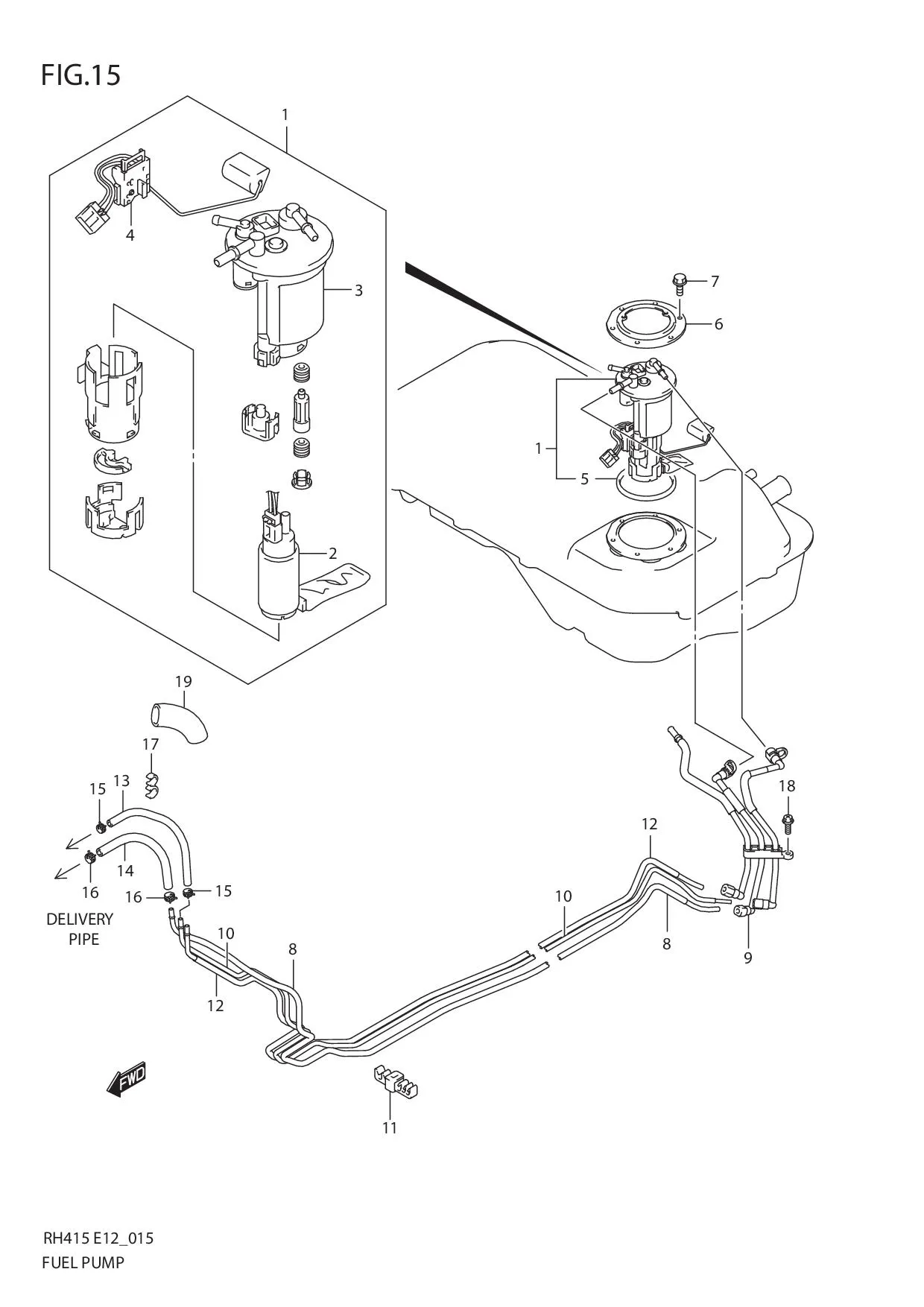

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-54820-000 PUMP SET, FUEL 1 Rp7.128.500
2 15110-54G00-000 •PUMP ASSY 1 Rp4.121.000
3 15310-54G01-000 •FILTER ASSY 1 Rp2.498.000
4 34810-54G00-000 •GAUGE ASSY 1 Rp1.017.500
5 DISCONTINUE
SUB: 15111-50G01-000		 •GASKET 1 -
6 15121M50G00-000 PLATE 1 Rp110.500
7 02162-0610A-000
SUB: 02162-06103-000		 SCREW 6 Rp5.000
8 DISCONTINUE
SUB: 15811-54G00-000		 PIPE, FUEL FEED 1 -
9 15820-54G02-000 PIPE, FUEL (TANK SIDE) 1 Rp1.366.500
10 DISCONTINUE
SUB: 15861-54G00-000		 PIPE, FUEL RETURN 1 -
11 DISCONTINUE
SUB: 15882-54G00-000		 CLAMP 8 -
12 DISCONTINUE
SUB: 18351-54G00-000		 PIPE, PURGE 1 -
13 09356-55117-600 HOSE, FUEL RETURN 1 Rp666.000 L:600!290
14 09356-75147-600 HOSE, FUEL 1 Rp464.000 L:600!250
15 09401-10409-000
SUB: 09401B10409N000		 CLIP, FUEL RETURN 2 Rp7.500
16 09401-13419-000 CLIP, FUEL HOSE 2 Rp26.500
17 DISCONTINUE
SUB: 09408M00121-000		 CLAMP 1 -
18 02162-0616A-000
SUB: 02162-06163L000		 SCREW 1 Rp3.000
19 DISCONTINUE
SUB: 15816-54G00-000		 PROTECTOR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
