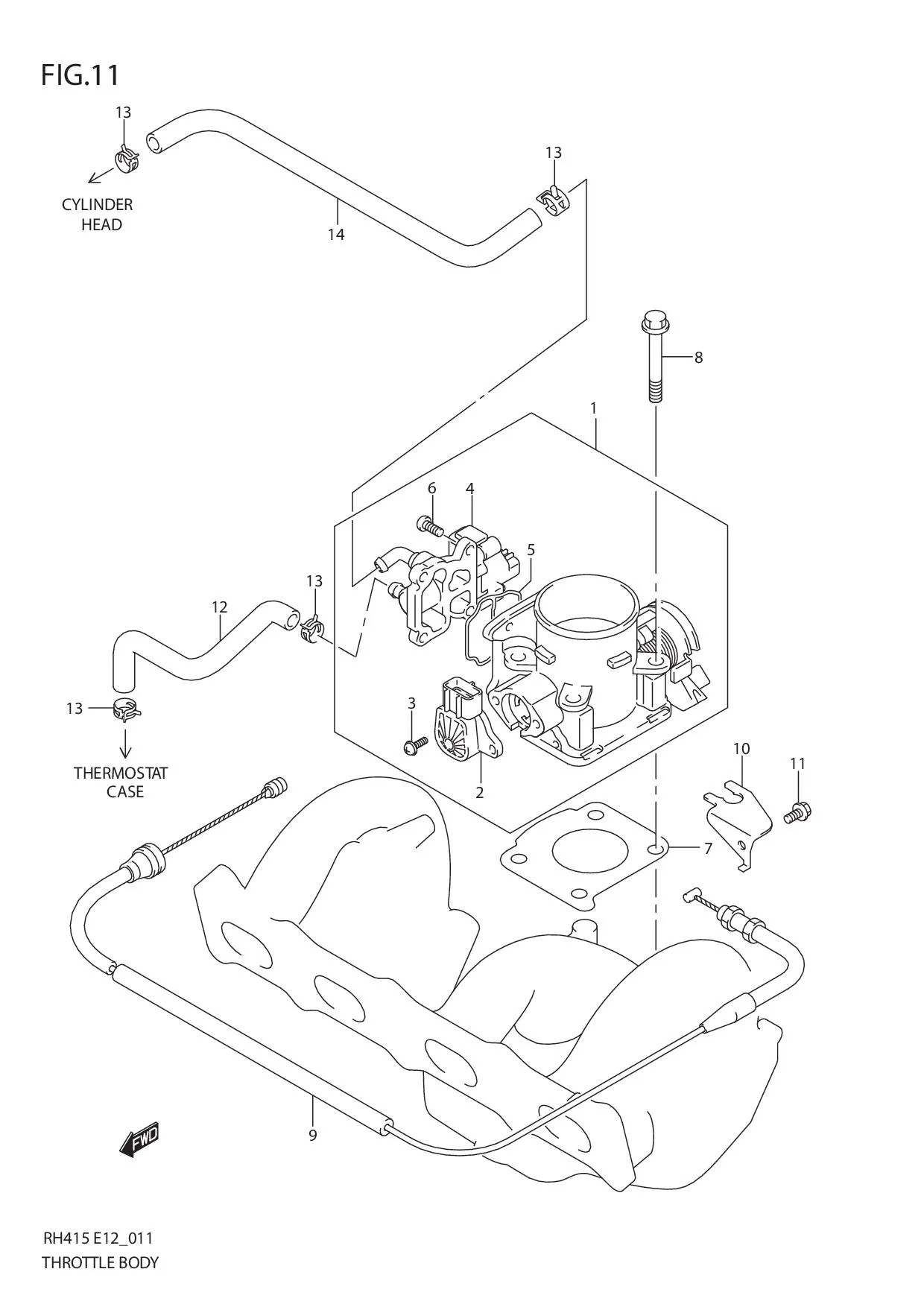

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-69G02-000 BODY ASSY, THROTTLE 1 Rp10.636.500
2 13420-65D01-000
SUB: 13420-65D00-000		 •SENSOR, THROTTLE POSITION 1 Rp2.687.000
3 13428-77G1V-000
SUB: 13428-77G10-000		 •SCREW 2 Rp24.000
4 18117-78F11-000 •VALVE, ISC 1 Rp3.511.500
5 14139-70G30-000
SUB: 14139M70G30-000		 •GASKET 1 Rp38.500
6 13601-05148-XC0
SUB: 13601-05148-000		 •SCREW (5X14) 4 Rp22.500
7-1 13421-54G10-000
SUB: 13421-54G00-000		 GASKET 1 Rp33.000
7-2 13421-54G10-000 GASKET 1 Rp33.000 2003-12%
8 01550-0855B-000
SUB: 01550-08553-000		 BOLT 4 Rp24.000
9 15910-54G02-000
SUB: 15910B54G01N000		 CABLE ASSY, ACCEL 1 Rp468.500
10 DISCONTINUE
SUB: 15919-54G00-000		 GUIDE, ACCEL CABLE 1 -
11 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
12 13492-80GA0-000 HOSE, WATER THROT BODY OUTLET 1 Rp74.500
13 09401-12410-000 CLIP 4 Rp15.000
14 13491-80GA0-000 HOSE, WATER THROT BODY INLET 1 Rp73.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
