AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

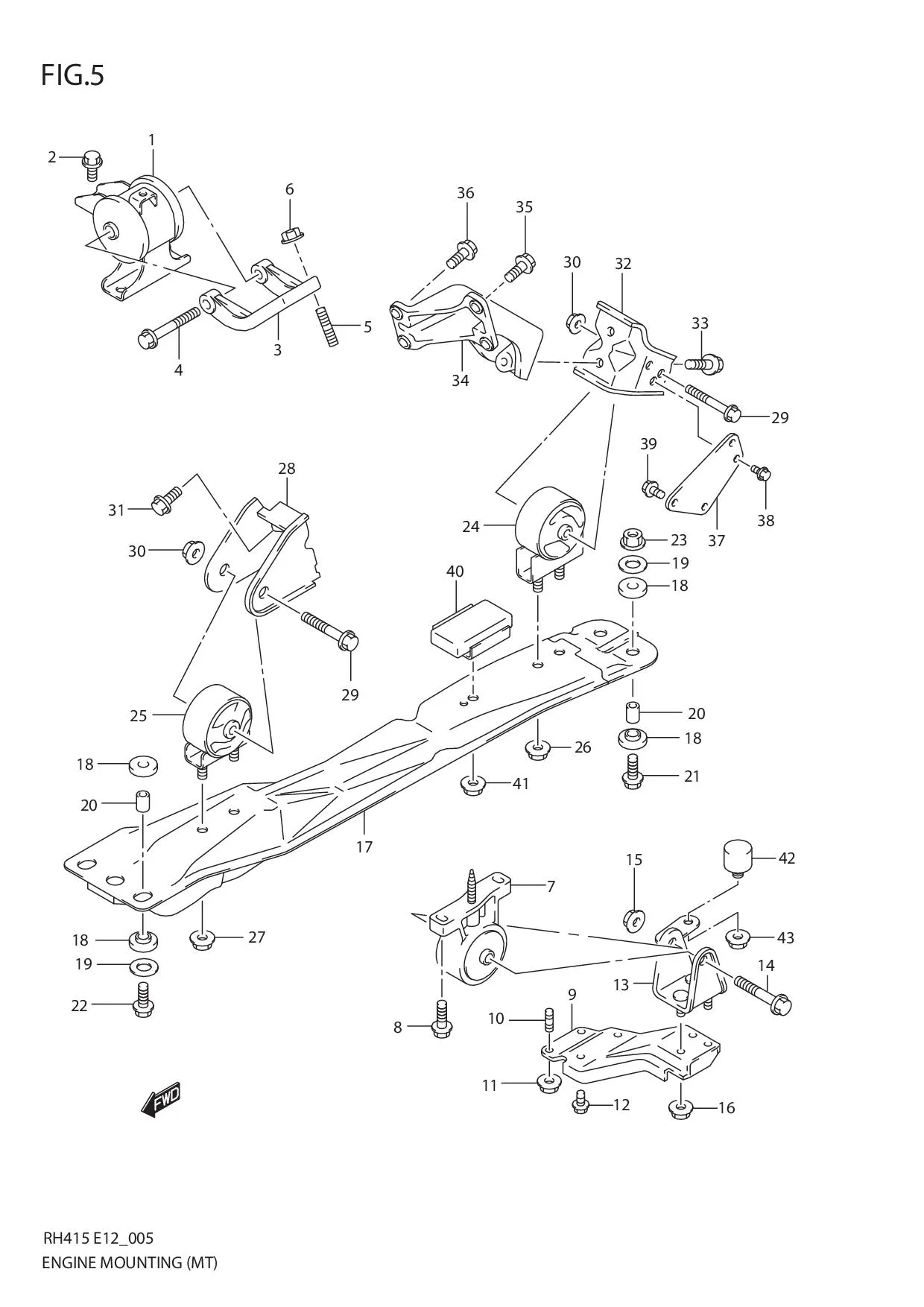

FIG.5 ENGINE MOUNTING (MT)

FIG.5 ENGINE MOUNTING (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-54G30-000
SUB: 11610-54G01-000		 MOUNTING, ENGINE RH 1 Rp1.938.000
2 01550-1020A-000
SUB: 01550-10203-000		 BOLT 3 Rp21.000
3 11641-54G10-000 BRACKET, ENGINE RH MOUNTING 1 Rp608.000
4 09103-10322-000 BOLT (10X120) 1 Rp48.000
5 09108-10136-000 STUD BOLT 3 Rp31.500
6 09159-10116-000
SUB: 09159-10105-000		 NUT 3 Rp18.000
7 11620-54G02-000 MOUNTING, ENGINE LH 1 Rp1.774.000
8 DISCONTINUE
SUB: 09112-10019-000		 BOLT (10X45) 2 -
9 DISCONTINUE
SUB: 11650-60G51-000		 BRACKET, ENG LH MTG NO.1 1 -
10 DISCONTINUE
SUB: 01411-08203-000		 STUD BOLT 2 -
11 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
12 01550-0820A-000
SUB: 01550-08203-000		 BOLT 2 Rp5.500
13 DISCONTINUE
SUB: 11670-54G01-000		 BRACKET, ENG LH MTG NO.2 1 -
14 01550-1080A-000
SUB: 01550-10803-000		 BOLT 1 Rp41.500
15 08316-1010A-000
SUB: 08316-10103-000		 NUT 1 Rp3.500
16 08316-1008A-000
SUB: 08316B10083N000		 NUT 3 Rp3.500
17 11630-54G01-000 MEMBER, MOUNTING 1 Rp2.277.500
18 11684-60G00-000 CUSHION 8 Rp42.500
19 11685-79J00-000
SUB: 11685-85000-000		 WASHER 4 Rp19.000
20 DISCONTINUE
SUB: 09180-10301-000		 SPACER (10.2X14X20) 4 -
21 01550-1040B-000
SUB: 01550-10403-000		 BOLT 2 Rp6.500
22 DISCONTINUE
SUB: 01551-10503-000		 BOLT 2 -
23 08316-1010A-000
SUB: 08316-10103-000		 NUT 2 Rp3.500
24 11710-65G50-000 MOUNTING, ENGINE REAR 1 Rp1.093.000
25 11720-62G00-000 BUSH, ENGINE FRONT TORQUE 1 Rp634.500
26 08316-1010A-000
SUB: 08316-10103-000		 NUT 2 Rp3.500
27 08316-1010A-000
SUB: 08316-10103-000		 NUT 2 Rp3.500
28 DISCONTINUE
SUB: 11761-54G01-000		 BRACKET, ENGINE FRONT MOUNTING 1 -
29 01550-1080A-000
SUB: 01550-10803-000		 BOLT 2 Rp41.500
30 08316-1010A-000
SUB: 08316-10103-000		 NUT 2 Rp3.500
31-1 01550-1025A-000
SUB: 01550-10253-000		 BOLT 2 Rp3.500
31-2 01550-1025A-000
SUB: 01550-10253-000		 BOLT 3 Rp3.500 2002-12%
32 DISCONTINUE
SUB: 11741-54G00-000		 BRACKET, ENG RR MTG NO.1 1 -
33 01550-1025A-000
SUB: 01550-10253-000		 BOLT 2 Rp3.500
34 11751-54G01-000
SUB: 11751-54G00-000		 BRACKET, ENG RR MTG NO.2 1 Rp746.000
35 01550-0825A-000
SUB: 01550-08253-000		 BOLT 1 Rp3.500
36 01550-1030B-000
SUB: 01550-10303-000		 BOLT 3 Rp25.500
37 DISCONTINUE
SUB: 11752-54G00-000		 STIFFENER 1 -
38 DISCONTINUE
SUB: 01560-08163-000		 BOLT 2 -
39 01550-1020A-000
SUB: 01550-10203-000		 BOLT 2 Rp21.000
40-1 DISCONTINUE
SUB: 11915-60G00-000		 DAMPER, DYNAMIC 1 -
40-2 DISCONTINUE
SUB: 11915-54G00-000		 DAMPER, DYNAMIC 1 - 2003-6%
41 08316-1010A-000
SUB: 08316-10103-000		 NUT 1 Rp3.500
42 DISCONTINUE
SUB: 11643-60G02-000		 DAMPER 1 -
43 08316-1008A-000
SUB: 08316B10083N000		 NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
