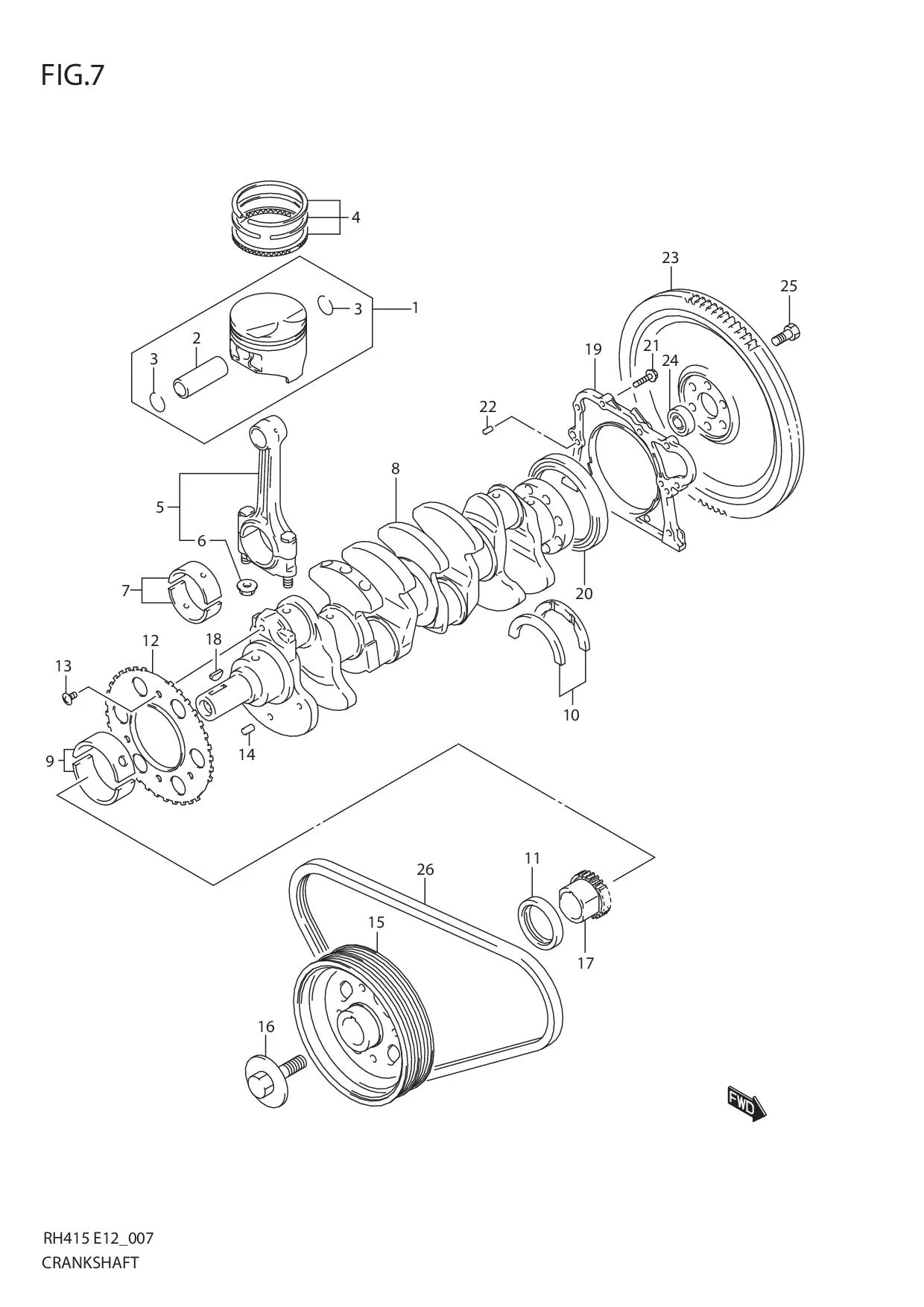

| 1-2 |
12100-54821-050
SUB: 12100-54820-050 |
PISTON SET (OS:0.50) |
4 |
Rp749.500 |
| |
| 1-1 |
12100-54821-000
SUB: 12100-54820-000 |
PISTON SET (STD) |
4 |
Rp801.500 |
| |
| 2 |
12151-85FA0-000 |
•PIN, PISTON |
4 |
Rp78.000 |
| |
| 3 |
09381-20004-000 |
•CIRCLIP |
8 |
Rp13.500 |
| |
| 4-1 |
12140-54G00-000 |
RING SET, PISTON (STD) |
4 |
Rp619.000 |
| |
| 4-2 |
12140-54G00-050 |
RING SET, PISTON (OS:0.50) |
4 |
Rp579.500 |
| |
| 5 |
12160-69GB0-000
SUB: 12160-69GA0-000 |
CONNECTING ROD ASSY |
4 |
Rp1.106.500 |
| |
| 6 |
09159-08114-000 |
•NUT |
8 |
Rp22.500 |
| |
| 7-3 |
12100-69830-0C0
SUB: 12300-69810-0C0 |
BEARING SET, CONNROD (NON COLOR) |
4 |
Rp146.500 |
STD,T:1.5 | |
| 7-6 |
12100-69830-025
SUB: 12300-69810-025 |
BEARING SET, CONNROD |
4 |
Rp144.000 |
US:0.25,T:1.625 | |
| 7-5 |
12100-69830-0E0
SUB: 12300-69810-0E0 |
BEARING SET, CONNROD (BLUE) |
4 |
Rp162.500 |
STD,T:1.5 | |
| 7-4 |
12100-69830-0D0
SUB: 12300-69810-0D0 |
BEARING SET, CONNROD (YELLOW) |
4 |
Rp159.000 |
STD,T:1.5 | |
| 7-2 |
12100-69830-0B0
SUB: 12300-69810-0B0 |
BEARING SET, CONNROD (BLACK) |
4 |
Rp154.000 |
STD,T:1.5 | |
| 7-1 |
12100-69830-0A0
SUB: 12300-69810-0A0 |
BEARING SET, CONNROD (GREEN) |
4 |
Rp149.500 |
STD,T:1.5 | |
| 8 |
12221-69GA0-000 |
CRANKSHAFT |
1 |
Rp9.935.000 |
| |
| 9-7 |
12300-57820-0DA
SUB: 12300-58810-0BA |
BEARING SET (RED/BLACK) |
5 |
Rp297.500 |
US:0.25,T:2.125 | |
| 9-10 |
12300-57820-0BA
SUB: 12300-58810-0ZA |
BEARING SET (RED/BROWN) |
5 |
Rp304.000 |
US:0.25,T:2.125 | |
| 9-9 |
12300-57820-0AA
SUB: 12300-58810-0YA |
BEARING SET (RED/PURPLE) |
5 |
Rp313.000 |
US:0.25,T:2.125 | |
| 9-8 |
12300-57820-0EA
SUB: 12300-58810-0CA |
BEARING SET (RED) |
5 |
Rp266.500 |
US:0.25,T:2.125 | |
| 9-6 |
12300-57820-0CA
SUB: 12300-58810-0AA |
BEARING SET (RED/GREEN) |
5 |
Rp268.500 |
US:0.25,T:2.125 | |
| 9-4 |
12340-57K02-0A0
SUB: 12340-58B00-0Y0 |
BEARING SET (PURPLE) |
5 |
Rp247.500 |
STD,T:2 | |
| 9-3 |
12340-57K02-0E0
SUB: 12340-58B00-0C0 |
BEARING SET (NON COLOR) |
5 |
Rp198.500 |
STD,T:2 | |
| 9-2 |
12340-57K02-0D0
SUB: 12340-58B00-0B0 |
BEARING SET (BLACK) |
5 |
Rp219.000 |
STD,T:2 | |
| 9-1 |
12340-57K02-0C0
SUB: 12340-58B00-0A0 |
BEARING SET (GREEN) |
5 |
Rp190.500 |
STD,T:2 | |
| 9-5 |
12340-57K02-0B0
SUB: 12340-58B00-0Z0 |
BEARING SET (BROWN) |
5 |
Rp227.500 |
STD,T:2 | |
| 10-1 |
12300-78890-000
SUB: 12300-60820-000 |
BEARING SET, CRANK THRUST |
1 |
Rp172.500 |
STD,T:2.5 | |
| 10-2 |
12300-78890-012
SUB: 12300-60820-012 |
BEARING SET, CRANK THRUST |
1 |
Rp167.500 |
OS:0.125,T:2.563 | |
| 11 |
09283-41003-000
SUB: 09283-41001-000 |
SEAL, OIL (41X53X6) |
1 |
Rp94.500 |
| |
| 12 |
12222-69G00-000 |
PLATE, SENSOR |
1 |
Rp98.500 |
| |
| 13 |
DISCONTINUE
SUB: 09139-06051-000 |
SCREW (6X10) |
3 |
- |
| |
| 14 |
09205-05006-000 |
PIN (5X12) |
1 |
Rp11.500 |
| |
| 15 |
12610-69G00-000 |
PULLEY, CRANKSHAFT |
1 |
Rp1.484.000 |
| |
| 16 |
12619-69G10-000
SUB: 12619-69G00-000 |
BOLT |
1 |
Rp102.500 |
| |
| 17 |
12631-54GA1-000
SUB: 12631-54G00-000 |
SPROCKET, CRANK TIMING |
1 |
Rp171.500 |
| |
| 18 |
08341M31059-000 |
KEY |
1 |
Rp4.500 |
| |
| 19 |
DISCONTINUE
SUB: 11341-69G00-000 |
HOUSING, OIL SEAL |
1 |
- |
| |
| 20 |
09283-83001-000 |
SEAL, OIL (83X103X8) |
1 |
Rp344.500 |
| |
| 21 |
09103-06282-000
SUB: 09103-06084-000 |
BOLT (6X25) |
9 |
Rp16.500 |
| |
| 22 |
09206-06005-000
SUB: 09206B06005N000 |
PIN (4X6X11) |
2 |
Rp14.500 |
| |
| 23 |
12620-54G00-000 |
FLYWHEEL |
1 |
Rp3.108.000 |
MT | |
| 24 |
12623-61J00-000
SUB: 12623-71C00L000 |
BEARING, INPUT |
1 |
Rp39.500 |
MT | |
| 25 |
09100-10275-000 |
BOLT (10X18.5) |
8 |
Rp30.500 |
MT | |
| 26 |
95141-50F01-000
SUB: 95141B50F01N000 |
BELT, WATER PUMP (4PK835) |
1 |
Rp80.500 |
| |
