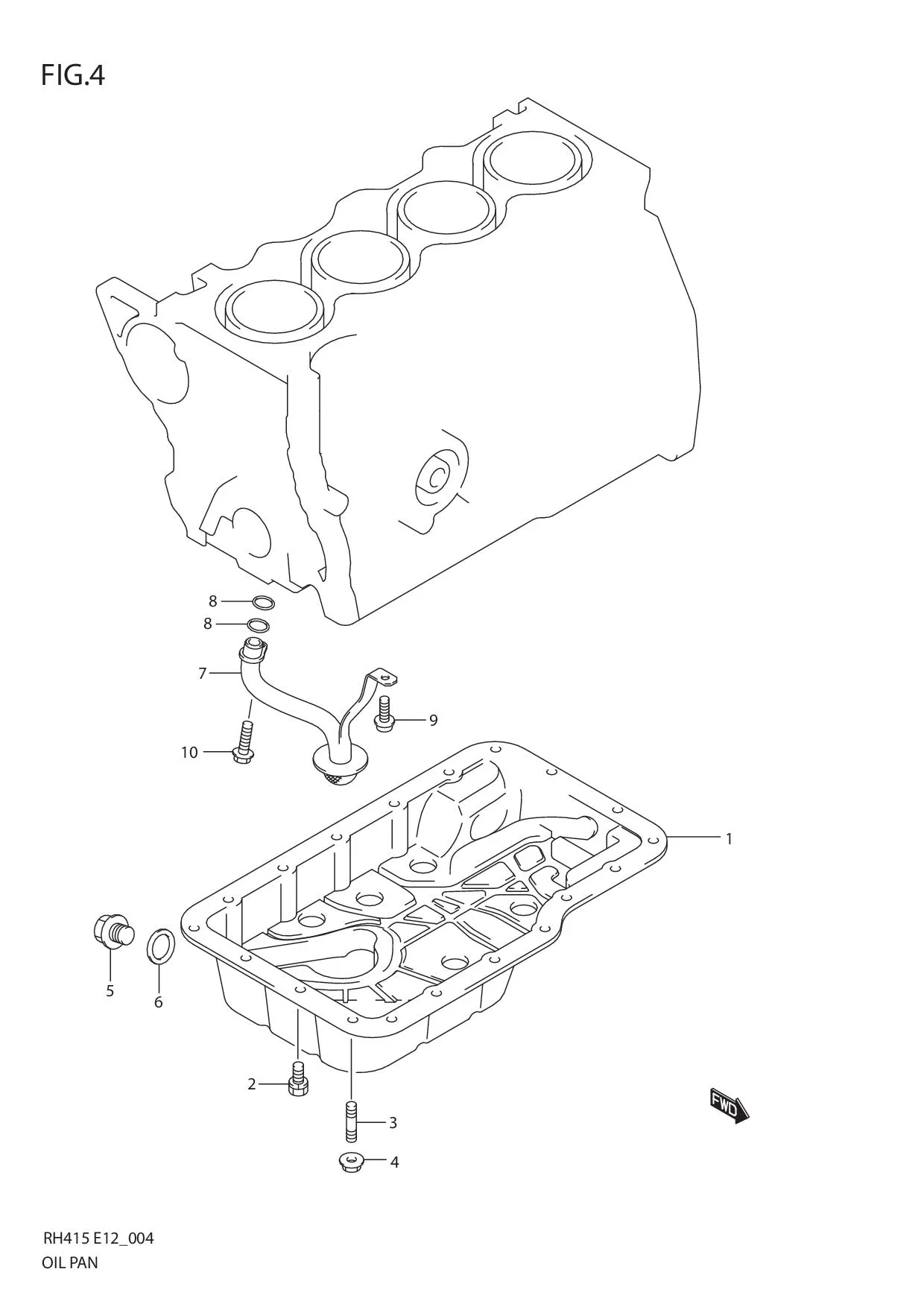

FIG.4 OIL PAN

FIG.4 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11510-69G03-000
SUB: 11510-69G02-000		 PAN, OIL 1 Rp1.638.000
2 09117-06061-000 BOLT (6X16) 17 Rp17.000
3 01421-0612A-000
SUB: 01421-06123-000		 STUD BOLT 2 Rp23.000
4 09159-06077-000 NUT 2 Rp17.500
5 09247-14044-000
SUB: 09247M14027-000		 PLUG, DRAIN 1 Rp18.000
6 09168-14015-000
SUB: 09168M14015-000		 GASKET (14X20X1.5) 1 Rp7.500
7 16520-69G04-000
SUB: 16520-69G02-000		 STRAINER, OIL PUMP 1 Rp409.500
8 51181-37B00-000
SUB: 09280B17002N000		 O RING 2 Rp5.000
9 07120-0612A-000
SUB: 07120-06123-000		 BOLT 1 Rp16.500
10 07120-0616A-000
SUB: 07120-06163-000		 BOLT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
