AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

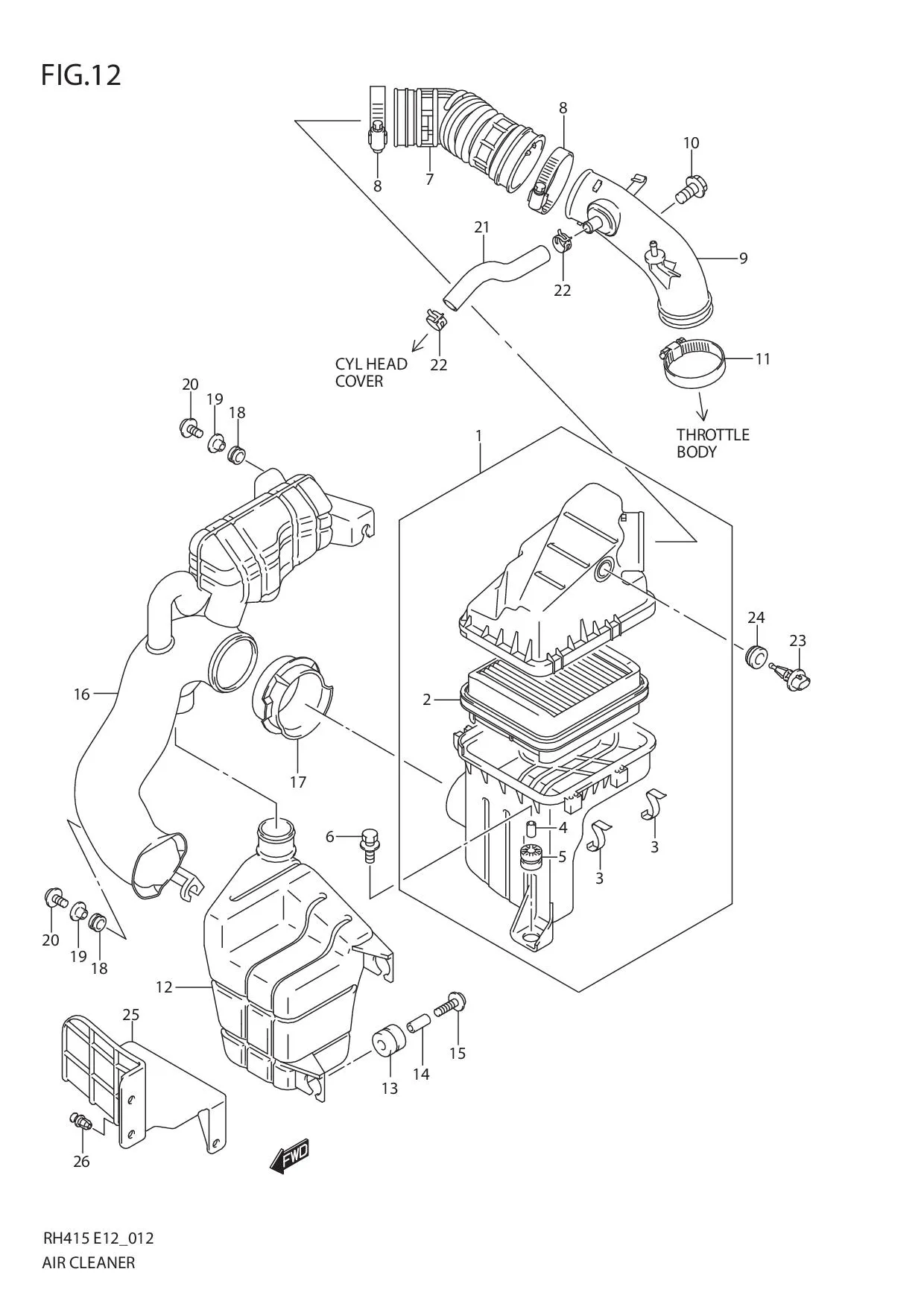

FIG.12 AIR CLEANER

FIG.12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-54G10-000 CLEANER ASSY, AIR 1 Rp1.836.000
2 13780-54G10-000 •ELEMENT 1 Rp249.500
3 13755-54G00-000 •CLIP 2 Rp41.000
4 DISCONTINUE
SUB: 13877-54G00-000		 •COLLAR 2 -
5 13878-65D00-000 •CUSHION 2 Rp43.000
6 09116-06172-000 BOLT (6X30) 2 Rp19.500
7 13881-54G20-000 HOSE, OUTLET 1 Rp485.000
8 DISCONTINUE
SUB: 09402-00512-000		 CLAMP 2 -
9 DISCONTINUE
SUB: 13830-54G02-000		 PIPE, AIR INTAKE 1 -
10 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500
11 09402-70503-000
SUB: 09402-69511-000		 CLAMP 1 Rp91.500
12 13761-54G00-000 RESONATOR, AIR SUCTION 1 Rp783.000
13 DISCONTINUE
SUB: 13766-56B00-000		 CUSHION 2 -
14 DISCONTINUE
SUB: 09180-08197-000		 SPACER (8.5X12X23.5) 2 -
15 DISCONTINUE
SUB: 09113-06501-000		 BOLT (6X35) 2 -
16-1 DISCONTINUE
SUB: 13765-54G20-000		 PIPE, CLEANER SUCTION 1 -
16-2 DISCONTINUE
SUB: 13765-54G40-000		 PIPE, CLEANER SUCTION 1 - 2003-9%
17 13872-54G10-000 HOSE, INLET 1 Rp220.000
18 09320M11017-000 CUSHION 2 Rp6.500
19 DISCONTINUE
SUB: 09169-09008-000		 COLLAR 2 -
20 DISCONTINUE
SUB: 13767-60G00-000		 CLIP 2 -
21 11191-54G01-000 HOSE, BREATHER 1 Rp112.000
22 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000
23 13650-52G00-000 SENSOR, INLET AIR TEMP 1 Rp762.500
24 13655-77E10-000
SUB: 13655-77E00-000		 GROMMET 1 Rp30.000
25 DISCONTINUE
SUB: 13821-54G00-000		 PROTECTOR, AIR SUCTION 1 -
26 09409M07L01-000
SUB: 09409M07332-000		 CLIP 3 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
