AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

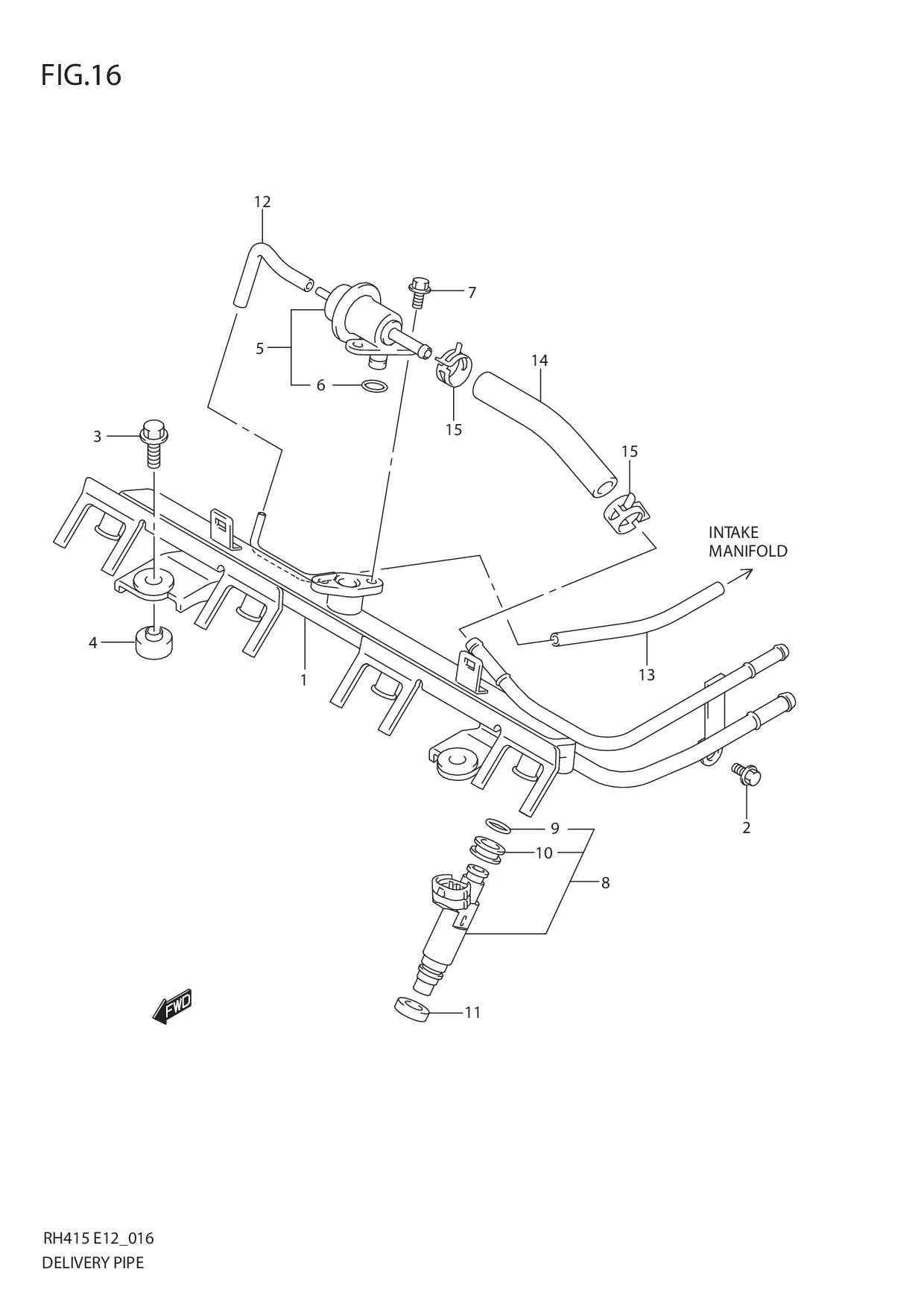

FIG.16 DELIVERY PIPE

FIG.16 DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15730-54G00-000		 PIPE, FUEL DELIVERY 1 -
2 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
3 01550-0830B-000
SUB: 01550-08303L000		 BOLT 2 Rp3.000
4 15735-58B00-000 INSULATOR 2 Rp45.500
5 15610-67D00-000 REGULATOR ASSY 1 Rp1.821.000
6 DISCONTINUE
SUB: 15710-51E10-000		 •O RING 1 -
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
8 15710-54G00-000 INJECTOR ASSY, FUEL 4 Rp5.530.000
9 15710-09300-000
SUB: 15710B09300N000		 •O RING 4 Rp13.500
10 15720-09300-000
SUB: 15720B09300N000		 •GROMMET 4 Rp11.500
11 09320-09022-000
SUB: 09320-08062-000		 CUSHION 4 Rp8.500
12 09355-35006-601
SUB: 09355-35754-601		 HOSE, VAC (REG TO DLVRY) 1 Rp66.000 L:601!90
13 09355-35006-601
SUB: 09355-35754-601		 HOSE, VAC (DLVRY TO INMF) 1 Rp66.000 L:601!130
14 09356-55117-600 HOSE, FUEL RETURN 1 Rp666.000 L:600!100
15 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
