AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

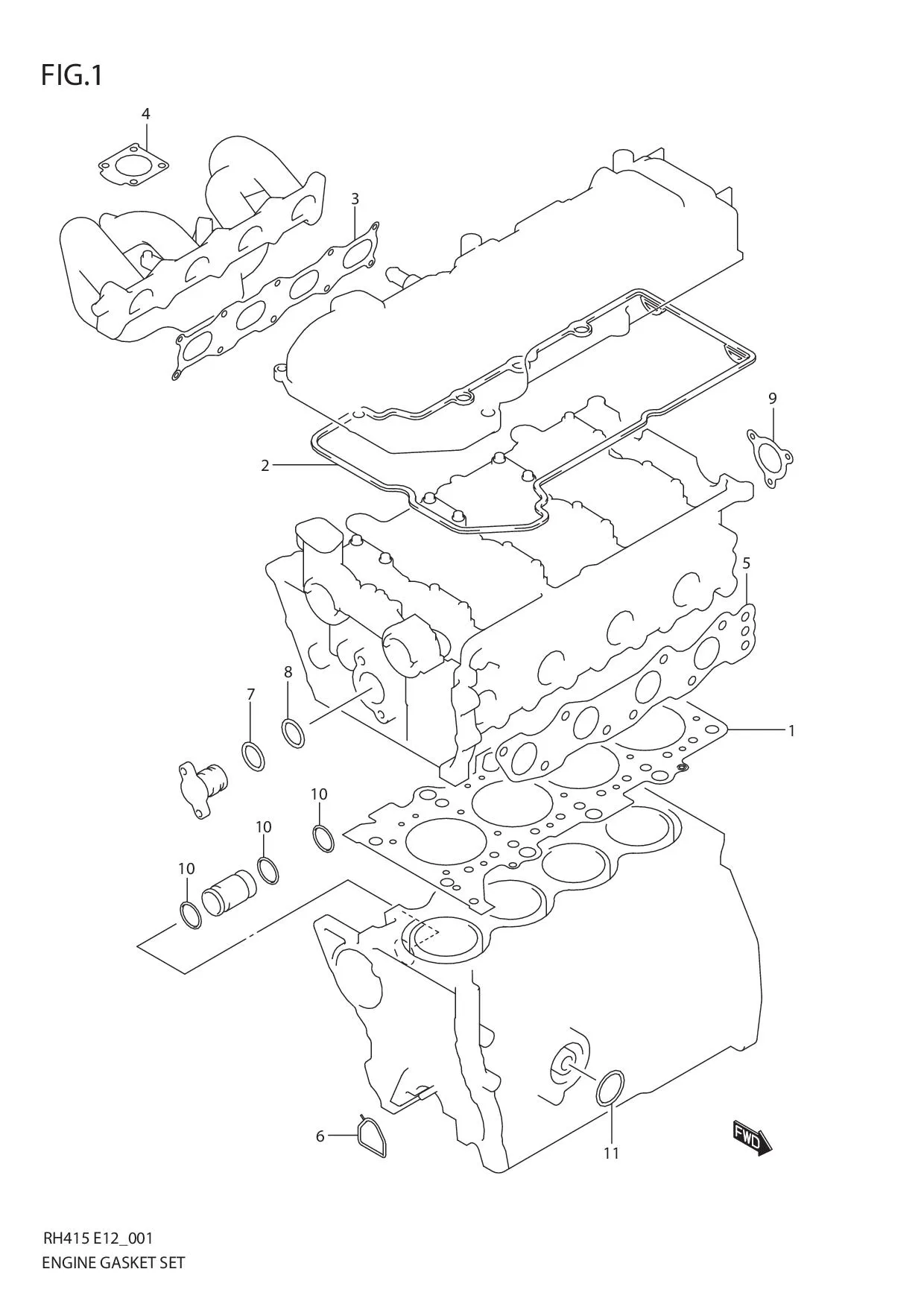

FIG.1 ENGINE GASKET SET

FIG.1 ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
11400-69838-000
SUB: 11400-54891-000		 GASKET SET, ENGINE 1 Rp1.563.000
11400-69845-000
SUB: 11400-69840-000		 GASKET SET, ENGINE 1 Rp1.411.000 2003-12%
1 11141-69G03-000
SUB: 11141-69G02-000		 •GASKET, CYLINDER HEAD 1 Rp706.500
2 11189-54GE0-000
SUB: 11189-69GE0-000		 •GASKET, CYLINDER HEAD COVER 1 Rp195.500
3 13119-69G00-000 •GASKET, INTAKE MANIFOLD 1 Rp152.500
4-1 13421-54G10-000
SUB: 13421-54G00-000		 •GASKET, THROTTLE BODY 1 Rp33.000
4-2 13421-54G10-000 •GASKET, THROTTLE BODY 1 Rp33.000 2003-12%
5 14140-69G02-000
SUB: 14140-69G00-000		 •GASKET, EXHAUST MANIFOLD 1 Rp156.000
6 16559-69GE0-000 •GASKET, OIL CONTROL VALVE 1 Rp40.500
7 17582-54D00-000 •O RING, WATER OUTLET CAP NO.1 1 Rp29.000
8 17583-54D00-000 •O RING, WATER OUTLET CAP NO.2 1 Rp32.000
9 17699-69G00-000 •GASKET, WATER OUTLET CAP 1 Rp40.500
10 09280-28008-000
SUB: 09280B28008N000		 •O RING, THRM OUTLET PIPE 3 Rp2.500
11 09280-62003-000 •O RING, OIL ADAPTER CASE 1 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
