AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

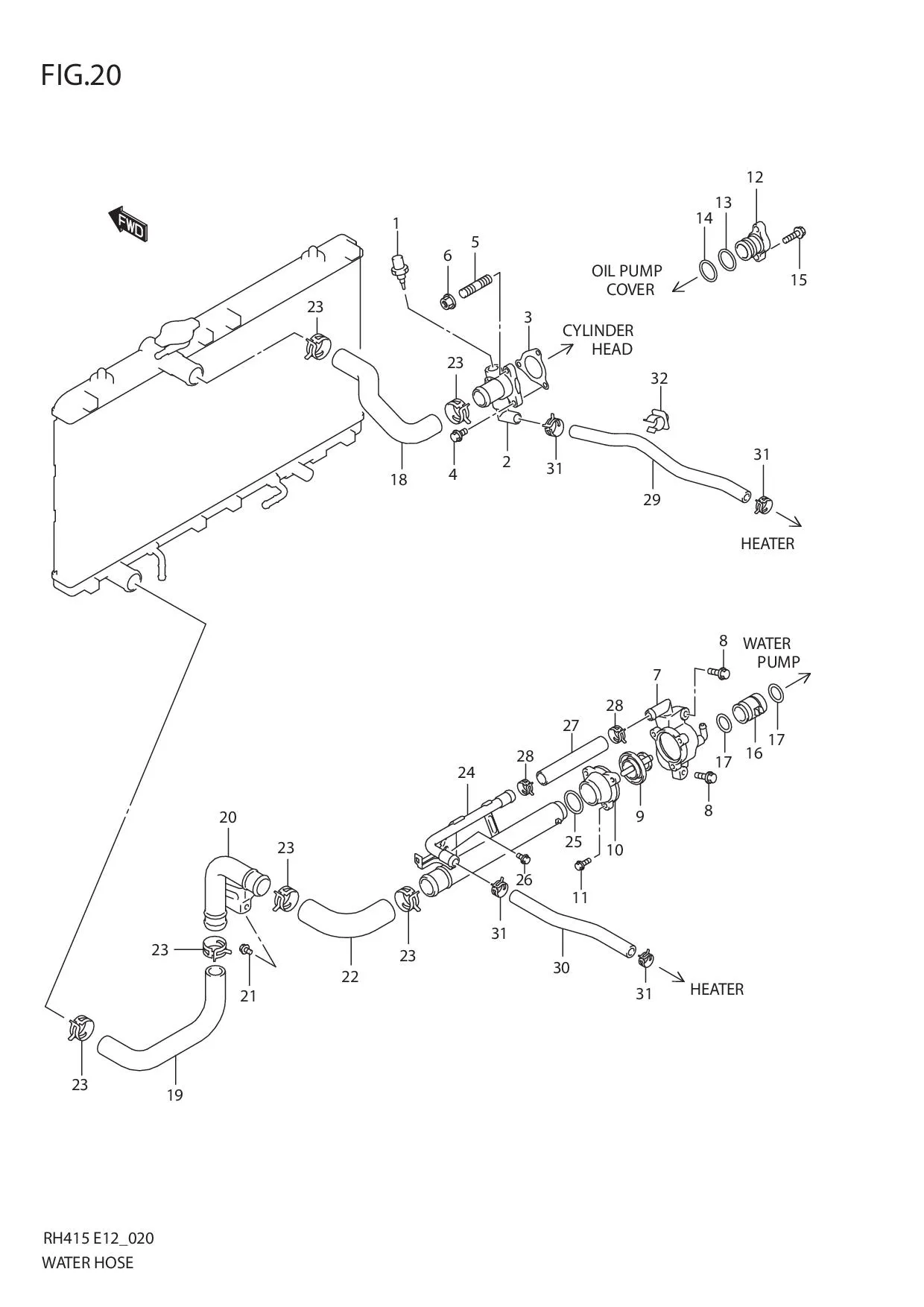

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-54G00-000 SENSOR, WATER TEMPERATURE 1 Rp659.500
2 17570-69G00-000 CAP, WATER OUTLET 1 Rp492.500
3 17699-69G00-000 GASKET 1 Rp40.500
4 01550-0825A-000
SUB: 01550-08253-000		 BOLT 1 Rp3.500
5 01421-0825A-000
SUB: 01421-08253-000		 STUD BOLT 2 Rp13.000
6 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
7 17690-69G00-000 CASE, THERMOSTAT 1 Rp860.500
8 01550-0835B-000
SUB: 01550B08353N000		 BOLT 2 Rp4.500
9 17670-65D00-000
SUB: 17670-77E00-000		 THERMOSTAT, WATER (82ßC) 1 Rp301.500
10 17561-69G00-000 CAP, WATER THERMOSTAT 1 Rp222.500
11 DISCONTINUE
SUB: 01550B06253N000		 BOLT 3 -
12 17581-69G00-000 CAP, WATER OUTLET 1 Rp384.000
13 17582-54D00-000 O RING, WATER OUTLET CAP NO.1 1 Rp29.000
14 17583-54D00-000 O RING, WATER OUTLET CAP NO.2 1 Rp32.000
15 01550-0845A-000
SUB: 01550-08453-000		 BOLT 2 Rp18.000
16 17831-69G00-000 PIPE, WATER OUTLET 1 Rp154.500
17 09280-28008-000
SUB: 09280B28008N000		 O RING 2 Rp2.500
18 17852-54G00-000 HOSE, RADIATOR INLET 1 Rp245.500
19 17854-54G00-000 HOSE, RADIATOR OUTLET 1 Rp257.000
20 17860-54G00-000 PIPE, WATER INLET NO.2 1 Rp364.500
21 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
22 DISCONTINUE
SUB: 17853B69G00N000		 HOSE, WATER INLET 1 -
23 09401-35403-000
SUB: 09401-36403-000		 CLIP 6 Rp46.500
24 17840-69G00-000 PIPE, WATER INLET NO.1 1 Rp582.500
25 09280-28008-000
SUB: 09280B28008N000		 O RING 1 Rp2.500
26 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
27 17873-81K00-000
SUB: 17873B69G00N000		 HOSE, WATER BYPASS 1 Rp16.500
28 09401-21405-000 CLIP 2 Rp25.000
29 17871-54G00-000 HOSE, HEATER INLET 1 Rp219.500
30 17872-54G00-000 HOSE, HEATER OUTLET 1 Rp140.500
31 09401-21405-000 CLIP 4 Rp25.000
32 DISCONTINUE
SUB: 09403-23301-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
