AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

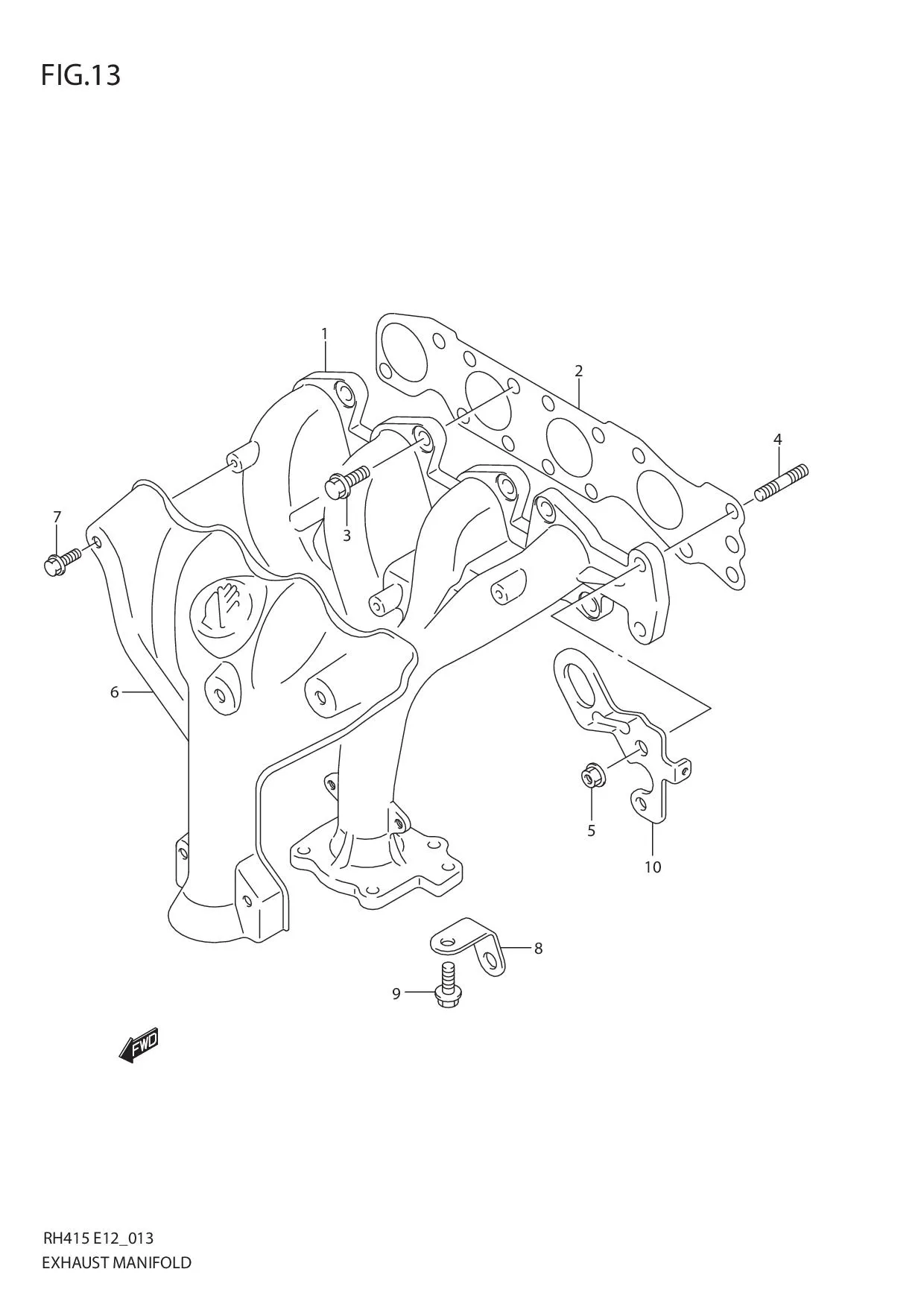

FIG.13 EXHAUST MANIFOLD

FIG.13 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 14111-80G11-000		 MANIFOLD, EXHAUST 1 -
2 14140-69G02-000
SUB: 14140-69G00-000		 GASKET 1 Rp156.000
3 01550-1025A-000
SUB: 01550-10253-000		 BOLT 4 Rp3.500
4 14118-63J00-000
SUB: 14118-65D00-000		 STUD BOLT 6 Rp21.500
5 08316-1010A-000
SUB: 08316-10103-000		 NUT 6 Rp3.500
6 DISCONTINUE
SUB: 14121-80G10-000		 COVER, EXHAUST MANIFOLD 1 -
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 5 Rp21.500
8 DISCONTINUE
SUB: 14271-54G00-000		 STIFFENER 1 -
9 09103-10324-000 BOLT (10X20) 2 Rp30.000
10 DISCONTINUE
SUB: 11851-54D01-000		 HOOK, ENGINE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
