AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

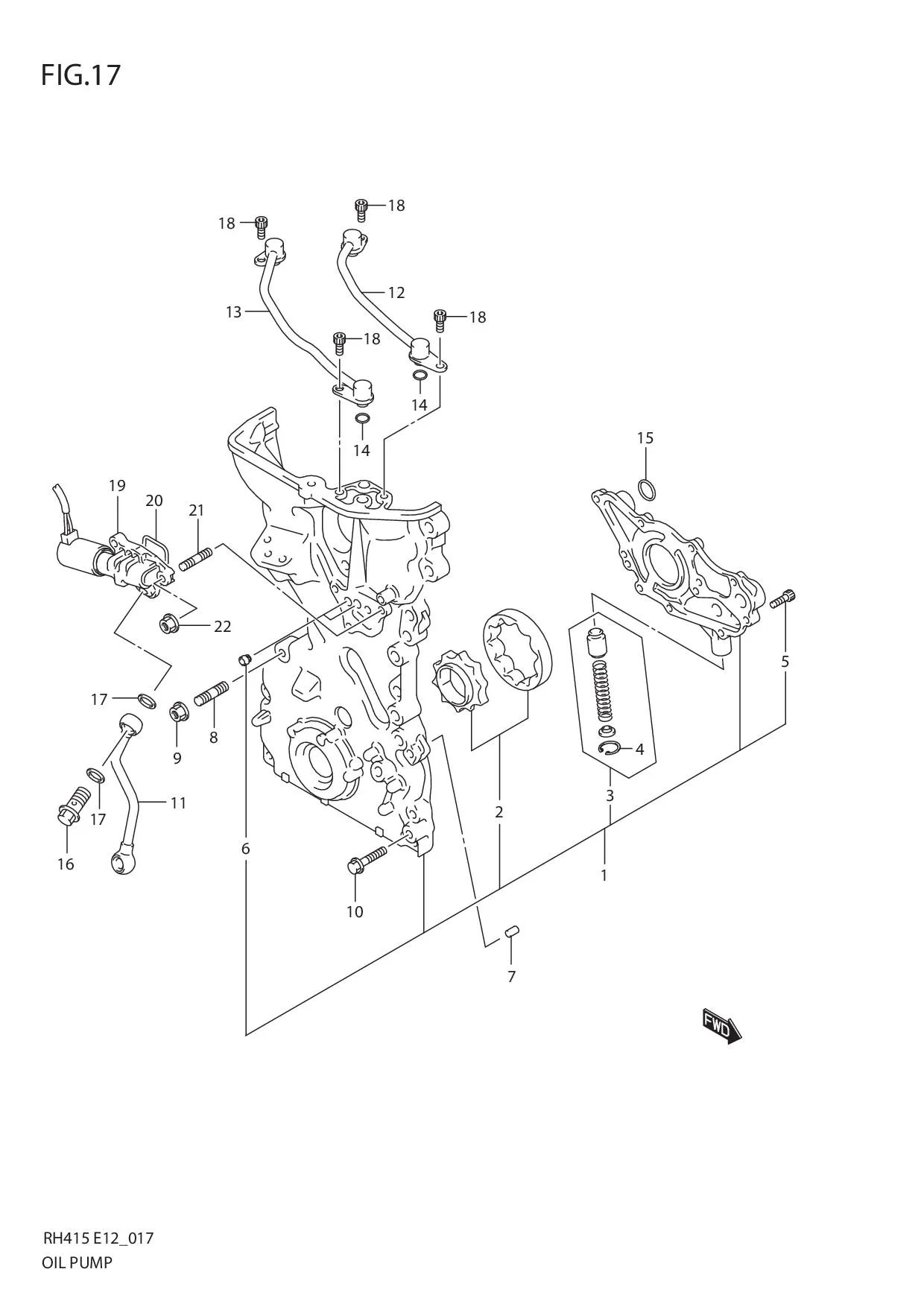

FIG.17 OIL PUMP

FIG.17 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-69GF0-000
SUB: 16100-69GE4-000		 PUMP ASSY, OIL 1 Rp3.025.000
2 16130-69GE0-000 •ROTOR SET 1 Rp721.000
3 16150-60A20-000
SUB: 16150-60A10-000		 •VALVE SET, RELIEF 1 Rp74.000
4 DISCONTINUE
SUB: 08331-41156-000		 ••CIRCLIP 1 -
5 07130-0625B-000 •BOLT 10 Rp22.000
6 16116-69GE0-000
SUB: 16116B69GE0N000		 •FILTER 2 Rp66.000
7 09206-06005-000
SUB: 09206B06005N000		 PIN 2 Rp14.500
8 DISCONTINUE
SUB: 09108-08090-000		 STUD BOLT 1 -
9 08316-1008A-000
SUB: 08316B10083N000		 NUT 1 Rp3.500
10 01550-0835B-000
SUB: 01550B08353N000		 BOLT 15 Rp4.500
11 16140-69GE2-000
SUB: 16140-69GE0-000		 PIPE, OIL GALLERY NO.1 1 Rp277.000
12 16170-69GE0-000 PIPE, OIL GALLERY NO.2 1 Rp369.500
13 16180-69GE0-000 PIPE, OIL GALLERY NO.3 1 Rp379.500
14 16147-78G70-000 O RING 4 Rp17.000
15 51181-37B00-000
SUB: 09280B17002N000		 O RING 3 Rp5.000
16 09360-12005-000 BOLT 2 Rp43.500
17 09168-12017-000 GASKET 4 Rp13.000
18 07130-0612A-000
SUB: 07130-06123-000		 BOLT 4 Rp3.500
19 16550-69GE3-000
SUB: 16550-69GE2-000		 VALVE, OIL CONTROL 1 Rp1.384.000
20 16559-69GE0-000 GASKET 1 Rp40.500
21 09108-06134-000
SUB: 09108-06118-000		 STUD BOLT 3 Rp22.500
22 08316-1006A-000
SUB: 08316-10063L000		 NUT 3 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
