AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

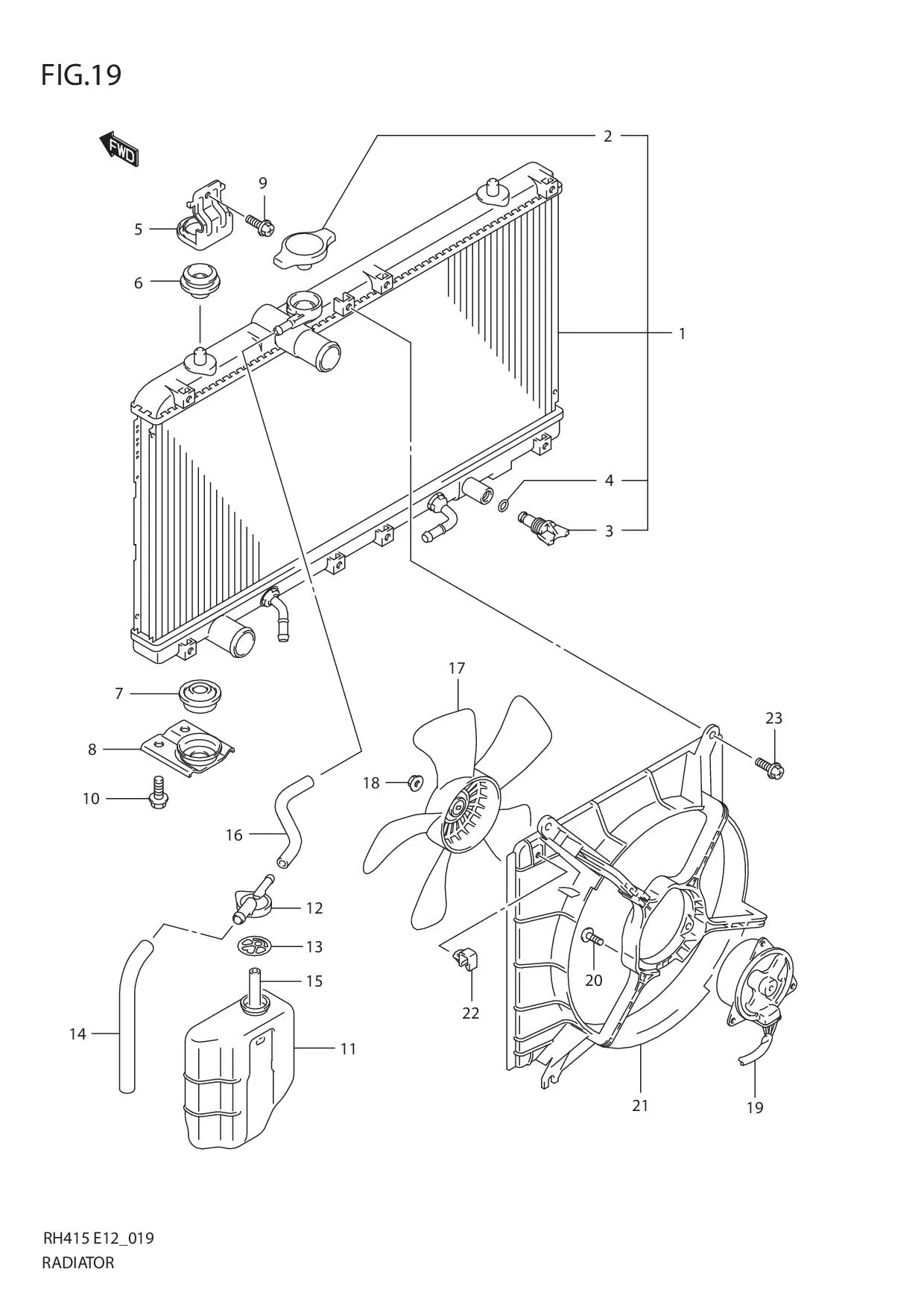

FIG.19 RADIATOR

FIG.19 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-54G10-000 RADIATOR ASSY 1 Rp10.519.500 AT
1-1 17700-54G00-000 RADIATOR ASSY 1 Rp6.434.500 MT
2 DISCONTINUE
SUB: 17920B75F00N000		 •CAP, RADIATOR 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG, DRAIN 1 Rp13.000
4 17759-72010-000 •O RING 1 Rp17.000
5 DISCONTINUE
SUB: 17811-54G00-000		 BRACKET, RADIATOR SUP UPPER 2 -
6-1 17812-60G00-000 MOUNT, UPPER 2 Rp42.000
6-2 17812-54G00-000 MOUNT, UPPER 2 Rp35.500 2003-1%
7-1 17813-60G10-000 MOUNT, LOWER 2 Rp64.000
7-2 17813-54G01-000 MOUNT, LOWER 2 Rp59.000 2003-1%
7-3 17813-60G10-000 MOUNT, LOWER 2 Rp64.000 2003-6%
8 DISCONTINUE
SUB: 17814-54G00-000		 BRACKET, RADIATOR SUP LOWER 2 -
9 02162-0612B-000
SUB: 02162-06123-000		 SCREW 2 Rp16.000
10 01551-0816C-000
SUB: 01551-08163-000		 BOLT 4 Rp13.500
11 17931-60G00-000 TANK, WATER RESERVOIR 1 Rp294.500
12 17932-54G00-000 CAP, TANK 1 Rp51.000
13 17933-60B00-000
SUB: 17933B60B00N000		 RUBBER 1 Rp5.500
14 DISCONTINUE
SUB: 17936-78F00-000		 HOSE, RESERVOIR TANK VENT 1 -
15 09352-70111-600 HOSE, WATER RESERVOIR TANK 1 Rp82.500 L:600!170
16 09352-70121-600 HOSE, RDTR TO RSVR TANK 1 Rp155.000 L:600!190
17 17111-62D51-000 FAN, COOLING 1 Rp624.500
18 08316-2005A-000
SUB: 08316-20053-000		 NUT 1 Rp13.000
19 17120-54G00-000 MOTOR ASSY, FAN 1 Rp4.198.000
20 02142-0510A-000
SUB: 02142-05103-000		 SCREW 3 Rp4.000
21 17760-63G00-000 SHROUD 1 Rp1.081.500
22 DISCONTINUE
SUB: 17761-63G00-000		 CLIP 1 -
23 02162-0616A-000
SUB: 09122-86003-000		 SCREW (6X16) 4 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
