AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

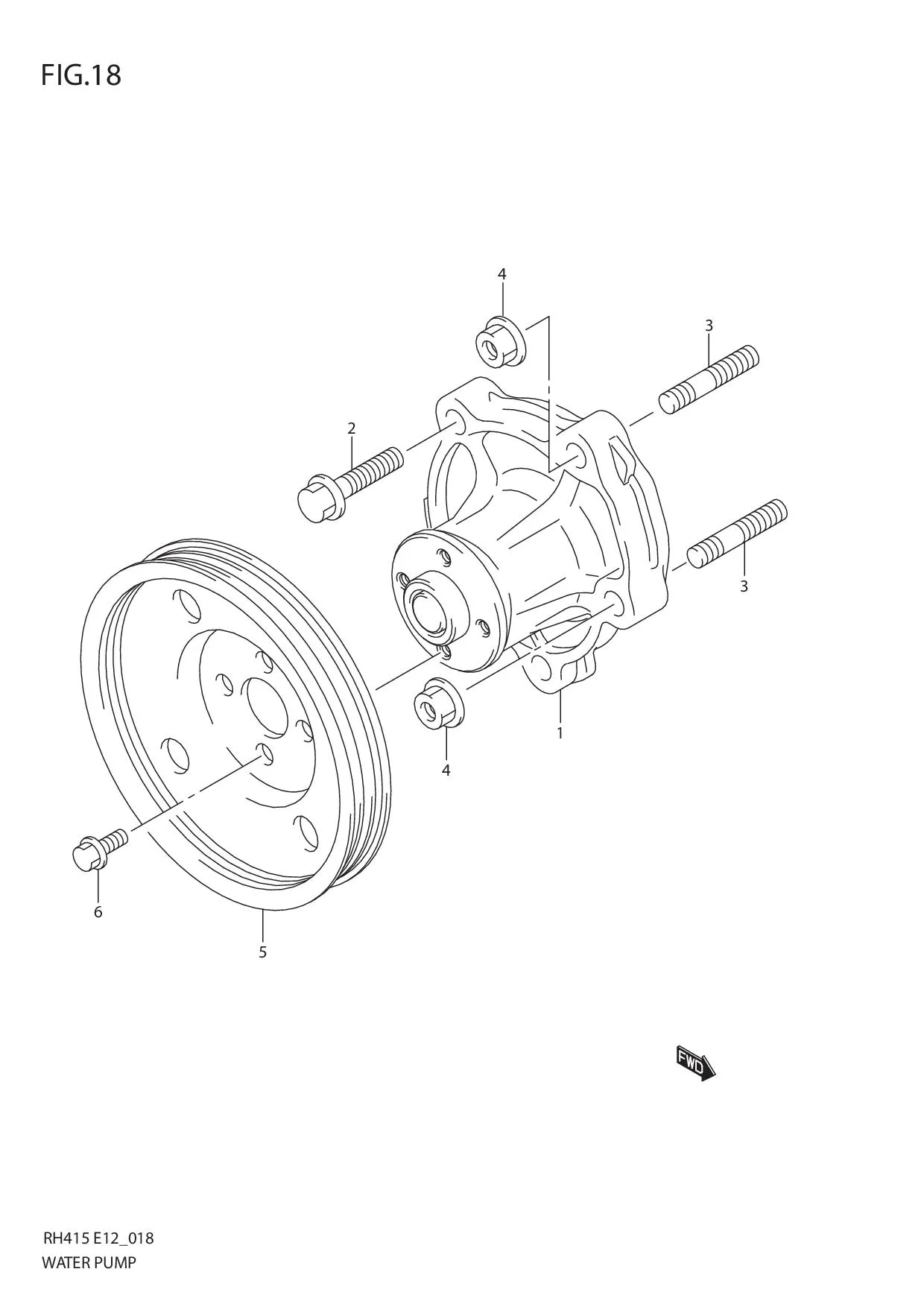

FIG.18 WATER PUMP

FIG.18 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-69G05-000
SUB: 17400-69G00-000		 PUMP ASSY, WATER 1 Rp1.212.000
2 01550-0835B-000
SUB: 01550B08353N000		 BOLT 3 Rp4.500
3 01421-0830A-000
SUB: 01421-08303-000		 STUD BOLT 2 Rp16.500
4 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
5 17511-69G01-000
SUB: 17511-69G00-000		 PULLEY, WATER PUMP 1 Rp308.000
6 01550-0610B-000
SUB: 01550-06103L000		 BOLT 4 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
