AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

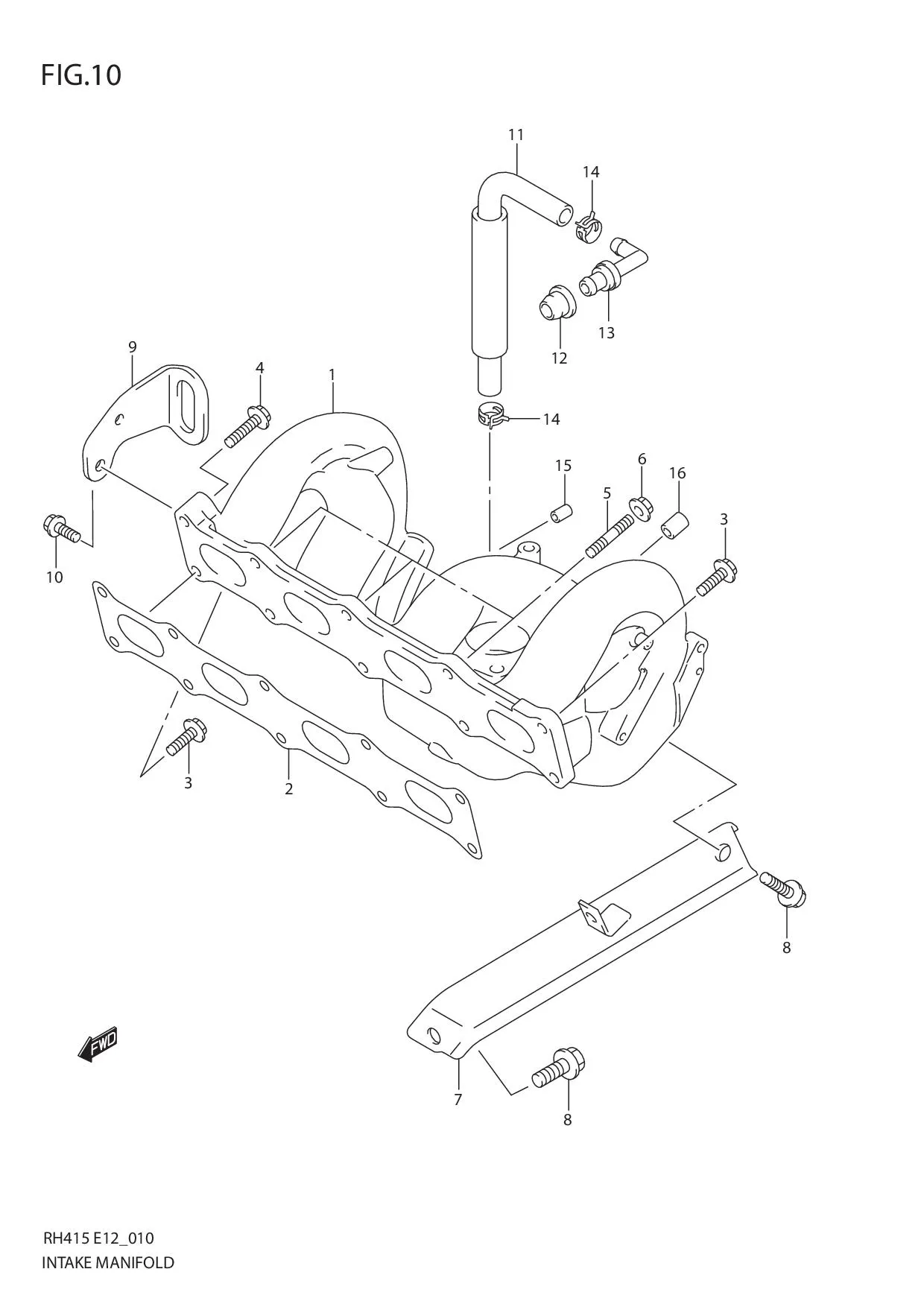

FIG.10 INTAKE MANIFOLD

FIG.10 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 13110-54D02-000		 MANIFOLD, INTAKE 1 -
2 13119-69G00-000 GASKET 1 Rp152.500
3 01550-0825A-000
SUB: 01550-08253-000		 BOLT 6 Rp3.500
4 01550-0835B-000
SUB: 01550B08353N000		 BOLT 1 Rp4.500
5 DISCONTINUE
SUB: 09108-08256-000		 STUD BOLT 3 -
6 08316-1008A-000
SUB: 08316B10083N000		 NUT 3 Rp3.500
7 DISCONTINUE
SUB: 13161-80GA0-000		 STIFFENER, INTAKE MANIFOLD 1 -
8 01550-1020A-000
SUB: 01550-10203-000		 BOLT 2 Rp21.000
9 DISCONTINUE
SUB: 11851-54G01-000		 HOOK, ENGINE 1 -
10 01550-0820A-000
SUB: 01550-08203-000		 BOLT 1 Rp5.500
11 11193-54D01-000 HOSE, PCV 1 Rp119.000
12 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500
13 18118-54D00-000 VALVE, PCV 1 Rp186.500
14 09401-13414-000 CLIP 2 Rp18.000
15 DISCONTINUE
SUB: 09251-05006-000		 CAP 1 -
16 DISCONTINUE
SUB: 09250-04003-000		 PLUG 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
