  5. FIG.50 REAR WHEEL

SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

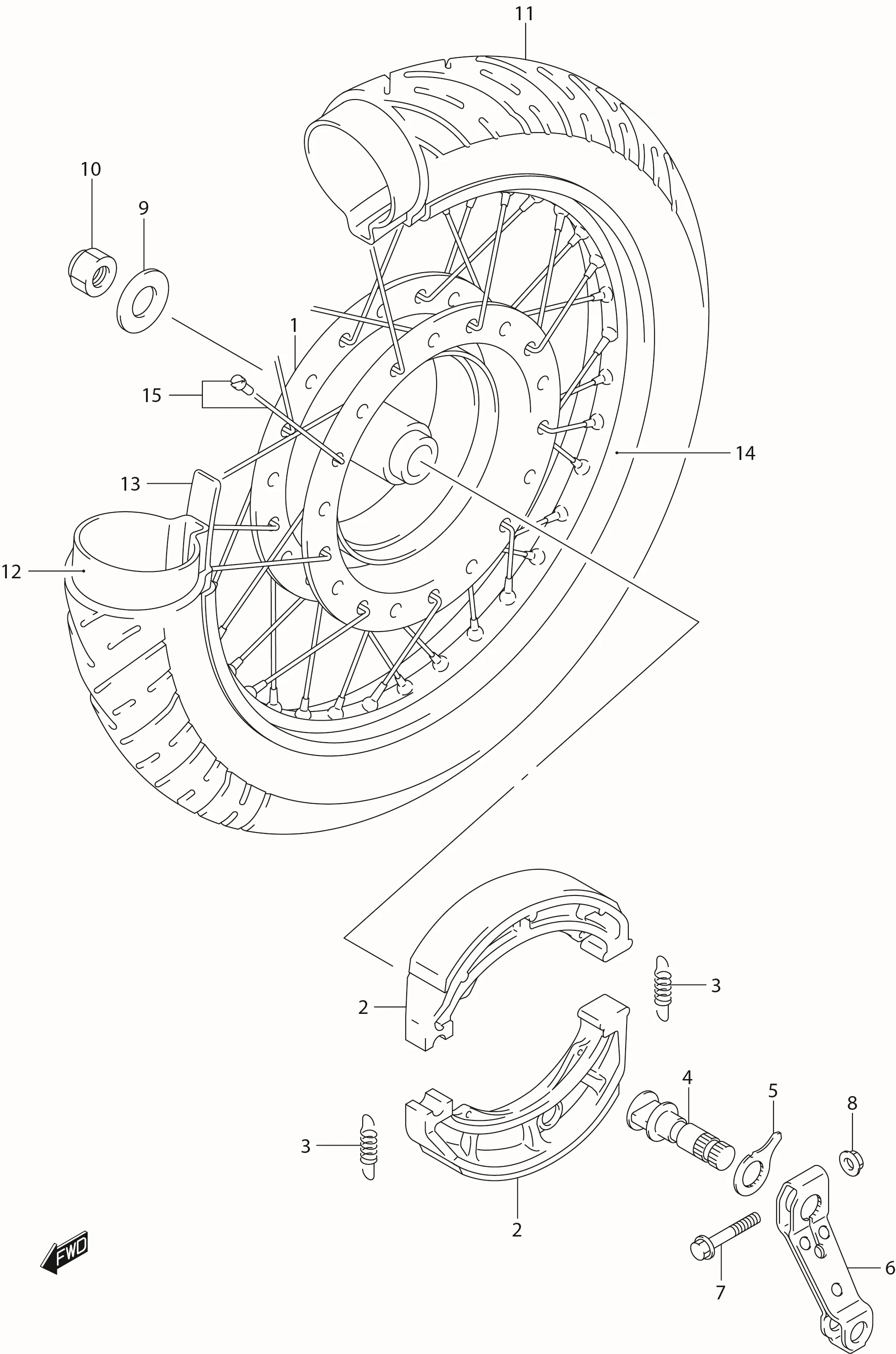

FIG.50 REAR WHEEL

FIG.50 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 64110B46G00N000		 HUB, REAR WHEEL 1 -
2 64410-46G00-000
SUB: 64410B46G00N000		 SHOE, BRAKE 2 Rp89.000
3 55421-09D10-000
SUB: 55421B09D10N000		 SPRING, BRAKE SHOE 2 Rp6.000
4 DISCONTINUE
SUB: 64440B46G00N000		 CAM, REAR BRAKE 1 -
5 DISCONTINUE
SUB: 64492B46G00N000		 PLATE, LINING INDICATOR 1 -
6 DISCONTINUE
SUB: 64451B46G00N000		 LEVER, REAR BRAKE CAM 1 -
7 01550-0635A-000
SUB: 01550B06353N000		 BOLT 1 Rp3.000
8 08316-1006A-000
SUB: 08316B10063N000		 NUT 1 Rp2.000
9 DISCONTINUE
SUB: 09160B16049N000		 WASHER 1 -
10 09159-16020-000
SUB: 09159B16020N000		 NUT 1 Rp13.500
11 DISCONTINUE
SUB: 65110B46G10N000		 TIRE, REAR 1 -
12 65200-46G10-000
SUB: 65200B46G10N000		 TUBE ASSY, WHEEL INNER 1 Rp59.500
13 55261B46G10N000 PROTECTOR, WHEEL INNER TUBE 1 -
14 65311-46G00-000
SUB: 65311B46G10N000		 RIM, RR WHEEL (14X1.60) 1 Rp121.000
15 DISCONTINUE
SUB: 65320B46G10N000		 SPOKE SET, REAR WHEEL 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
