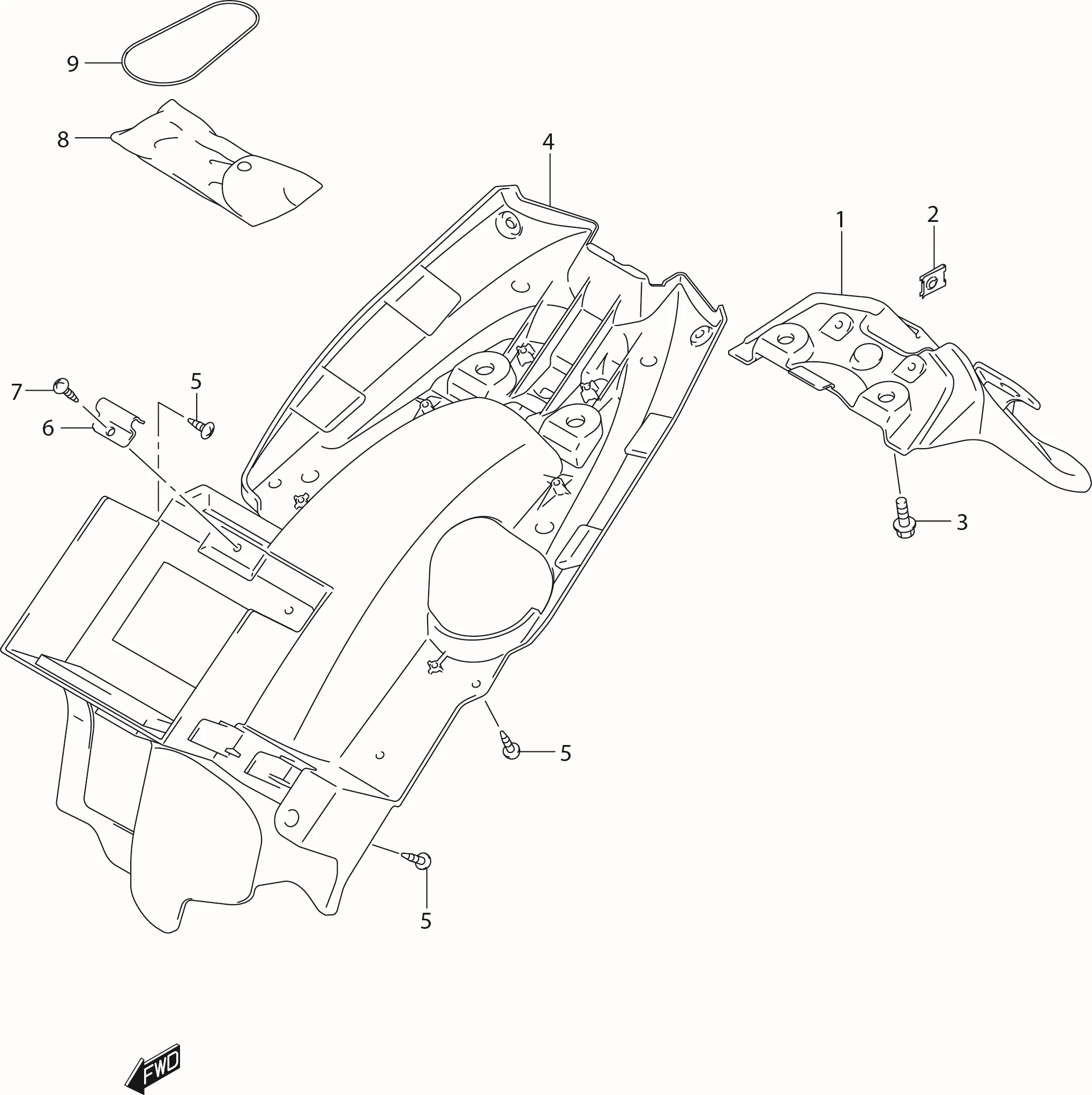

FIG.41 REAR FENDER

FIG.41 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-46G00-000
SUB: 63111B46G00N000		 FENDER, REAR 1 Rp65.500
2 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
3 61361-09G00-000 BOLT 2 Rp4.000
4 63112-46G00-000 FENDER, REAR FRONT 1 Rp70.500
5 03541-0516A-000
SUB: 03541B05163N000		 SCREW 3 Rp3.500
6 DISCONTINUE
SUB: 63185B46G00N000		 BRACKET, BAND 1 -
7 03541-0512A-000
SUB: 03541B05123N000		 SCREW 1 Rp3.500
8 96510-09G01-000
SUB: 96510B09G00N000		 TOOL ASSY 1 Rp36.500
9 47435-46G00-000
SUB: 47435B46G00N000		 BAND, TOOL 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
