SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

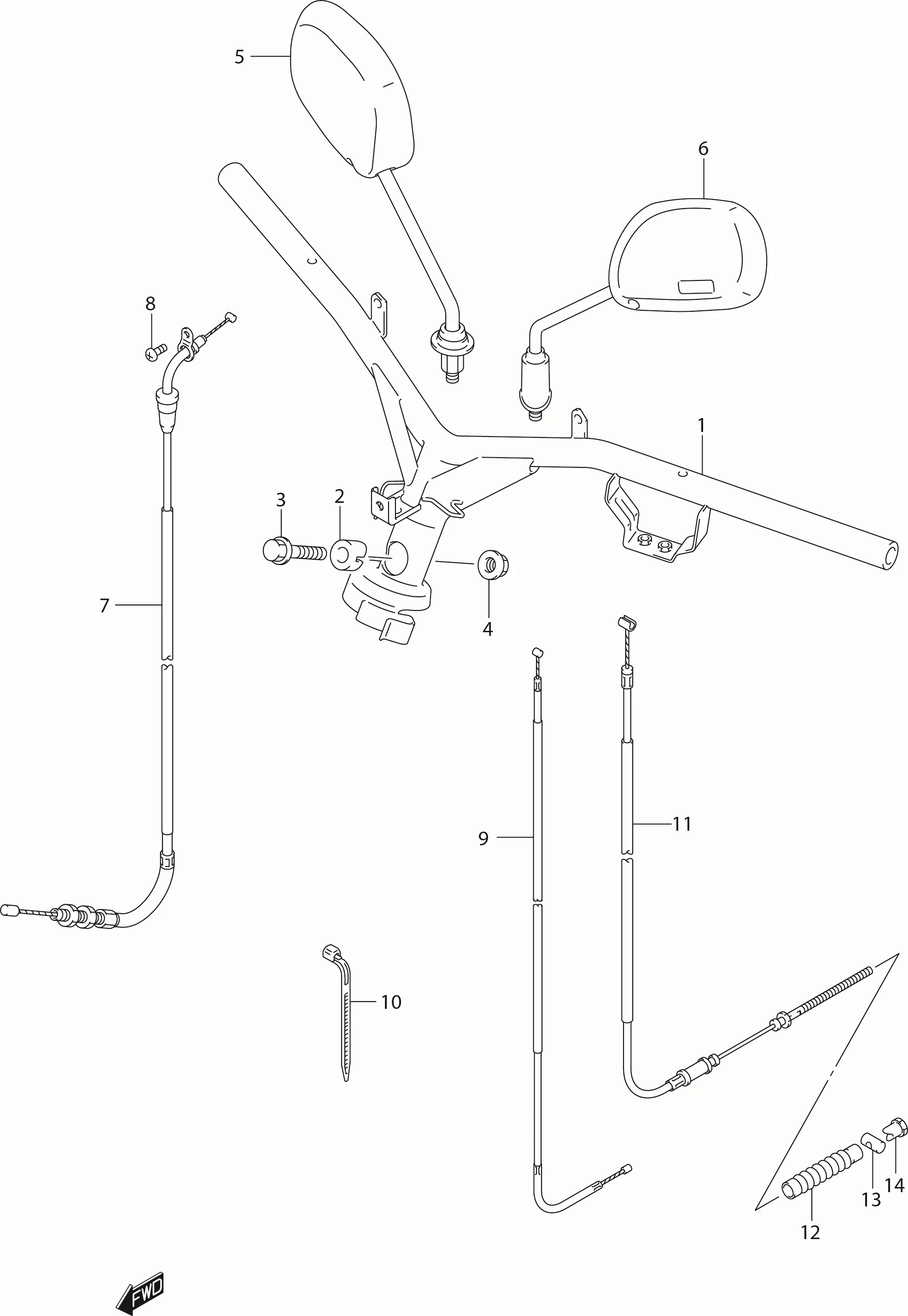

FIG.38 HANDLEBAR

FIG.38 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 56110B46G10N000		 HANDLEBAR 1 -
2 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000
SUB: 09103B10126N000		 BOLT 1 Rp28.500
4 08319-31108-000
SUB: 08319B31108N000		 NUT 1 Rp4.500
5 56500-09G20-000
SUB: 56500B09G20N000		 MIRROR ASSY, REAR VIEW RH 1 Rp76.500
6 56600-09G20-000
SUB: 56600B09G20N000		 MIRROR ASSY, REAR VIEW LH 1 Rp76.500
7 58300-46G40-000
SUB: 58300B46G10N000		 CABLE ASSY, THROTTLE 1 Rp267.000
8 02112-0512A-000
SUB: 02112B05123N000		 SCREW 1 Rp2.500
9 58410-46G30-000
SUB: 58410B46G00N000		 CABLE, STARTER 1 Rp49.000
10 DISCONTINUE
SUB: 09407B25401N000		 CLAMP 1 -
11 58510-46G00-000
SUB: 58510B46G00N000		 CABLE, REAR BRAKE 1 Rp53.500
12 09287-07001-000 SEAL 1 Rp12.000
13 09209-11002-000 PIN 1 Rp7.500
14 09150-06001-000 NUT 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
