SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

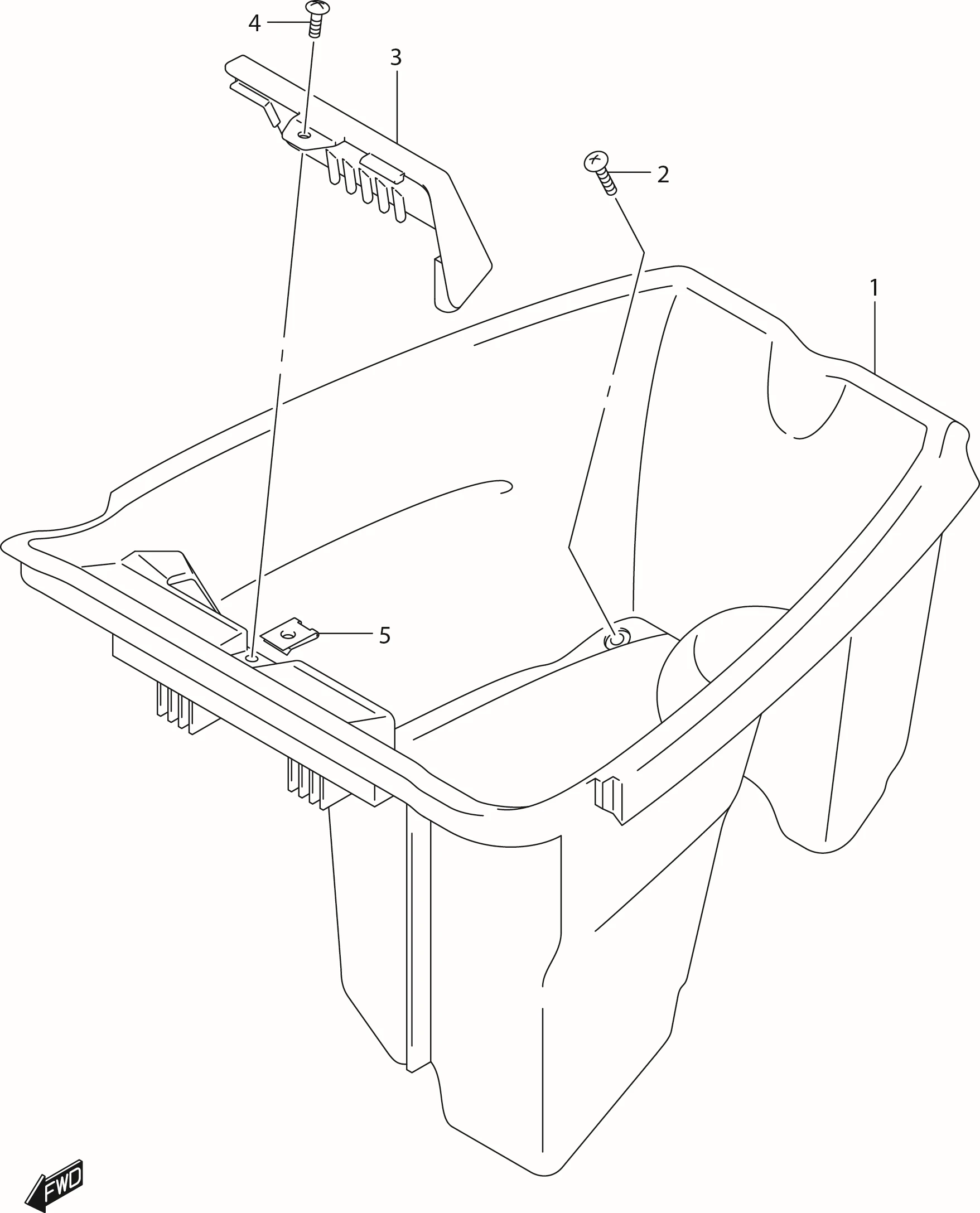

FIG.36 LUGGAGE BOX

FIG.36 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-46G00-000
SUB: 92211B46G00N000		 BOX, LUGGAGE 1 Rp91.500
2 03541-0512A-000
SUB: 03541-05123L000		 SCREW 4 Rp3.500
3 92212-46G00-000
SUB: 92212B46G00N000		 LID, BATTERY 1 Rp30.500
4 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
5 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
