SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

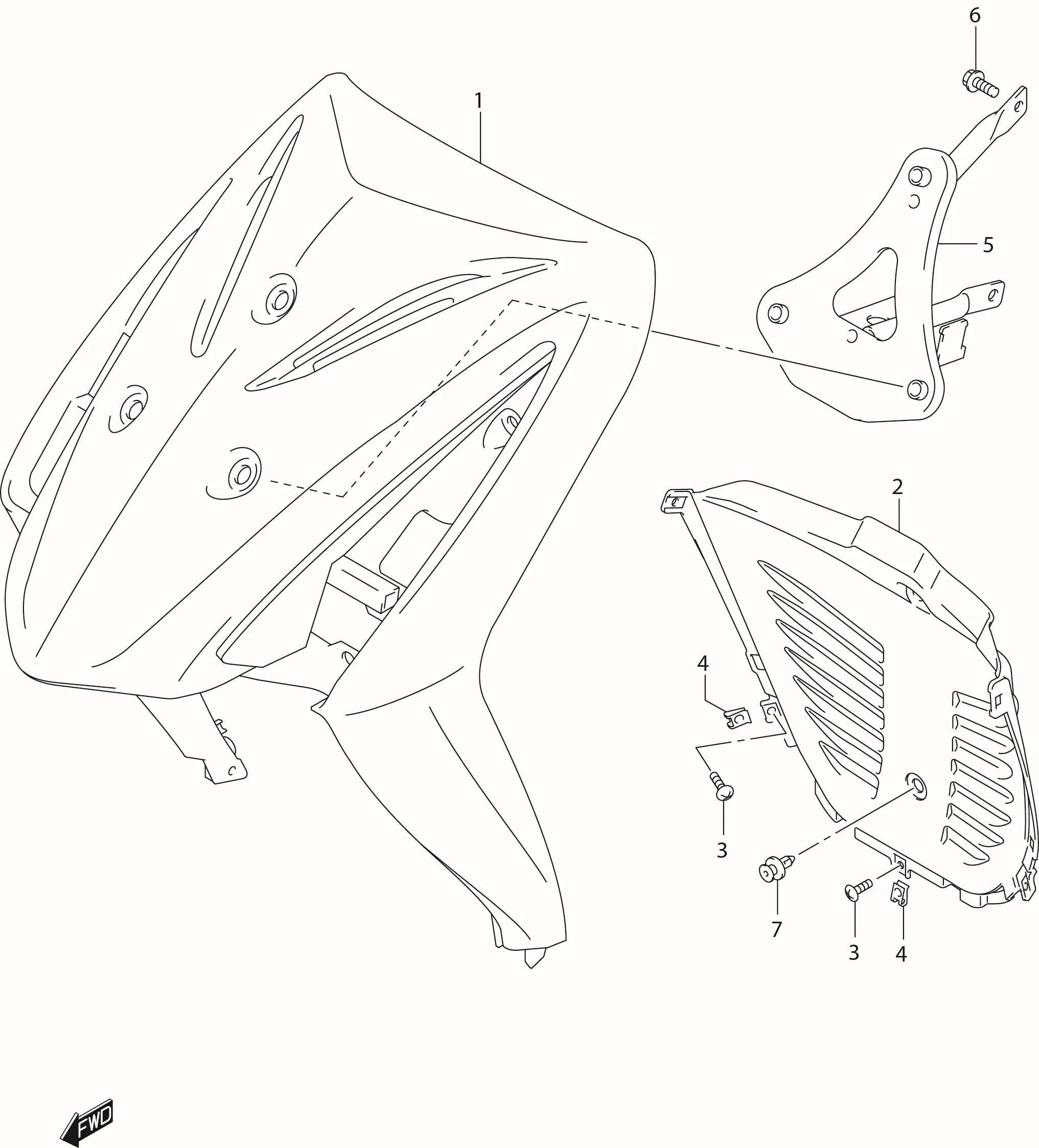

FIG.33 FRONT LEG SHIELD

FIG.33 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111B46G00N000 SHIELD, LEG FRONT 1 -
2 48137-46G00-000
SUB: 48137B46G00N000		 LEG, LOWER FRONT 1 Rp66.500
3 03541-0516A-000
SUB: 03541B05163N000		 SCREW 7 Rp3.500
4 09148-05038-000
SUB: 09148B05038N000		 NUT 9 Rp4.000
5 DISCONTINUE
SUB: 48150B46G00N000		 BRACE 1 -
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
7 DISCONTINUE
SUB: 09409B07336N000		 CLIP 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
