SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

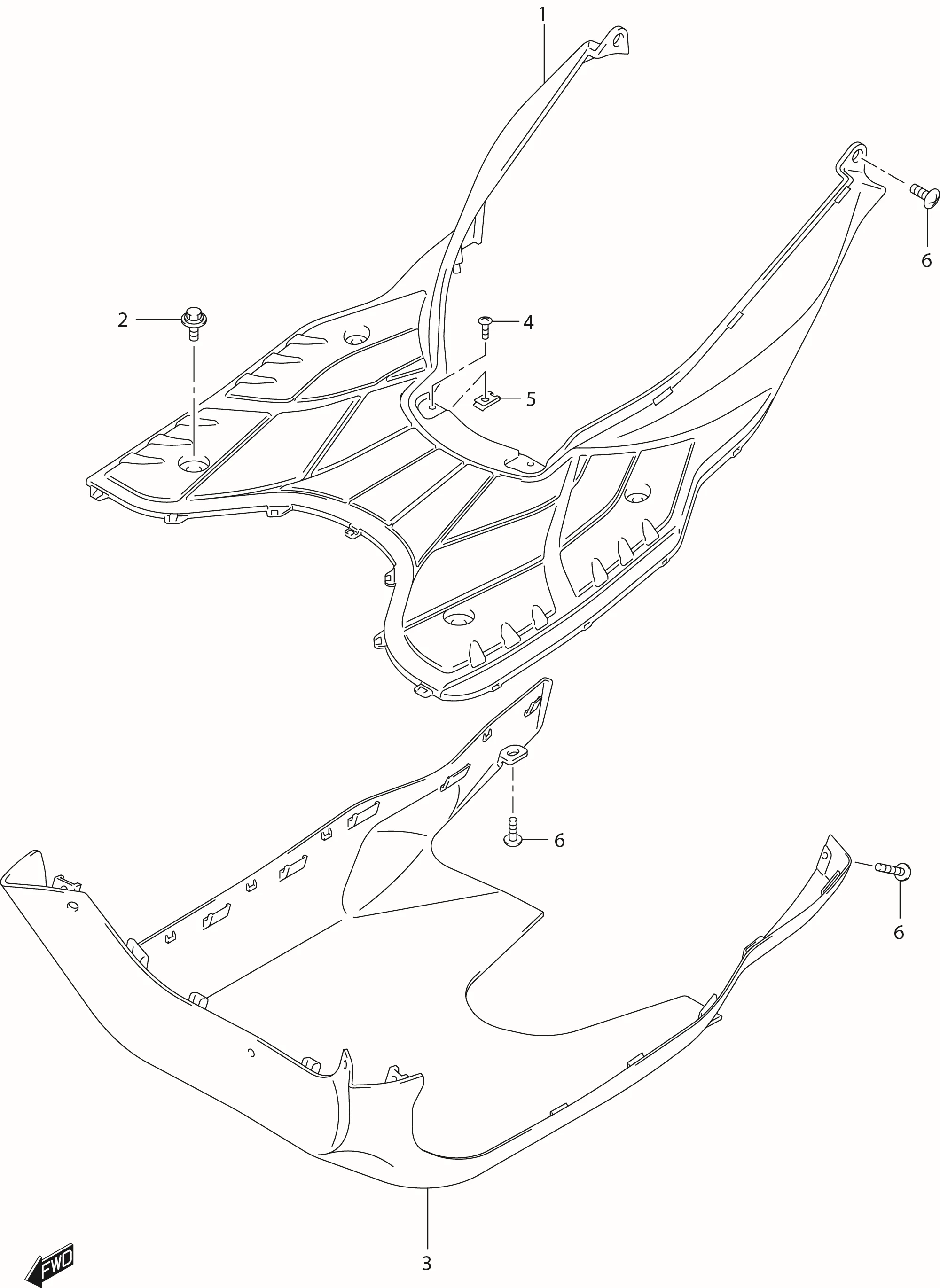

FIG.34 REAR LEG SHIELD

FIG.34 REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-46G00-000
SUB: 48121B46G00N000		 SHIELD, LEG REAR 1 Rp64.000
2 09113-06008-000
SUB: 09113B06008N000		 BOLT 4 Rp7.000
3 48138B46G00N000 SHIELD, LEG LOWER 1 -
4 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
5 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
6 03541-0516A-000
SUB: 03541B05163N000		 SCREW 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
