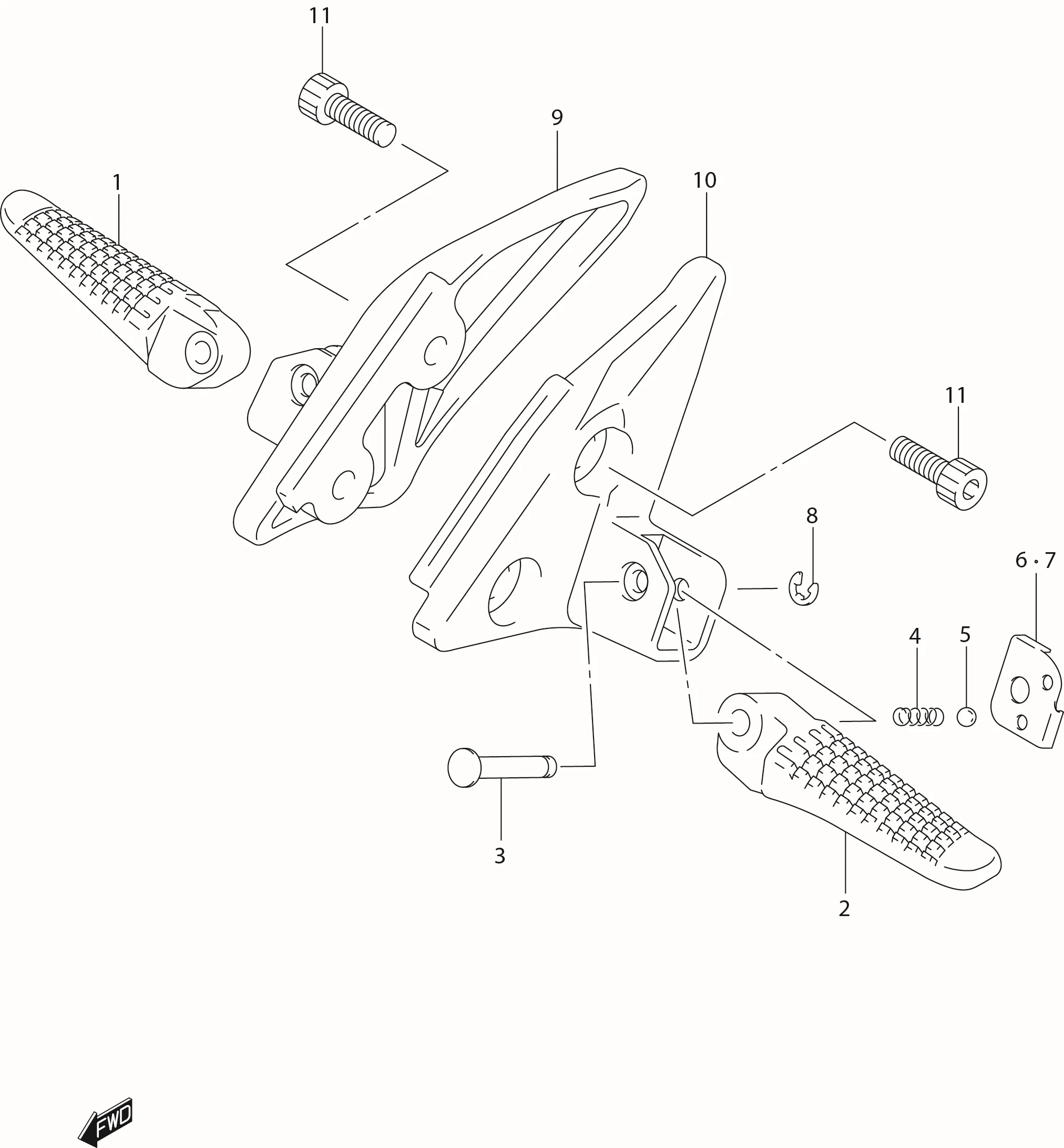

FIG.30 FOOTREST

FIG.30 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43611-25G01-000
SUB: 43611B25G00N000		 BAR, PILLION RH 1 Rp21.500
2 43621-25G01-000
SUB: 43621B25G00N000		 BAR, PILLION LH 1 Rp21.500
3 09208-06003-000
SUB: 09208B06003N000		 PIN 2 Rp5.500
4 09440-05005-000
SUB: 09440B05005N000		 SPRING 2 Rp6.500
5 06112-07004-000
SUB: 06112B07004N000		 BALL 2 Rp3.000
6 43816-33E21-000
SUB: 43816B33E21N000		 PLATE, RH 1 Rp5.500
7 43826-33E22-000
SUB: 43826B33E22N000		 PLATE, LH 1 Rp5.000
8 08332-1104A-000
SUB: 08332B11043N000		 E RING 2 Rp9.500
9 DISCONTINUE
SUB: 43811B46G00N000		 BRACKET, PILLION RH 1 -
10 DISCONTINUE
SUB: 43821B46G00N000		 BRACKET, PILLION LH 1 -
11 43812-25G00-000
SUB: 43812B25G00N000		 BOLT 4 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
