SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

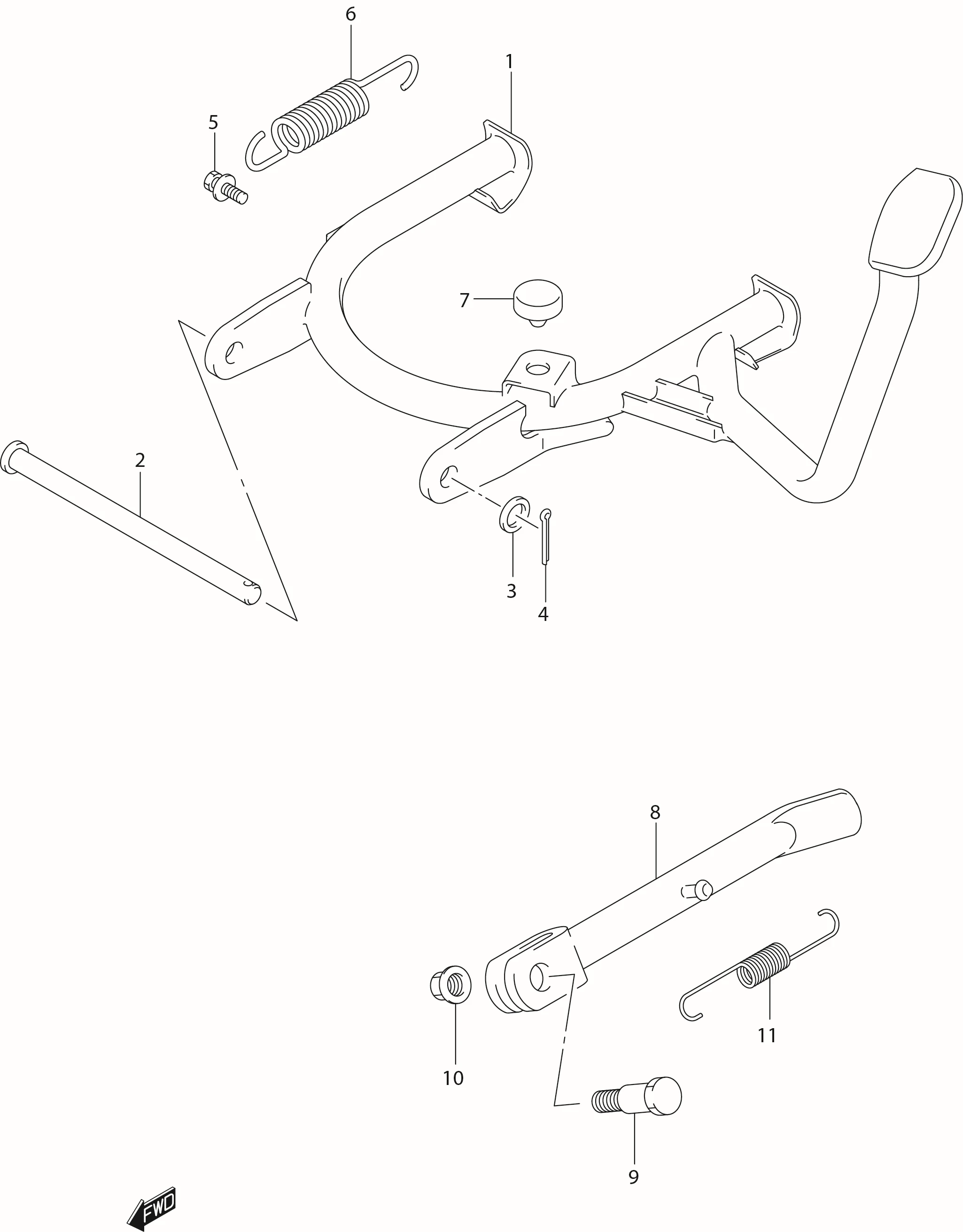

FIG.29 STAND

FIG.29 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-46G00-000
SUB: 42100B46G00N000		 STAND, CENTER 1 Rp190.500
2 42211-16F11-000
SUB: 42211B16F11N000		 SHAFT 1 Rp13.500
3 08322-0110B-000
SUB: 08322B01103N000		 WASHER 1 Rp4.500
4 04111-3020A-000
SUB: 04111B30208N000		 COTTER PIN 1 Rp2.500
5 42251-46G00-000 BOLT, SPRING 1 -
6 09443-17006-000
SUB: 09443B17006N000		 SPRING 1 Rp16.000
7 09321B10002N000 CUSHION 1 -
8 42310-46G00-000
SUB: 42310B46G00N000		 STAND, PROP 1 Rp58.500
9 42341-09G01-000
SUB: 42341B09G00N000		 BOLT 1 Rp5.000
10 08319-31108-000
SUB: 08319B31108N000		 NUT 1 Rp4.500
11 09443B14022N000 SPRING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
