SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

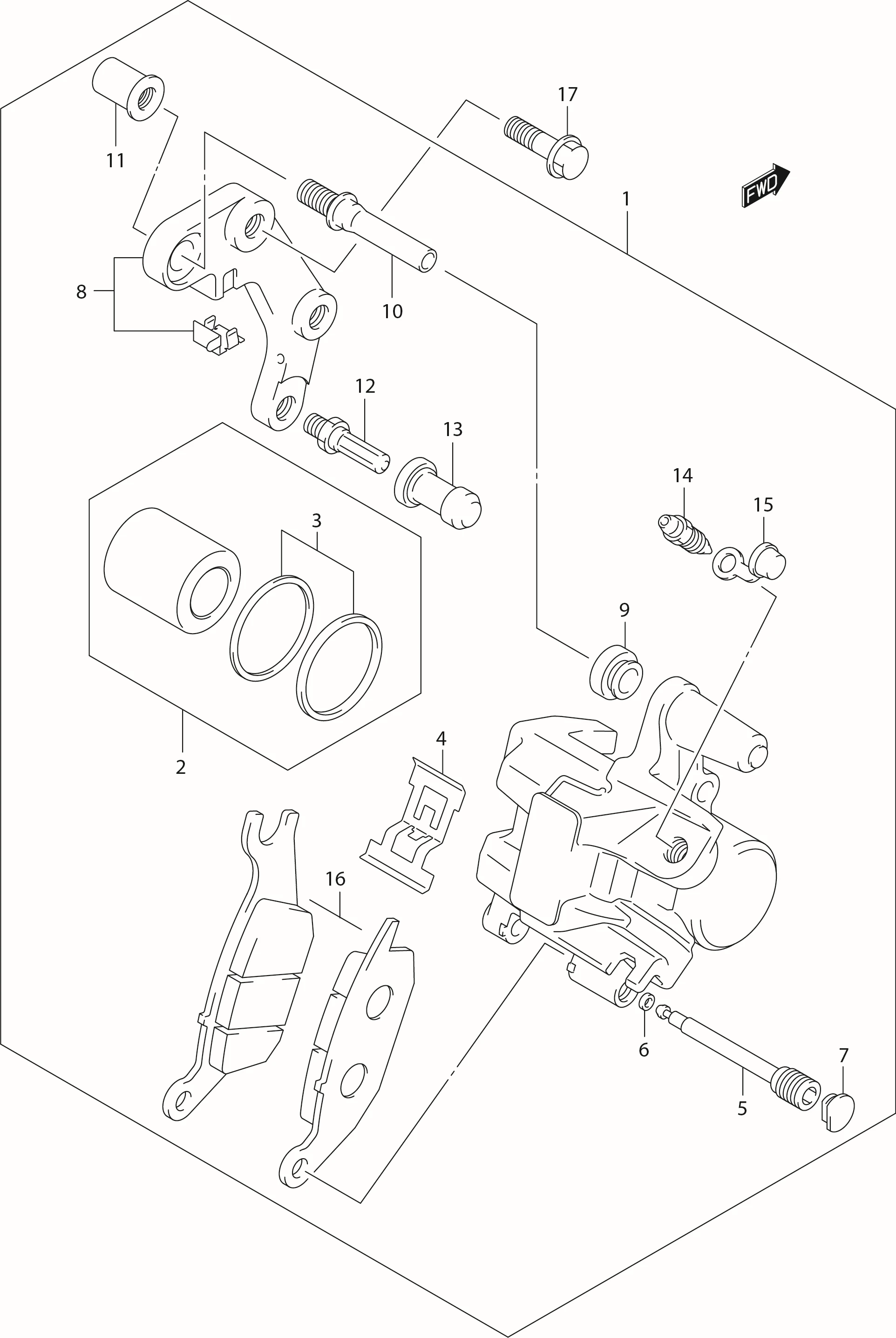

FIG.47 FRONT CALIPER

FIG.47 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 59100B46G10N000		 CALIPER ASSY, FRONT 1 -
2 69100-46800-000
SUB: 69100B46800N000		 ?PISTON SET 1 Rp90.000
3 59100-46800-000
SUB: 59100B46800N000		 ??SEAL SET, PISTON 1 Rp36.500
4 69115-20G00-000
SUB: 69115B20G00N000		 ?SPRING, PAD 1 Rp26.000
5 69345-20G00-000
SUB: 69345B20G00N000		 ?PIN, HANGER 1 Rp25.000
6 59145-46G00-000
SUB: 59145B46G00N000		 ?RING, STOPPER 1 Rp4.000
7 59146-20G00-000
SUB: 59146B20G00N000		 ?PLUG, PIN 1 Rp5.500
8 DISCONTINUE
SUB: 59720B46G00N000		 ?BRACKET 1 -
9 59303-14500-000
SUB: 59303-14500L000		 ?BOOT 1 Rp12.500
10 59387-46G00-000
SUB: 59387B46G00N000		 ?PIN, BOLT 1 Rp23.500
11 59388-00B20-000
SUB: 59388B00B20N000		 ?NUT 1 Rp28.500
12 59382-14500-000
SUB: 59382B14500N000		 ?BOLT 1 Rp13.500
13 59386-13A00-000
SUB: 59386-13A00L000		 ?BOOT 1 Rp14.000
14 59121-01A00-000
SUB: 59121-01A00L000		 ?BLEEDER 1 Rp14.500
15 59122-01A00-000
SUB: 59122-01A00L000		 ?CAP, BLEEDER 1 Rp3.000
16 69100-46800-000
SUB: 69100B46800N000		 ?PAD A 1 Rp90.000
17 09103-08107-000
SUB: 09103B08107N000		 BOLT 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
