SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

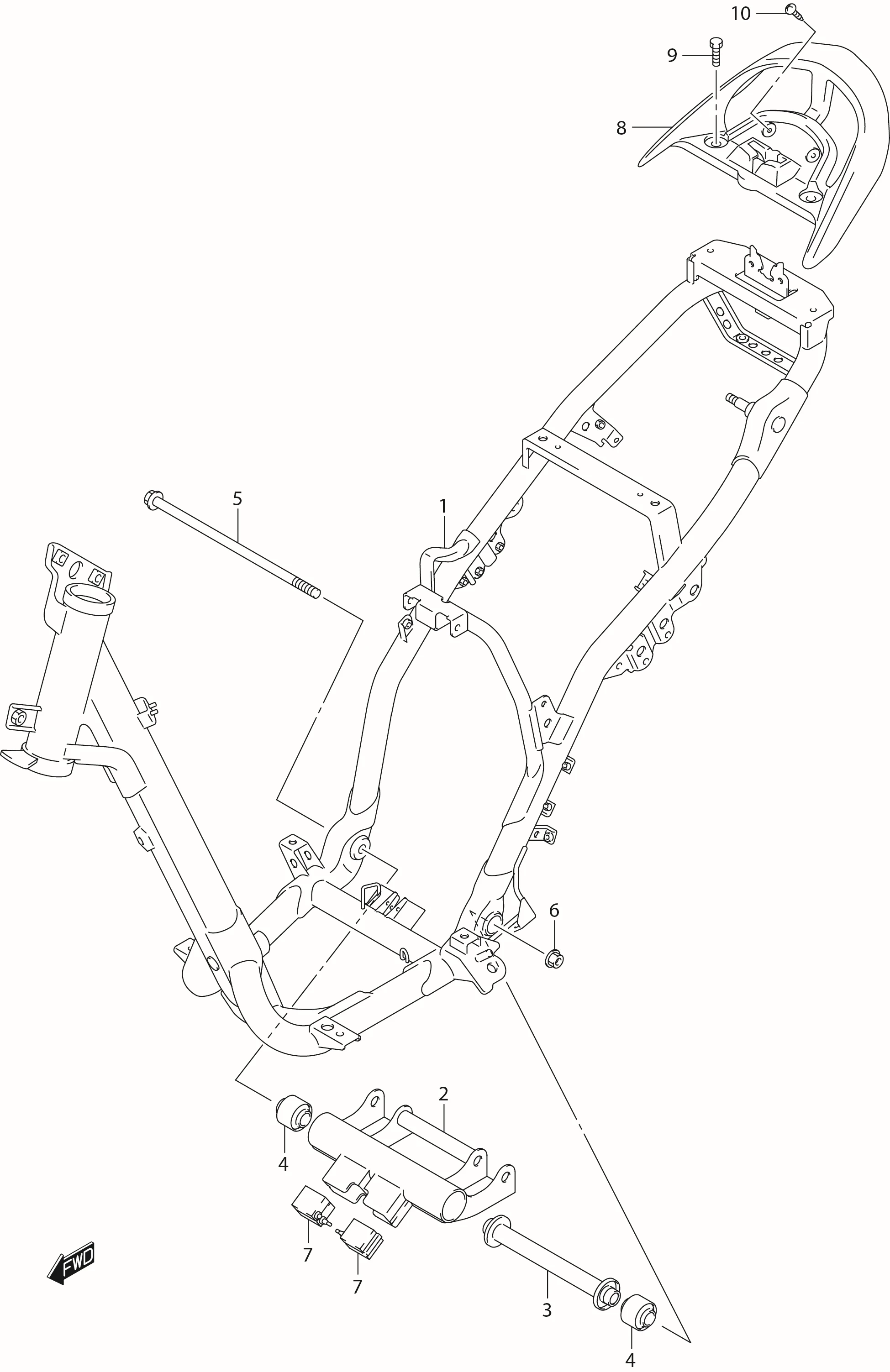

FIG.28 FRAME

FIG.28 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 41100B46G10N000		 FRAME 1 -
2 DISCONTINUE
SUB: 41180B46G00N000		 BRACKET 1 -
3 DISCONTINUE
SUB: 41170B46G00N000		 SPACER 1 -
4 09319-12060-000 BUSH 2 Rp65.000
5 09103-12085-000 BOLT 1 Rp64.000
6 08319-31123-000
SUB: 08319B31123N000		 NUT 1 Rp8.500
7 41185-46G00-000
SUB: 41185B46G00N000		 CUSHION 2 Rp5.000
8 DISCONTINUE
SUB: 46210B46G00N000		 HANDLE, PILLION 1 -
9 01500-0825B-000
SUB: 01500-08253-000		 BOLT 2 Rp3.000
10 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
