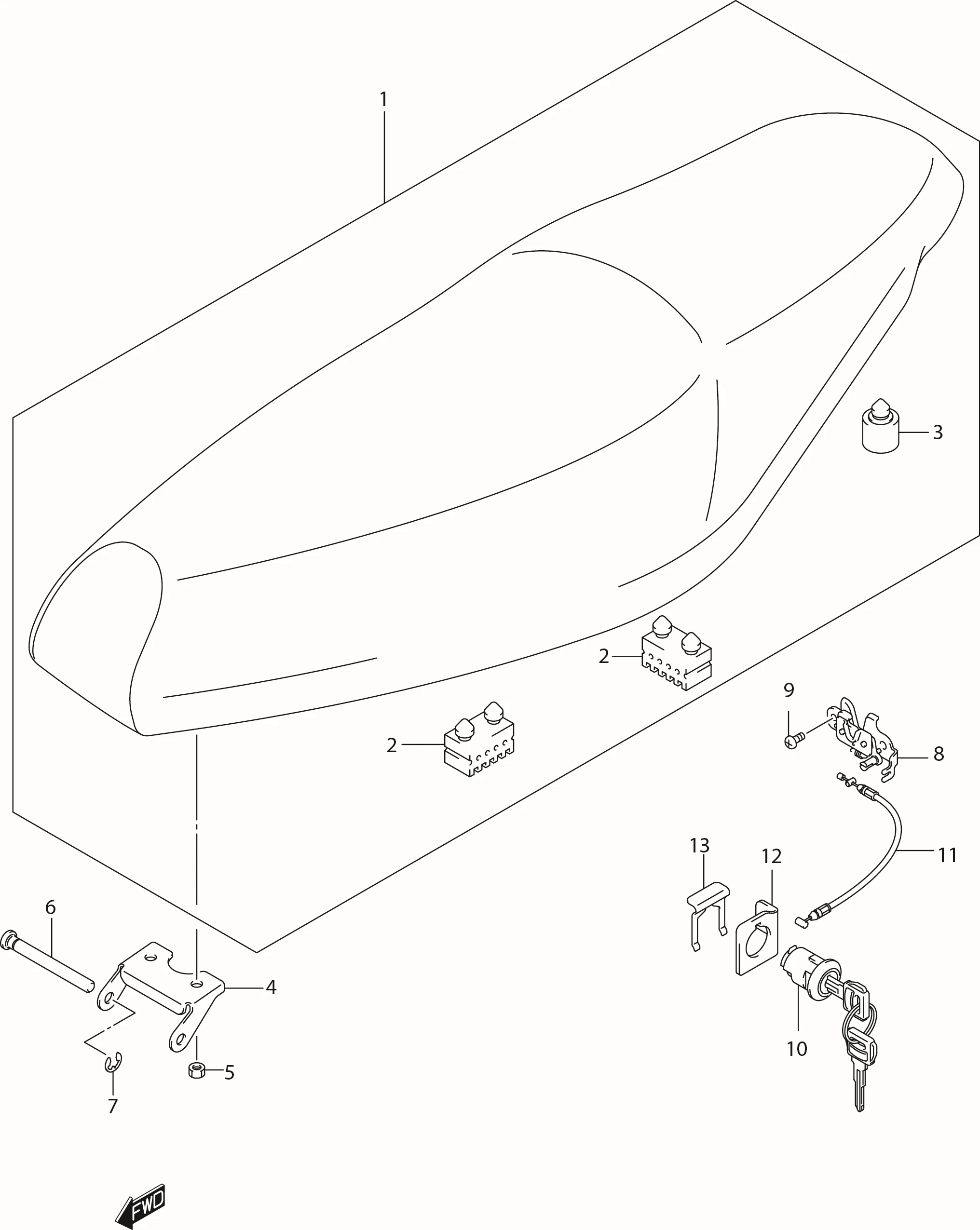

FIG.43 SEAT

FIG.43 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100B46G10N000 SEAT ASSY 1 -
2 45149B09G0N-000 ?CUSHION, SEAT MOUNT FR 4 -
3 45149-35410-000
SUB: 45149-35410L000		 ?CUSHION, SEAT MOUNT RR 2 Rp4.500
4 DISCONTINUE
SUB: 45285B46G00N000		 BRACKET, SEAT HINGE UPPER 1 -
5 08310-0006B-000
SUB: 08310-00063-000		 NUT, SEAT HINGE UPPER 2 Rp4.500
6 45215B09G00N000 PIN, SEAT HINGE 1 -
7 08332-1106A-000
SUB: 08332B11066N000		 E-RING, SEAT HINGE 1 Rp8.500
8 45700-09G30-000
SUB: 45700B09G01N000		 BRACKET, STRIKER SUPPORT 1 Rp33.500
9 02112B06103N000 SCREW, STRIKER SUPPORT 2 -
10 95700-09G50-000
SUB: 95700B09G30N000		 LOCK ASSY, SEAT 1 Rp59.500
11 45280B46G00-000 CABLE, SEAT LOCK 1 -
12 45288-20G00-000
SUB: 45288B20G00N000		 GUIDE, SEAT LOCK CABLE 1 Rp4.500
13 45289B09G10-000 PLATE, SEAT LOCK ASSY 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
