SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

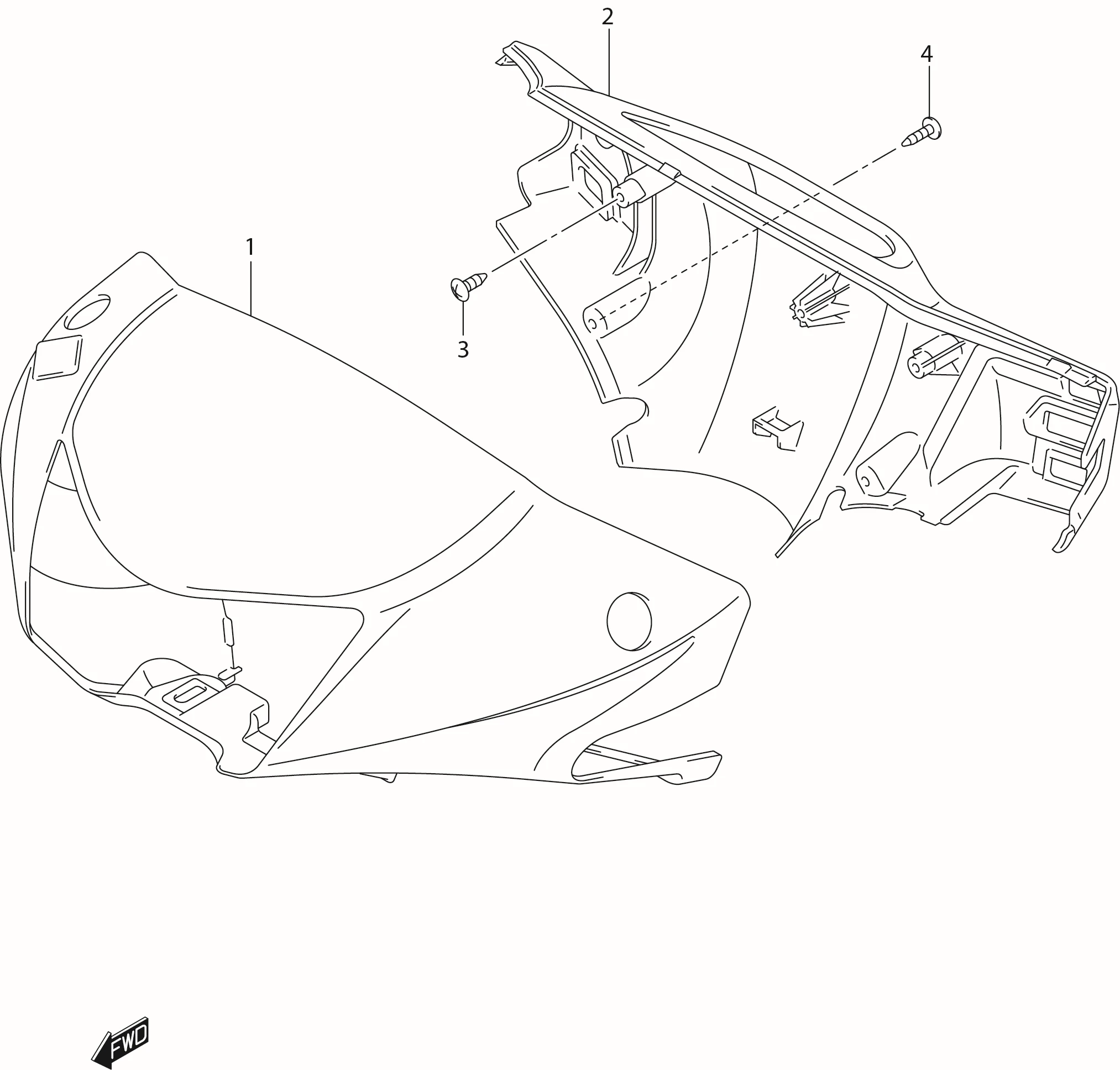

FIG.39 HANDLE COVER

FIG.39 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 56311B46G10N000 COVER, HANDLE FRONT 1 -
2 DISCONTINUE
SUB: 56321B46G10N000		 COVER, HANDLE REAR 1 -
3 03511-0516A-000
SUB: 03511B05163N000		 SCREW, UPPER 2 Rp5.500
4 03541-0416B-000
SUB: 03541B04163N000		 SCREW, SIDE 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
