SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

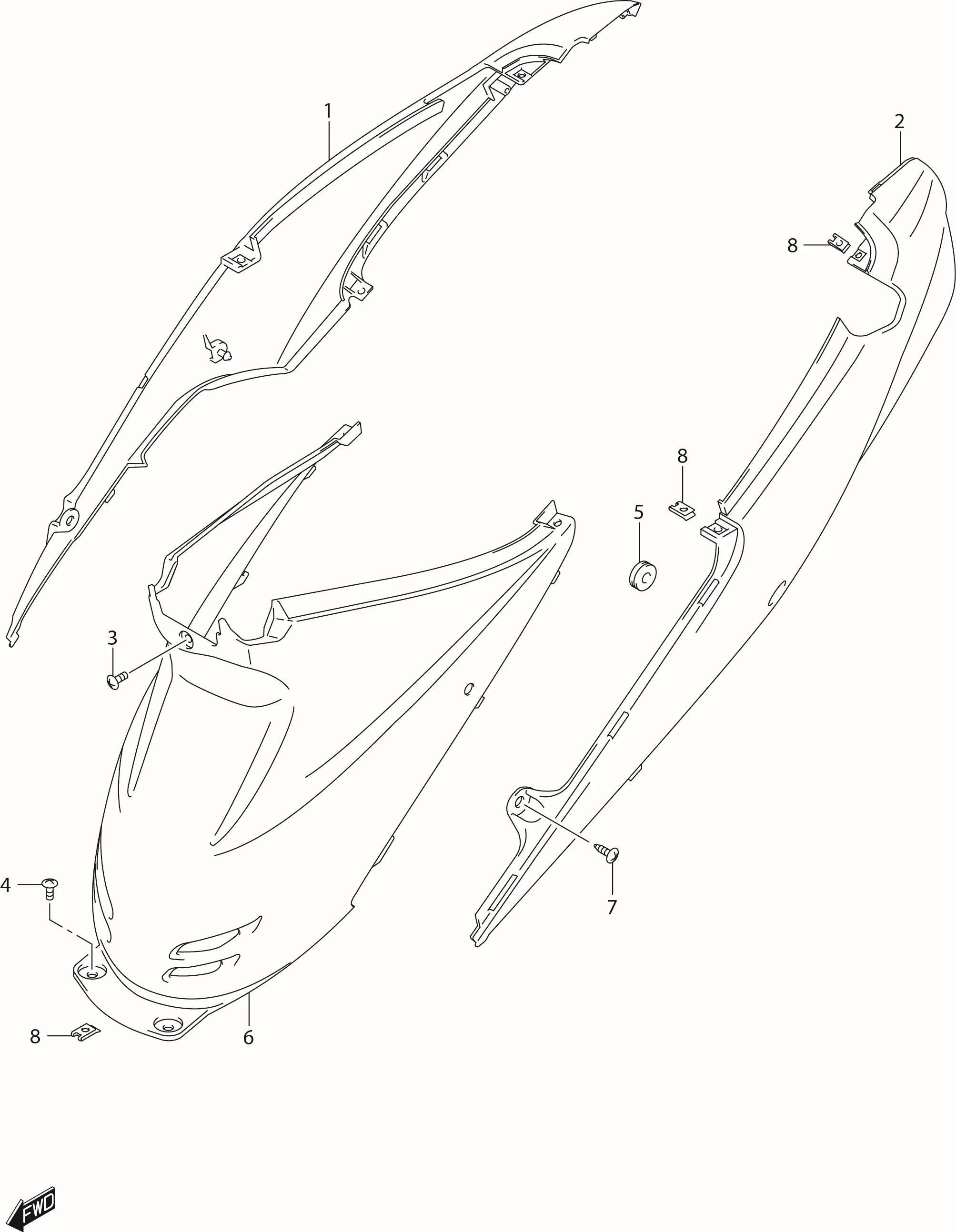

FIG.32 FRAME COVER

FIG.32 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111B46G00N000 COVER, RH 1 -
2 47211B46G00N000 COVER, LH 1 -
3 02142-0616B-000
SUB: 02142B06163N000		 SCREW, UPPER 1 Rp5.500
4 03541-0516A-000
SUB: 03541-05163-000		 SCREW, LOWER 2 Rp3.500
5 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
6 DISCONTINUE
SUB: 47311B46G00N000		 COVER, FRONT 1 -
7 03541-0516A-000
SUB: 03541B05163N000		 SCREW 4 Rp3.500
8 09148-05038-000
SUB: 09148B05038N000		 NUT 4 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
