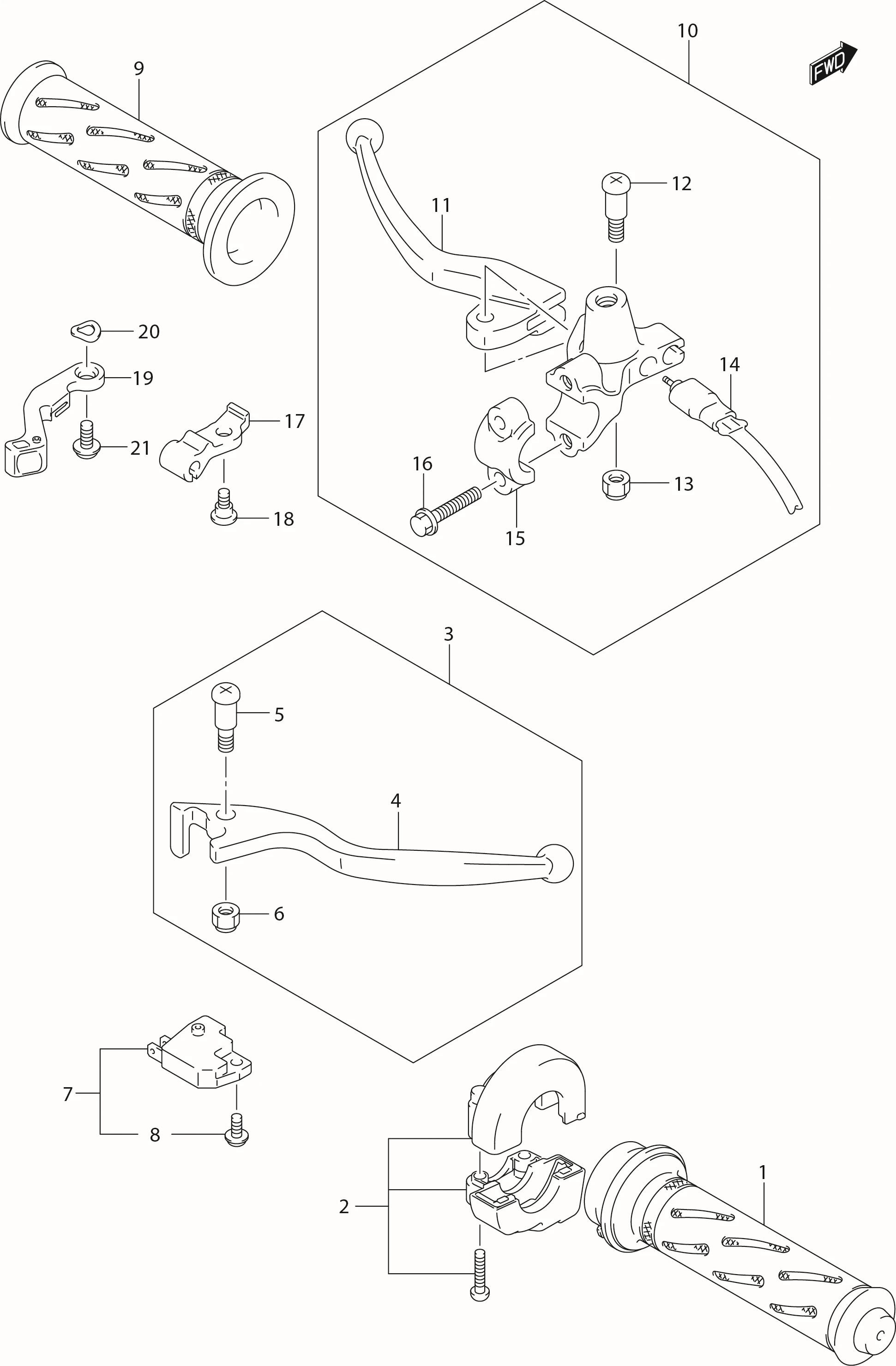

FIG.40 HANDLE LEVER

FIG.40 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09G01-000
SUB: 57110B09G00N000		 GRIP, THROTTLE 1 Rp43.500
2 57100-09G01-000
SUB: 57100B09G01N000		 CASE ASSY, THROTTLE 1 Rp49.000
3 DISCONTINUE
SUB: 57300B46G30N000		 LEVER ASSY, RH 1 -
4 57421-46G10-000
SUB: 57421B46G10N000		 ?LEVER 1 Rp38.000
5 DISCONTINUE
SUB: 57431B29C10N000		 ?BOLT, PIVOT 1 -
6 DISCONTINUE
SUB: 08319B21063N000		 ?NUT 1 -
7 57460-41H00-000
SUB: 57460B17C01N000		 SWITCH ASSY, STOP 1 Rp69.500
8 DISCONTINUE
SUB: 57465B17C00N000		 ?SCREW 1 -
9 57211-09G00-000
SUB: 57211B09G00N000		 GRIP, LH 1 Rp30.000
10 57500-46G70-000
SUB: 57500B46G10N000		 LEVER ASSY, LH 1 Rp537.500
11 57621-46G10-000
SUB: 57621B46G10N000		 ?LEVER 1 Rp135.000
12 DISCONTINUE
SUB: 57431B09G10N000		 ?BOLT, LEVER 1 -
13 DISCONTINUE
SUB: 08319B21063N000		 ?NUT 1 -
14 57470-10J40-000
SUB: 57470B09G00N000		 ?SWITCH ASSY, BRAKE 1 Rp46.500
15 DISCONTINUE
SUB: 59671B09G00N000		 ?HOLDER 1 -
16 01547-0625A-000
SUB: 01547B06253N000		 ?BOLT, HOLDER 2 Rp6.500
17 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, STARTER CABLE 1 -
18 09139-05057-000
SUB: 09139B05057N000		 SCREW 1 Rp6.500
19 58721-23F01-000
SUB: 58721B23F00N000		 LEVER, STARTER 1 Rp10.500
20 DISCONTINUE
SUB: 09164B07001N000		 WASHER 1 -
21 02112-7516A-000
SUB: 02112B75163N000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
