SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

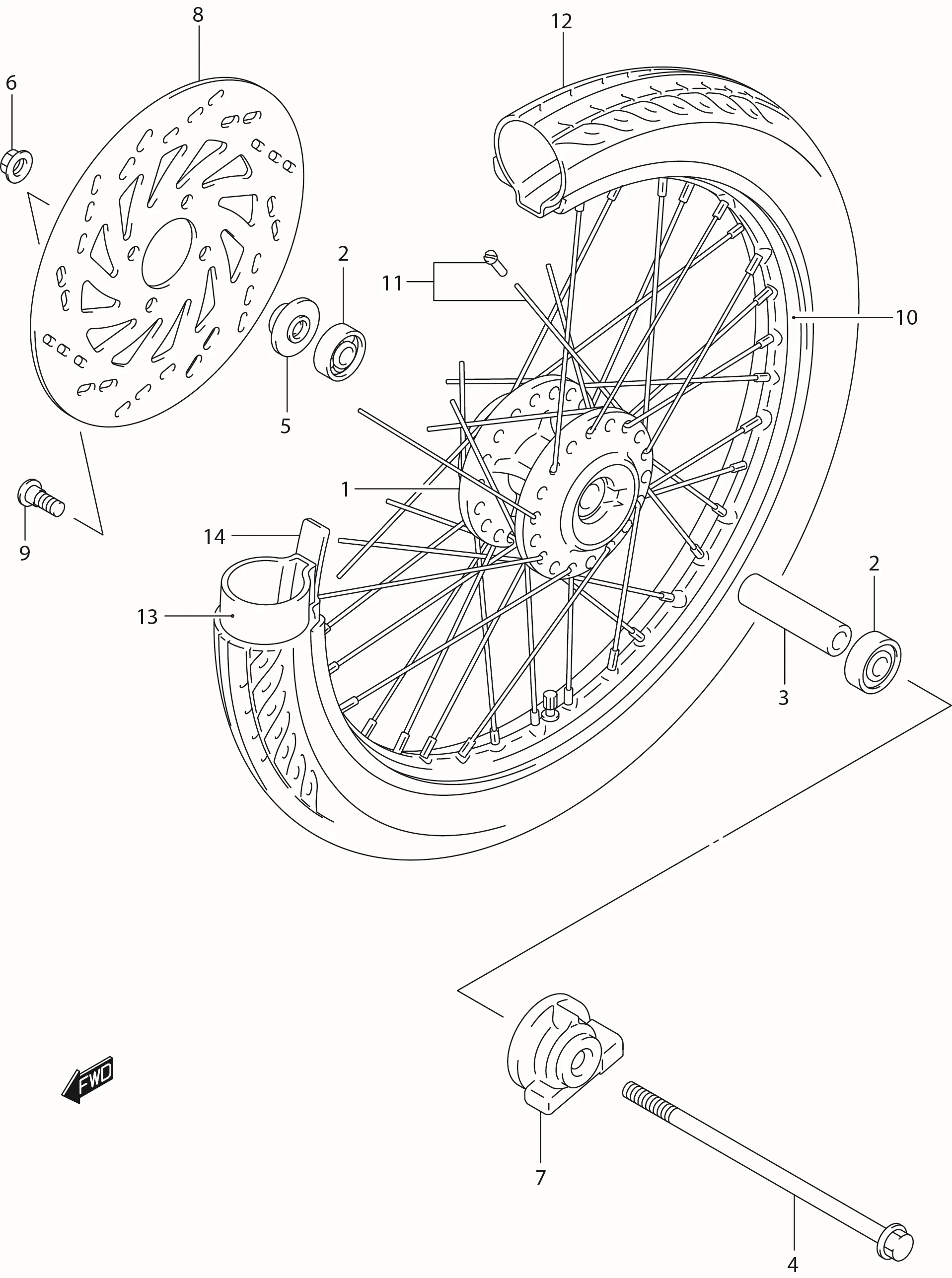

FIG.46 FRONT WHEEL

FIG.46 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 54111B09G20N000		 HUB, FRONT WHEEL 1 - PURCHASE LOCALLY
2 08123-63007-000
SUB: 08123B63007N000		 BEARING 2 Rp32.500
3 DISCONTINUE
SUB: 09180B10148N000		 SPACER, FRONT HUB (10.2X16X51) 1 -
4 54711-13H00-000
SUB: 54711B04701N000		 AXLE, FRONT 1 Rp13.000
5 54750-46100-000
SUB: 54750B46100N000		 SPACER, FRONT AXLE RH 1 Rp12.500
6 08319-31108-000
SUB: 08319B31107N000		 NUT 1 Rp4.500
7 DISCONTINUE
SUB: 54600B46G00N000		 BOX ASSY, SPEEDOMETER GEAR 1 -
8 59211-09G20-000
SUB: 59211B09G20N000		 DISC, FRONT BRAKE 1 Rp216.000
9 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 4 Rp7.000
10 55311-46G10-000
SUB: 55311B46G10N000		 RIM, FRONT WHEEL (14X1.40) 1 Rp99.000
11 55320B46G10N000 SPORK SET, FRONT WHEEL 1 -
12 55110-46G10-000
SUB: 55110B46G10N000		 TIRE, FRONT 1 Rp240.500
13 55200-46G10-000
SUB: 55200B46G10N000		 TUBE ASSY, WHEEL INNER 1 Rp64.500
14 55261B46G10N000 PROTECTOR, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
