SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

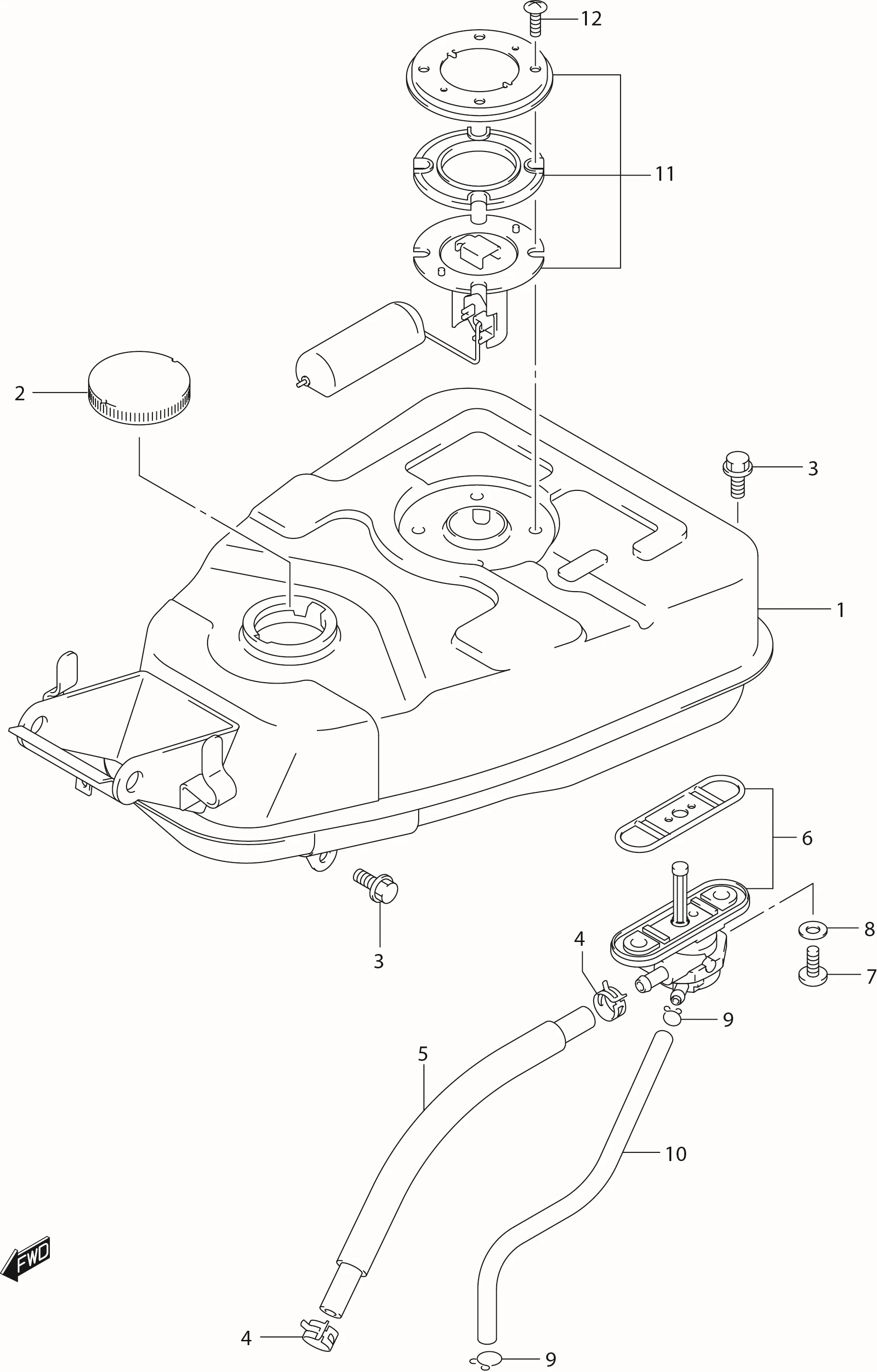

FIG.31 FUEL TANK

FIG.31 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 44110B46G00N000		 TANK, FUEL 1 -
2 44210-35014AS01 CAP ASSY, FUEL 1 Rp21.500
3 DISCONTINUE
SUB: 01550B06123N000		 BOLT 4 -
4 09401-08401-000 CLIP 2 Rp10.500
5 44422-46G01-000
SUB: 44422B46G00N000		 HOSE, FUEL 1 Rp10.500
6 44300-46G01-000
SUB: 44300B46G00N000		 COCK ASSY, FUEL 1 Rp364.500
7 02142-0616B-000
SUB: 02142B06163N000		 SCREW, COCK 2 Rp5.500
8 09168-06026-000 GASKET 2 Rp20.000
9 09401-09403-000 CLIP 2 Rp3.500
10 44425-46G10-000
SUB: 44425B46G00N000		 HOSE, VACUUM 1 Rp9.000
11 34810-46G00-000
SUB: 34810B46G00N000		 GAUGE ASSY, FUEL LEVEL 1 Rp87.000
12 02112-0512A-000
SUB: 02112B05123N000		 SCREW 4 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
