SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 REAR LEG SHIELDFIG.35 SHIELD COVERFIG.36 LUGGAGE BOXFIG.37 FRONT FENDERFIG.38 HANDLEBARFIG.39 HANDLE COVERFIG.40 HANDLE LEVERFIG.41 REAR FENDERFIG.42 LABELFIG.43 SEATFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SHOCK ABSORBERFIG.50 REAR WHEEL

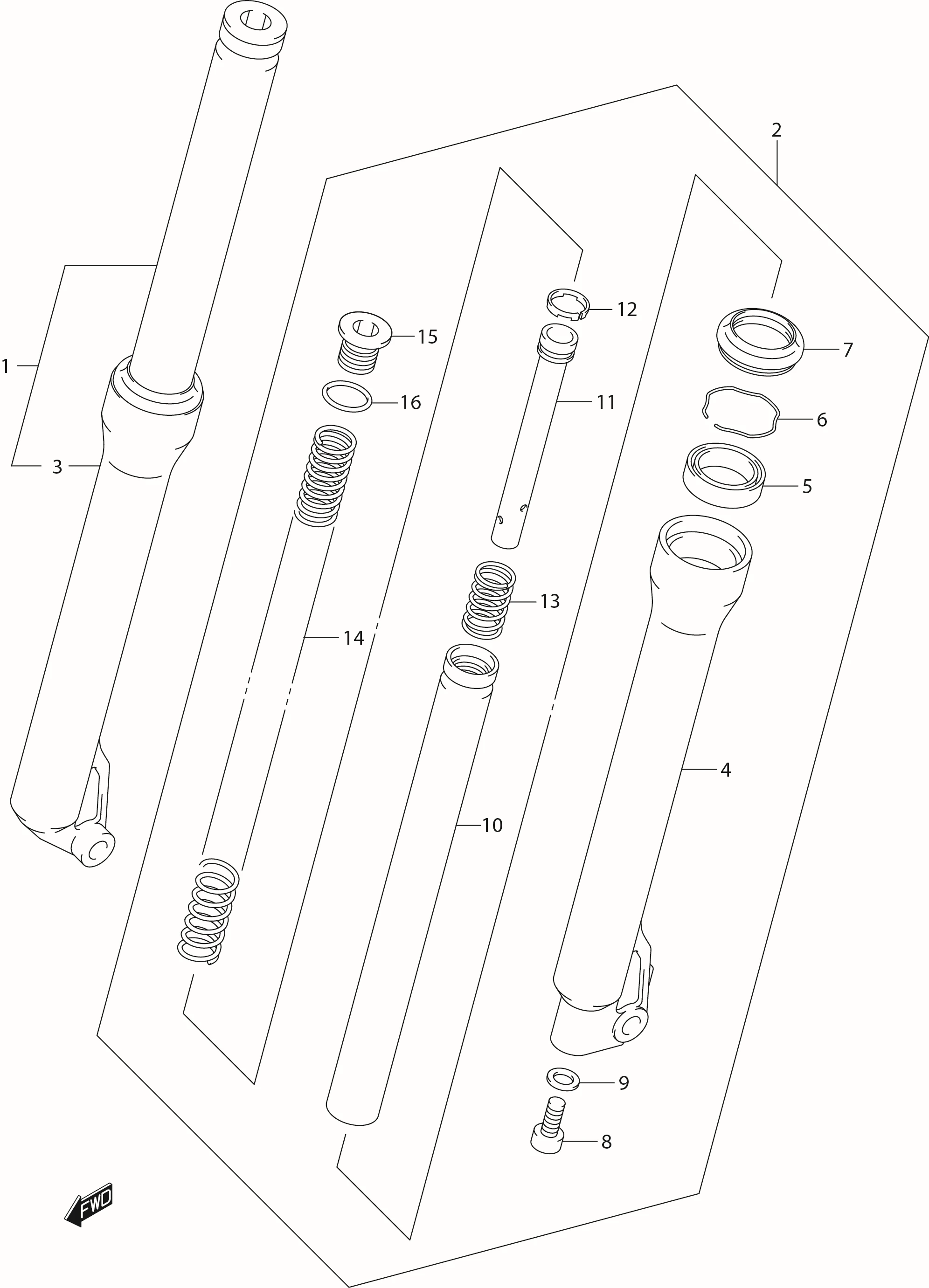

FIG.44 FRONT DAMPER

FIG.44 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51103B46G10N000		 DAMPER ASSY, FRONT FORK RH 1 -
2 DISCONTINUE
SUB: 51104B46G10N000		 DAMPER ASSY, FRONT FORK LH 1 -
3 DISCONTINUE
SUB: 51130B46G10N000		 ?TUBE, OUTER, R 1 -
4 DISCONTINUE
SUB: 51140B46G10N000		 ?TUBE, OUTER, L 1 -
5 51153-23F00-000
SUB: 51153-23F00L000		 ?SEAL, OIL 2 Rp27.000
6 51156-43010-000
SUB: 51156B43010N000		 ?RING, SNAP 2 Rp6.000
7 51173-23F00-000
SUB: 51173B23F00N000		 ?SEAL, DUST 2 Rp41.500
8 51147-16510-000
SUB: 51147-16510L000		 ?BOLT 2 Rp10.500
9 51148-41310-000
SUB: 51148B41310N000		 ?GASKET 2 Rp8.500
10 51110-46G20-000
SUB: 51110B46G00N000		 ?TUBE, INNER 2 Rp183.500
11 DISCONTINUE
SUB: 51146B46G00N000		 ?CYLINDER 2 -
12 DISCONTINUE
SUB: 51196-39410L000		 ?RING, PISTON 2 -
13 51177B35400N000 ?SPRING, REBOUND 2 Rp7.000
14 51171-46G00-000
SUB: 51171B46G00N000		 ?SPRING, FRONT 2 Rp24.500
15 DISCONTINUE
SUB: 51351B09G10N000		 ?CAP 2 -
16 51169-09G00-000
SUB: 51169B09G10N000		 ?O RING 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
