SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

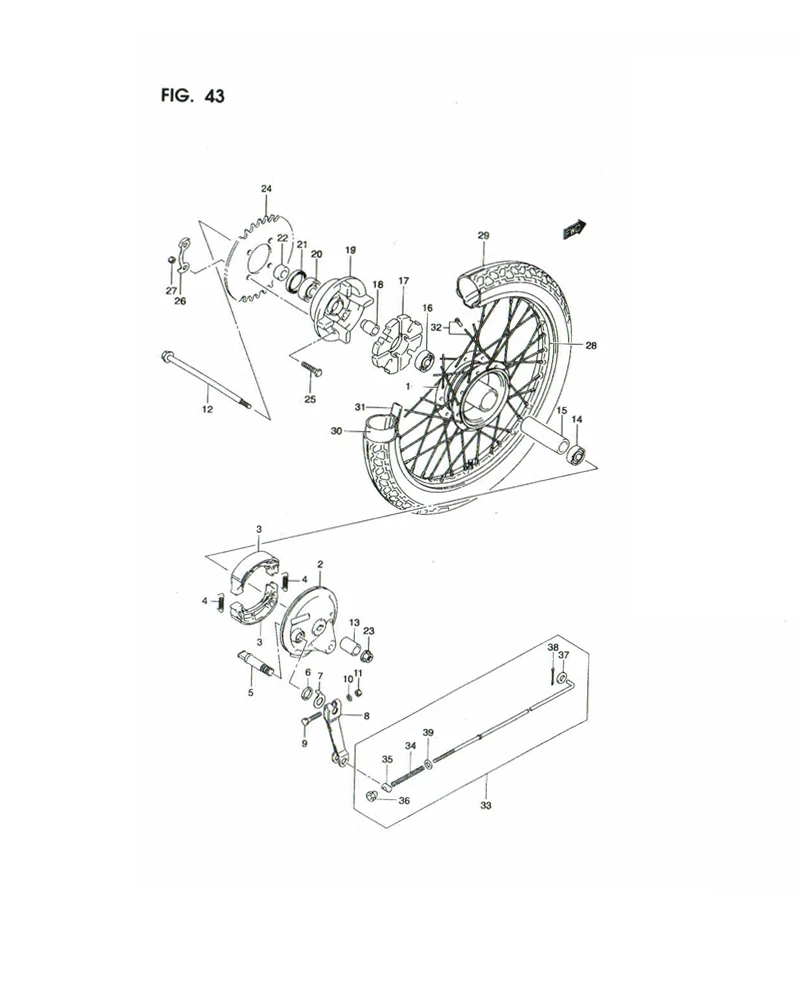

FIG. 43 REAR WHEEL

FIG. 43 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64110-35350-000
SUB: 64110-35350L000		 DRUM, REAR WHEEL 1 Rp206.000
2 64210-46005-27S
SUB: 64210-46005L27S		 PANEL, REAR BRAKE ANCHOR 1 Rp59.500
3-2 54410-35450-000
SUB: 54410-35450L000		 BRAKE SHOE, SET (NABS) 1 Rp60.000
3-1 54410-35450-000
SUB: 54410-35020L000		 BRAKE SHOE, SET (ABS) 1 Rp60.000
4 09443-07025-000 SPRING 2 Rp3.500
5 64441-21D00-000
SUB: 64441B21D00N000		 SHAFT, BRAKE CAM 1 Rp34.500
6 09280-14011-000 SEAL, DUST 1 Rp7.500
7 DISCONTINUE
SUB: 54492-35400-000		 PLATE, BRAKE LINING 1 -
8 64451-43020-000
SUB: 64451-43020L000		 LEVER, BRAKE CAM 1 Rp8.500
9 DISCONTINUE
SUB: 09103-06045-000		 BOLT 1 -
10 09160-14054-000 WASHER 1 Rp12.500
11 08316-1006A-000
SUB: 08316-10063-000		 NUT 1 Rp2.000
12 64711-09G00L000 AXLE, REAR 1 -
13 DISCONTINUE
SUB: 64731-31C20L000		 SPACER, REAR AXLE RH 1 -
14 08143-63017-000
SUB: 08143-63017L000		 BEARING, RH 1 Rp30.500
15 09180-12145-000 SPACER, BEARING (12.5X19X58) 1 Rp9.500
16 08143-6201117L BEARING, LH 1 Rp8.143
17 64651-30D60-000
SUB: 64651-30D00L000		 ABSORBER, REAR HUB SHOCK 1 Rp25.000
18 64733-43000-000 RETAINER, REAR SPROCKET DRUM 1 Rp15.500
19 64611-01001-000
SUB: 64611-01001L000		 DRUM, SPROCKET MOUNTING 1 Rp122.000
20 08113-62037L000 BEARING 1 Rp34.000
21 09285-25008-000
SUB: 09285-25003L000		 SEAL OIL (25X40X6) 1 Rp8.000
22 DISCONTINUE
SUB: 64721-35500L000		 SPACER, RR SPROCKET DRUM 1 -
23 08319-31128-000
SUB: 08319B31128N000		 NUT 1 Rp7.500
24 64511-354B0AS01 SPROCKET, REAR (NT:35) 1 Rp109.500
25 09105-08011-000 BOLT, REAR SPROCKET 4 Rp6.500
26 09169-08011-000 LOCK WASHER 2 Rp3.500
27 08310-0008B-000
SUB: 08310-00083-000		 NUT 4 Rp15.500
28 65311-35400L000 WHEEL RIM (1.40X17) 1 -
29 65110B09G10N000 TIRE, REAR (2.50-7 38L) (4PR) 1 -
30 65200-30D40L000 TUBE ASSY, INNER 1 -
31 55261-30D40L000 PROTECTOR, INNER TUBE 1 -
32 65320-03021-000
SUB: 65320-03021L000		 SPOKE SET, REAR WHEEL 1 Rp43.500
33 DISCONTINUE
SUB: 43300-30D10L000		 ROD ASSY, REAR BRAKE 1 -
34 09440-09004-000 .SPRING 1 Rp12.500
35 09209-11002-000
SUB: 09209B11002N000		 .PIN 1 Rp7.500
36 09150-06001-000
SUB: 09150-06014-000		 .NUT 1 Rp9.500
37 08322-0105A-000
SUB: 08322-01053-000		 .WASHER, FRONT 1 Rp3.000
38 DISCONTINUE
SUB: 04111-20208L000		 .PIN, COTTER 1 -
39 DISCONTINUE
SUB: 08322-01063-000		 .WASHER, REAR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
