SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

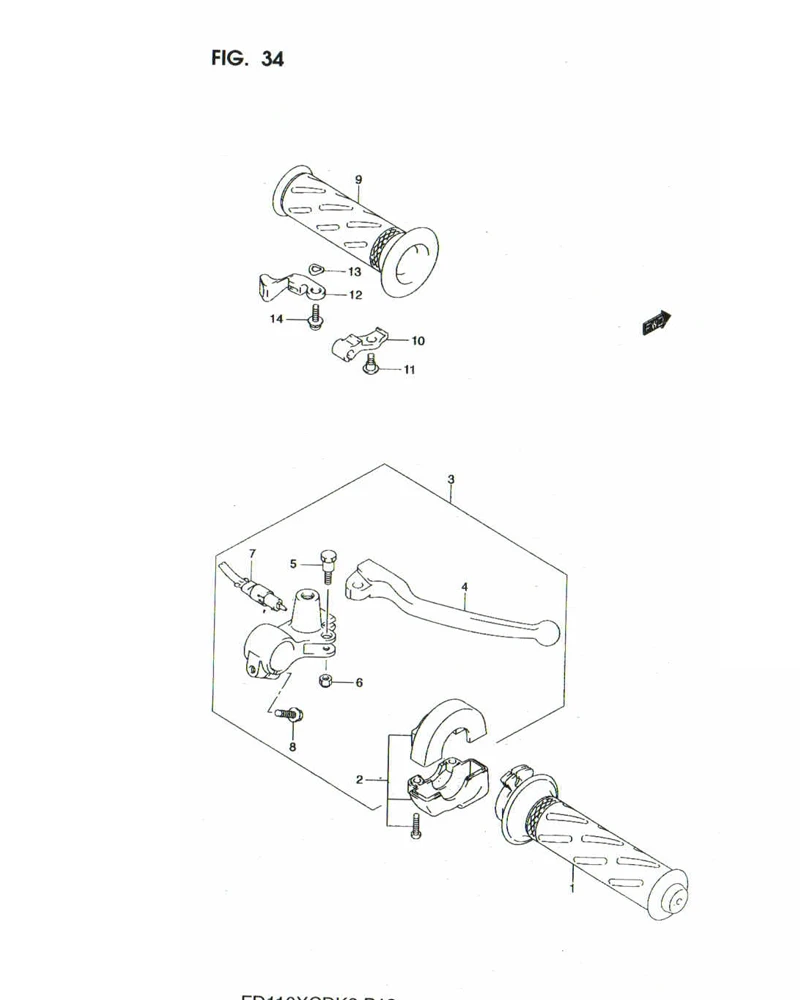

FIG. 34 HANDLE LEVER

FIG. 34 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09G10-000
SUB: 57110B09G10N000		 GRIP, THROTTLE 1 Rp42.500
2 57100-09G11-000
SUB: 57100B09G10N000		 CASE ASSY, THROTTLE 1 Rp19.500
3 DISCONTINUE
SUB: 57300B09G10N000		 LEVER ASSY, RH 1 -
4 DISCONTINUE
SUB: 57421B09G10N000		 .LEVER 1 -
5 DISCONTINUE
SUB: 57431B09G00N000		 .BOLT, PIVOT 1 -
6 DISCONTINUE
SUB: 08319B21063N000		 .NUT 1 -
7 57470-10J40-000
SUB: 57470B09G00N000		 .SWITCH ASSY, BRAKE 1 Rp46.500
8 01550-06253L000 .BOLT, HOLDER 1 -
9 57211-09G00-000
SUB: 57211B09G00N000		 GRIP, LH 1 Rp30.000
10 DISCONTINUE
SUB: 58711-09G00-000		 HOLDER, STARTER CABLE 1 -
11 09139-05057-000 SCREW 1 Rp6.500
12 58721-23F00L000 LEVER, STARTER 1 Rp14.500
13 DISCONTINUE
SUB: 09164-07001-000		 WASHER 1 -
14 02112-7516A-000
SUB: 02112-75163-000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
