SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

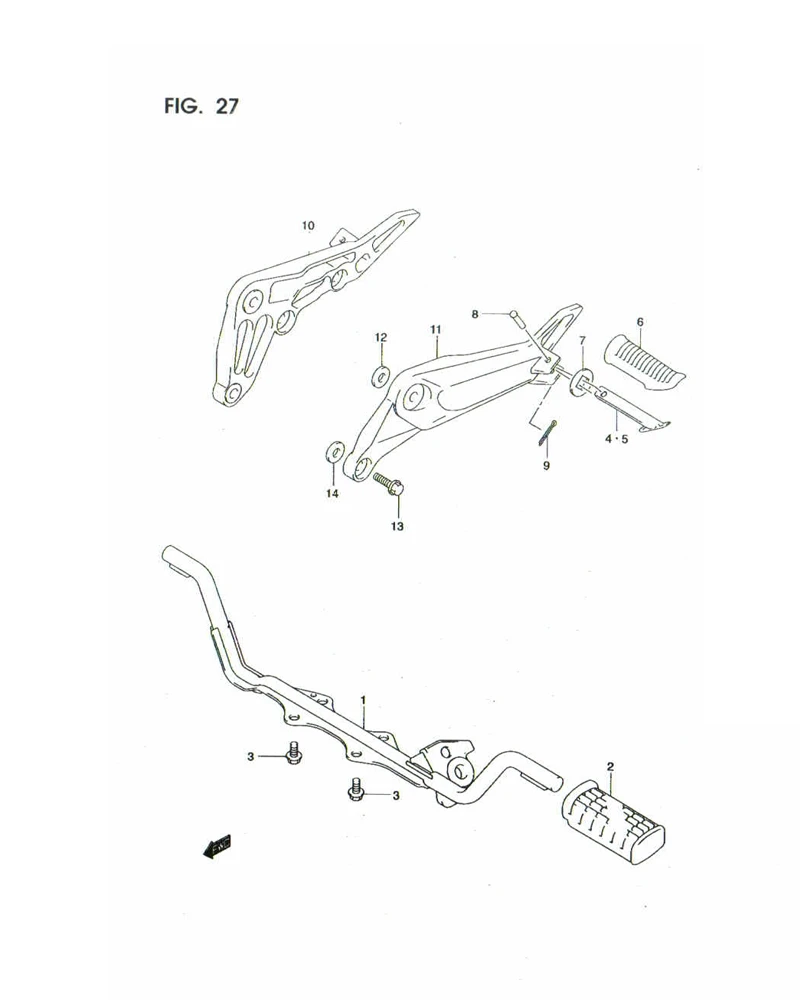

FIG. 27 FOOTREST

FIG. 27 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-09G00-000
SUB: 43510B09G00N000		 BAR, FRONT FOOTREST 1 Rp156.500
2 43551-35560-000
SUB: 43551-35510L000		 RUBBER 2 Rp18.500
3 01550-0816A-000
SUB: 01550-08163-000		 BOLT 4 Rp6.000
4 43610-34A00-000
SUB: 43610-34A00L000		 BAR, PILLON RH 1 Rp15.000
5 43710-3400L-000 BAR, PILLON LH 1 -
6 43612-09G00-000
SUB: 43612B09G00N000		 RUBBER 2 Rp14.000
7 436312B09G00N WASHER 2 Rp43.631
8 09200-06041-000
SUB: 09200B06041N000		 PIN 2 Rp4.000
9 04111-2515A-000
SUB: 04111B25156N000		 COTTER PIN 2 Rp8.500
10 DISCONTINUE
SUB: 43811B09G10N000		 BRACKET, PILLON RH 1 -
11 DISCONTINUE
SUB: 43820B09G10N000		 BRACKET, PILLON LH 1 -
12 DISCONTINUE
SUB: 09160-10132-000		 WASHER, UPPER 2 -
13 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500
14 09160-08128-000 WASHER 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
