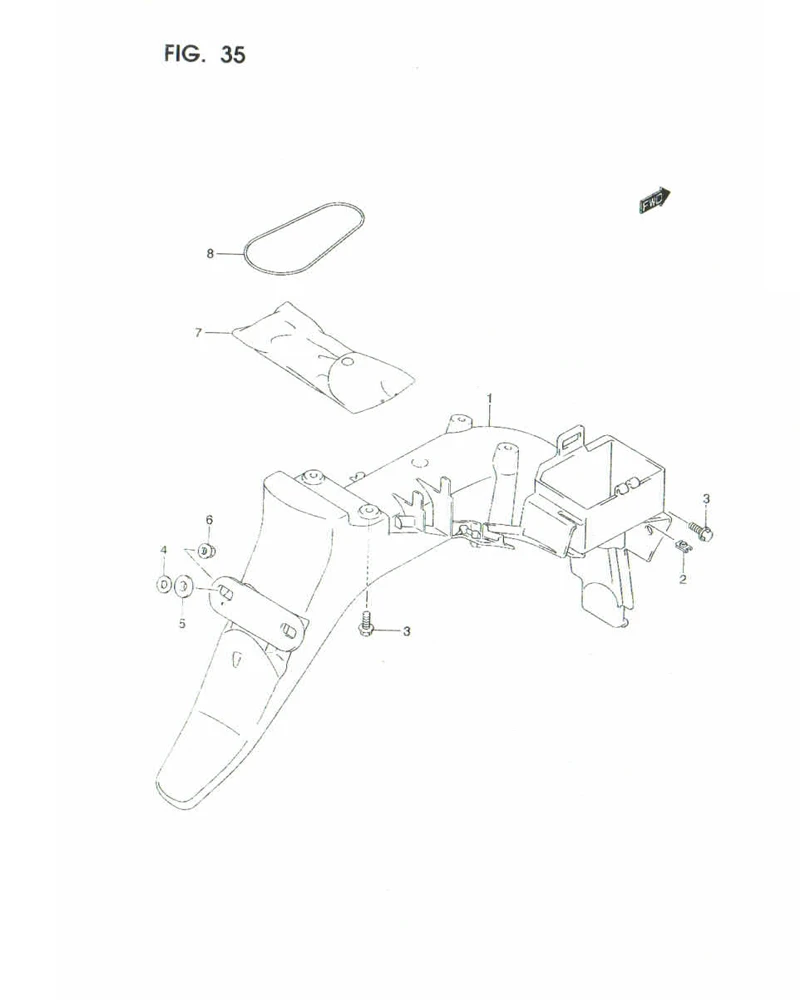

FIG. 35 REAR FENDER

FIG. 35 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-09G00-000
SUB: 63111B09G00N000		 FENDER, REAR 1 Rp67.000
2 09148-05013-000
SUB: 09148-05004-000		 NUT 2 Rp13.500
3 09113-06001-000 BOLT 5 Rp15.000
4 DISCONTINUE
SUB: 09160-06130-000		 WASHER, LICENSE 2 -
5 09169-06071-000 WASHER, REAR 3 Rp7.500
6 08316-1006A-000
SUB: 08316-10063-000		 NUT 3 Rp2.000
7 09800-21004-000
SUB: 09800-21004L000		 TOOL ASSY 1 Rp36.000
8 DISCONTINUE
SUB: 47435B09G00N000		 BAND, TOOL 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
