SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

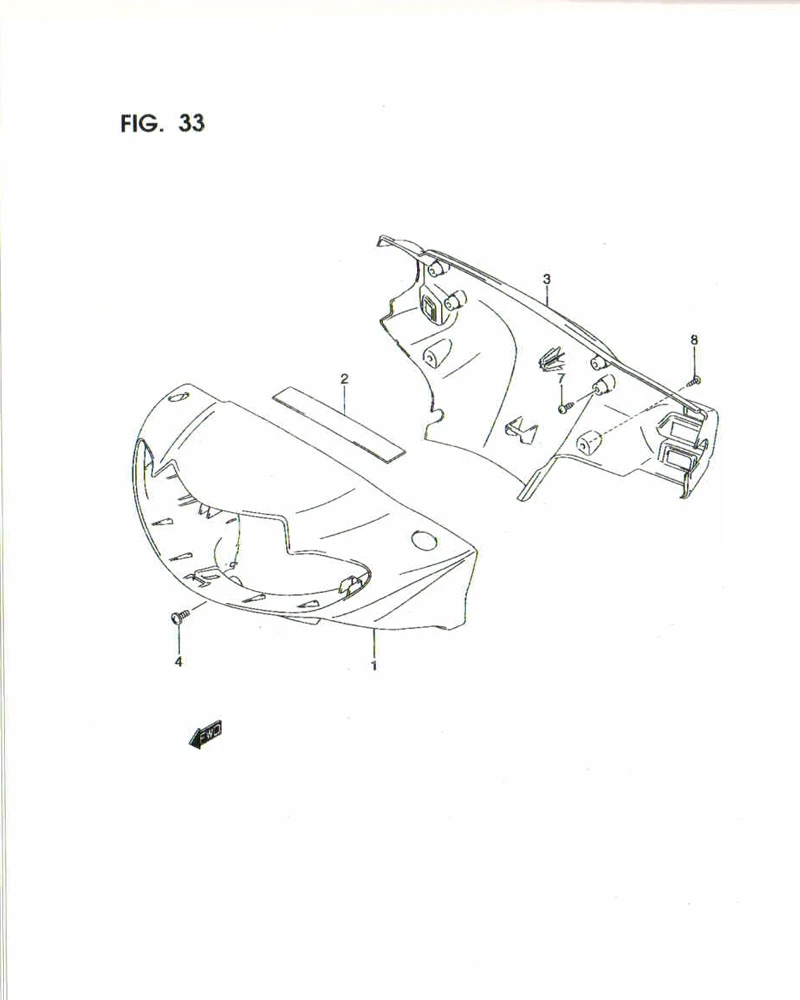

FIG. 33 HANDLE COVER

FIG. 33 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 56311B09G00N000 COVER, HANDLE FRONT 1 -
2 56314-23G00-000 CUSHION 1 -
3 56321-09G00-000
SUB: 56321B09G00N000		 COVER, HANDLE REAR 1 Rp27.000
4 02142-0512A-000
SUB: 02142B05123N000		 SCREW, FRONT 1 Rp3.500
5 09169-06059-000 WASHER 2 Rp20.500
6 09320-08051-000 CUSHION 2 Rp3.000
7 03511-0516A-000
SUB: 03512-05163-000		 SCREW, UPPER 2 Rp5.500
8 03541-0416A-000
SUB: 03541-04163-000		 SCREW, SIDE 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
