SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

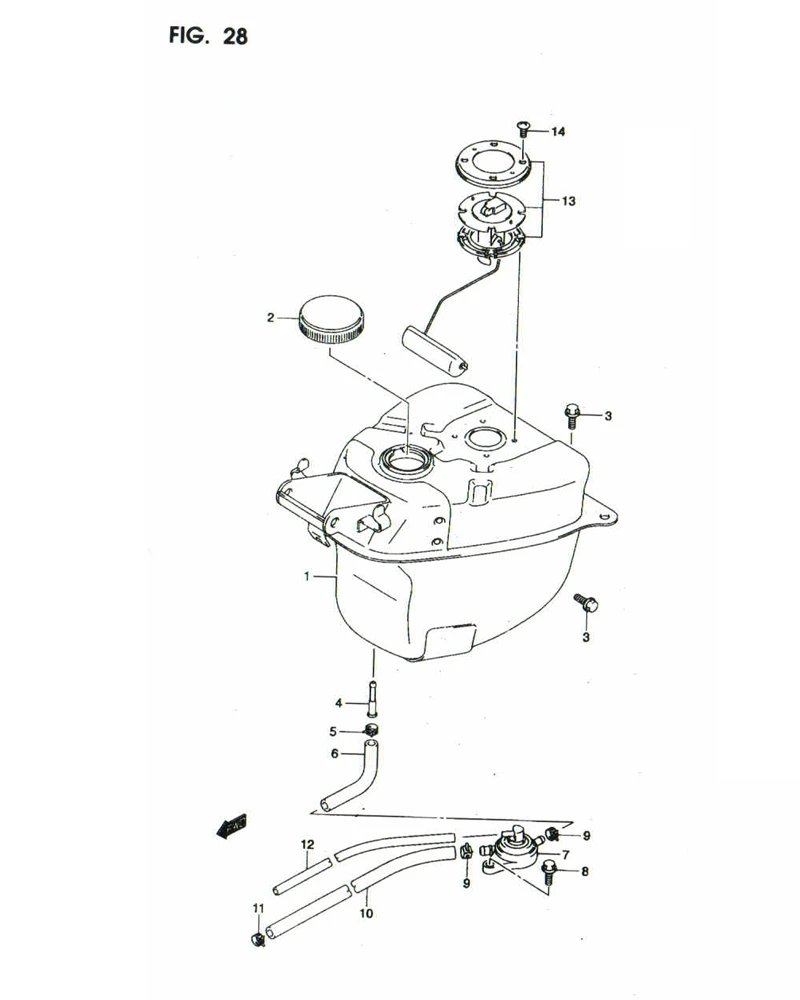

FIG. 28 FUEL TANK

FIG. 28 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-09G00-000
SUB: 44110B09G00N000		 TANK, FUEL 1 Rp241.500
2 44210-35014ASO1 CAP ASSY, FUEL 1 -
3 DISCONTINUE
SUB: 01550-06123-000		 BOLT 4 -
4 44322-27001-000 FILTER, FUEL 1 Rp16.500
5 09104-10409-000 CLIP 1 -
6 44421-09G00-000
SUB: 44421B09G00N000		 HOSE, FUEL 1 Rp4.000
7 44300-09G00-000 COCK ASSY, FUEL THAI 1 Rp278.000
8 01550-0616A-000
SUB: 01550-06163-000		 BOLT, COCK 1 Rp3.500
9 09401-09403-000 CLIP 3 Rp3.500
10 09352B40703N300 HOSE, VACUUM (L:300) 1 -
11 09401-06101-000 CLIP, VACUUM 1 Rp2.000
12 44422-09G00-000
SUB: 44422B09G00N000		 HOSE, CARB 1 Rp12.500
13 34810-31C40-000
SUB: 34810B31C40N000		 GUASE ASSY, FUEL LEVEL 1 Rp130.500
14 02112-3512A-000
SUB: 02112-35123-000		 SCREW 4 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
