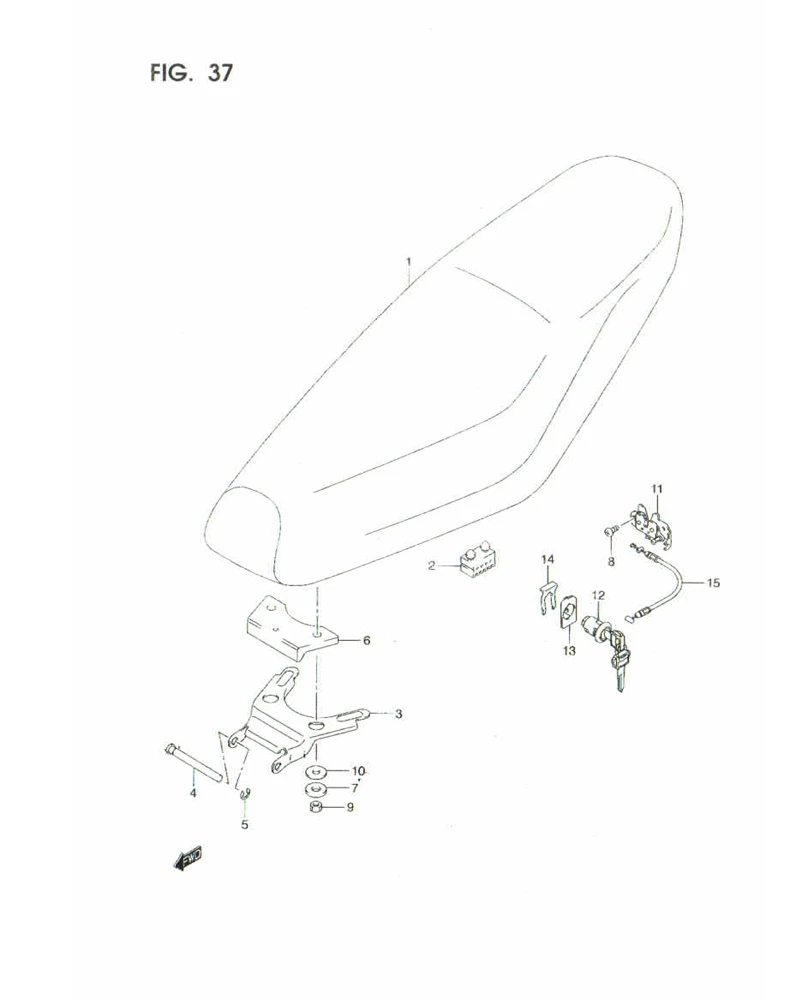

FIG. 37 SEAT

FIG. 37 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-09G10-000
SUB: 45100B09G10N000		 SEAT ASSY 1 Rp282.500
2 45149-09G00-000
SUB: 45149B09G00N000		 .CUSHION 6 Rp9.500
3 DISCONTINUE
SUB: 45285B09G00N000		 BRACKET, SEAT HINGE 1 -
4 45215-09G10-000
SUB: 45215-09G00-000		 PIN, SEAT HINGE 1 Rp6.500
5 08332-1106A-000
SUB: 08332-11063-000		 E RING 1 Rp8.500
6 45147-09G00-000
SUB: 45147B09G00N000		 CUSHION, HINGE UPPER 1 Rp10.500
7 DISCONTINUE
SUB: 09160-06503-000		 WASHER, SEAT HINGE BRACKET 2 -
8 02112-0610B-000
SUB: 02112-06103-000		 SCREW 2 Rp5.500
9 08316-110063000 NUT 2 -
10 45148-09G00-000
SUB: 45148B09G00N000		 CUSHION, HINGE LOWER 2 Rp5.000
11 45700-09G30-000
SUB: 45700-09G00-000		 BRACKET, STRIKERSUPPORT THAI 1 Rp33.500
12 95700B09G0N-000 LOCK ASSY, SEAT 1 -
13 45288B09G0N-000 GUIDE, SEAT LOCK CABLE 1 -
14 45289-09G00-000 PLATE, SEAT LOCK 1 Rp3.500
15 45280-09G00-000
SUB: 45280B09G00N000		 CABLE, SEAT LOCK 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
