SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

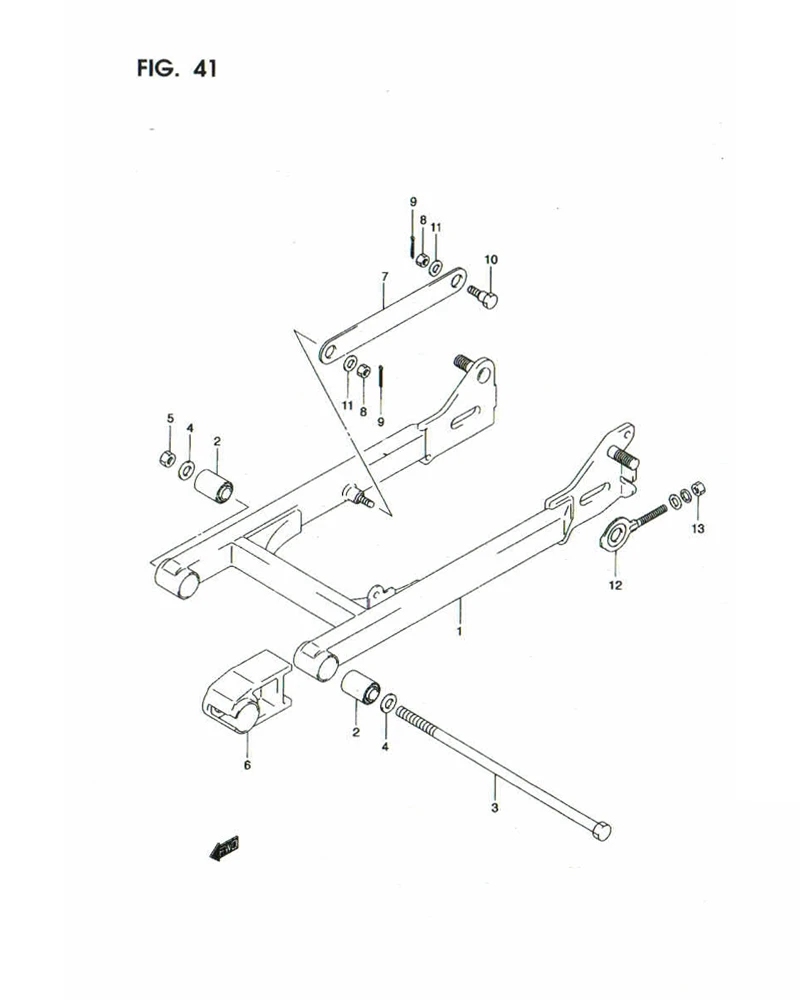

FIG. 41 REAR SWINGING ARM

FIG. 41 REAR SWINGING ARM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 61100B09G10N000		 SWINGING ARM, REAR 1 -
2 09319-10009-000
SUB: 09319-10009L000		 BUSHING (10X23X35) 4 Rp18.000
3 61211-31C10-000
SUB: 61211B31C10N000		 SHAFT, REAR SWINGING ARM 1 Rp27.500
4 08322-01107-000 WASHER 2 Rp13.000
5 09159-10027-000 NUT 1 Rp19.500
6 61273-09G00-000
SUB: 61273B09G00N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp13.000
7 DISCONTINUE
SUB: 64311-31C10-000		 TOURQUE LINK, REAR 1 -
8 09140-08008-000 NUT 1 Rp10.500
9 DISCONTINUE
SUB: 04111-20208L000		 COTTER PIN 2 -
10 09111-08013-000
SUB: 09111B08013N000		 BOLT (8X26.5) 1 Rp5.500
11 08322M0108A-000
SUB: 08322-01083-000		 WASHER 2 Rp5.500
12 DISCONTINUE
SUB: 61411B35410N000		 ADJUSTER, CHAIN 2 -
13 08319-31067-000 NUT 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
