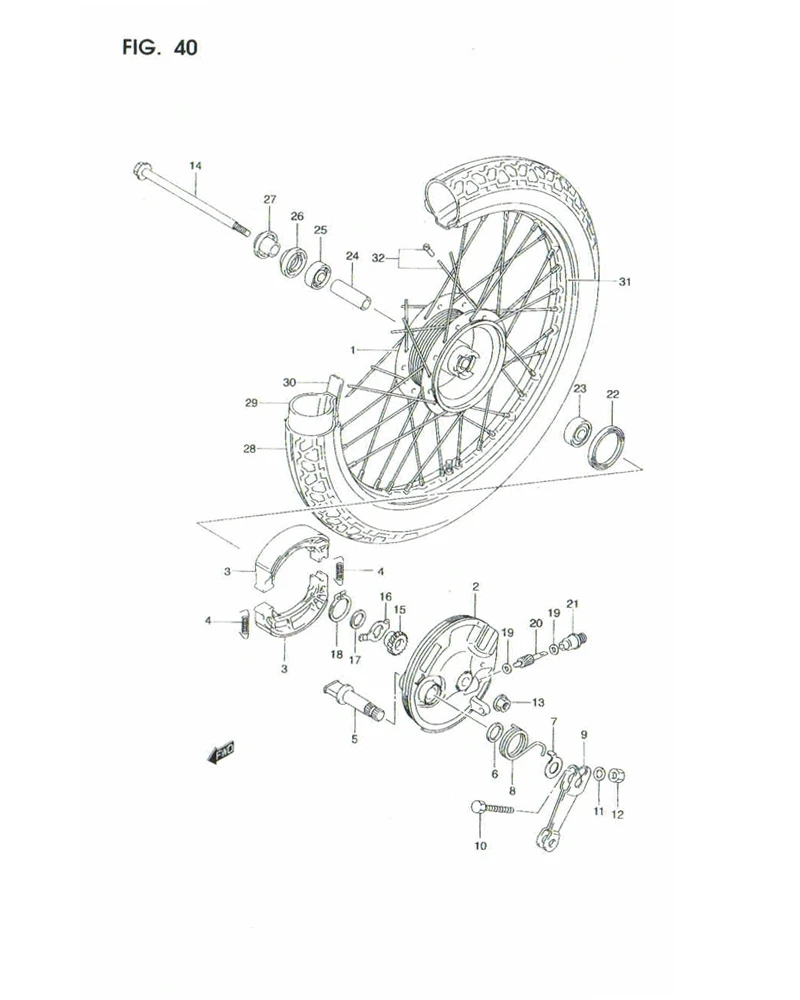

FIG. 40 FRONT WHEEL

FIG. 40 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54110-35401-13L
SUB: 54110-35400L000		 HUB, FRONT WHEEL 1 Rp147.000
2 DISCONTINUE
SUB: 54210-35400L000		 PANEL, FRONT BRAKE ANCHOR 1 -
3-1 54410-35450-000
SUB: 54410-35020L000		 BRAKE SHOE SET (ABS) 1 Rp60.000
3-2 54410-35450-000
SUB: 54410-35450L000		 BRAKE SHOE SET (N.ABS) 1 Rp60.000
4 09443-07025-000 SPRING 2 Rp3.500
5 DISCONTINUE
SUB: 54441-23F00-000		 SHAFT, BRAKE CAM 1 -
6 09280-14011-000 SEAL, BRAKE CAM DUST 1 Rp7.500
7 DISCONTINUE
SUB: 54492-35400-000		 PLATE, BRAKE LINING 1 -
8 09448-30009-000 SPRING 1 Rp4.500
9 54451-35400-000
SUB: 54451-35400L000		 LEVER, BRAKE CAM 1 Rp8.500
10 DISCONTINUE
SUB: 09103-06045-000		 BOLT 1 -
11 09160-14054-000 WASHER 1 Rp12.500
12 08316-1006A-000
SUB: 08316-10063-000		 NUT 1 Rp2.000
13 08319-31108-000
SUB: 08319-31107-000		 NUT 1 Rp4.500
14 54711-13H00-000
SUB: 54711-04701L000		 AXLE, FRONT 1 Rp13.000
15 54611-23202-000 GEAR, SPEEDOMETER DRIVEN 1 Rp185.000
16 54661-03000-000 DRIVER, SPEEDOMETER GEAR 1 Rp30.000
17 09160-16005-000 WASHER (16X22X10 1 Rp10.500
18 08331-31159-000
SUB: 08331-31156-000		 CIRCLIP 1 Rp14.000
19 DISCONTINUE
SUB: 09160-05001-000		 WASHER (5.1X9X0.4) 2 -
20 54621-23201-000 GEAR, SPEEDOMETER DRIVEN 1 Rp125.000
21 54632-02201-000 BUSHING, DRIVEN GEAR OUTER 1 Rp68.500
22 09283-43004-000 SEAL, OIL 1 Rp66.500
23 08143-63007-000
SUB: 08143-63007L000		 BEARING, LH 1 Rp29.500
24 DISCONTINUE
SUB: 09180-10147-000		 SPACER, BEARING (10.1X16X46) 1 -
25 08113-62007-000
SUB: 08113-62007L000		 BEARING, RH 1 Rp24.000
26 09284-15001-000
SUB: 09284-15001L000		 SEAL, OIL (15X31X5) 1 Rp4.500
27 54740-26101-000
SUB: 54740-26101L000		 SPACER, AXLE RH 1 Rp106.000
28 55110B09G10N000 TIRE, FRONT (2.25-17 33L) (4PR) 1 -
29 55200-30D40L000 TUBE ASSY, WHEEL INNER 1 -
30 55261-30D40L000 PROTECTOR, INNER TUBE 1 -
31 DISCONTINUE
SUB: 55311-01021L000		 RIM, WHEEL 1.20X17 1 -
32 DISCONTINUE
SUB: 55320-01012L000		 SPOKE ASSY, FRONT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
