SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

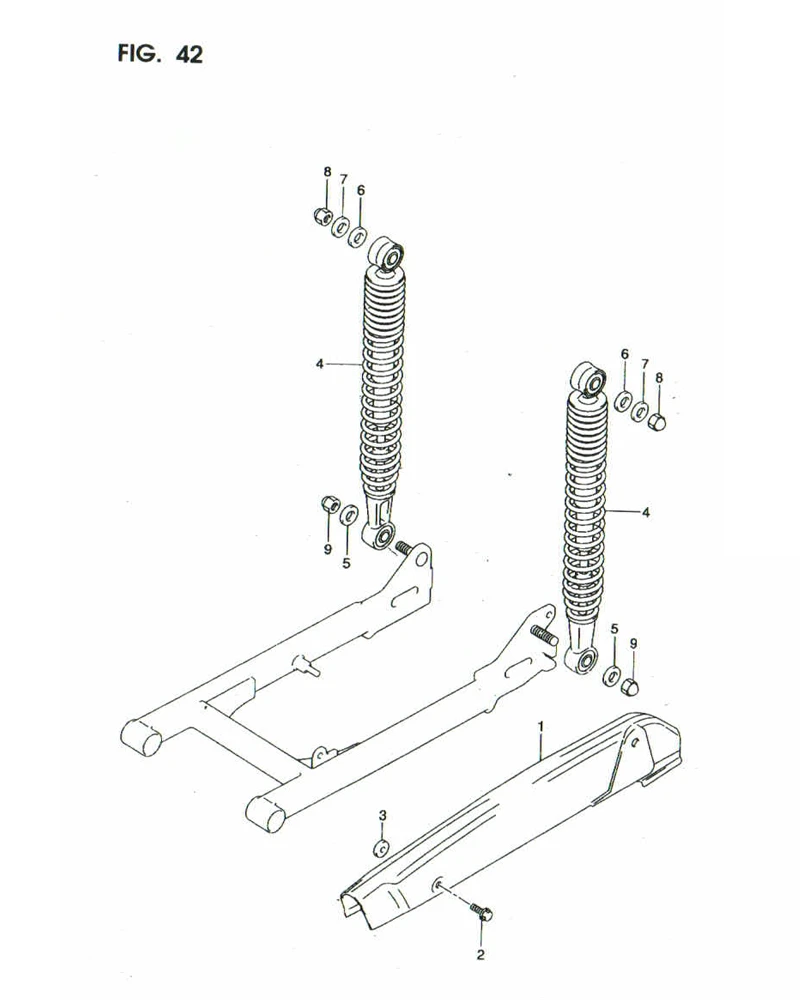

FIG. 42 CHAIN CASE

FIG. 42 CHAIN CASE
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 61310-31CA0AS01		 CASE, CHAIN UPPER 1 -
1-2 DISCONTINUE
SUB: 61320-31C11AS01		 CASE, CHAIN LOWER 1 -
2 09111-06065-000 BOLT, CHAIN CASE 2 Rp4.000
3 DISCONTINUE
SUB: 61338B09G00N000		 SPACER, CHAIN CASE 2 -
4 DISCONTINUE
SUB: 62100B09G10N000		 ABSORBER ASSY, REAR SHOCK 2 -
5 09160-10093-000
SUB: 09160-10127-000		 WASHER, LOWER OUTER 2 Rp12.500
6 09160-10093-000
SUB: 09160-10127-000		 WASHER, UPPER OUTER NO. 1 2 Rp12.500
7 09160-10093-000
SUB: 09160-10127-000		 WASHER, UPPER OUTER NO. 2 2 Rp12.500
8 08310-000102000 NUT, UPPER 2 -
9 08313-10107-000 NUT, LOWER 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
