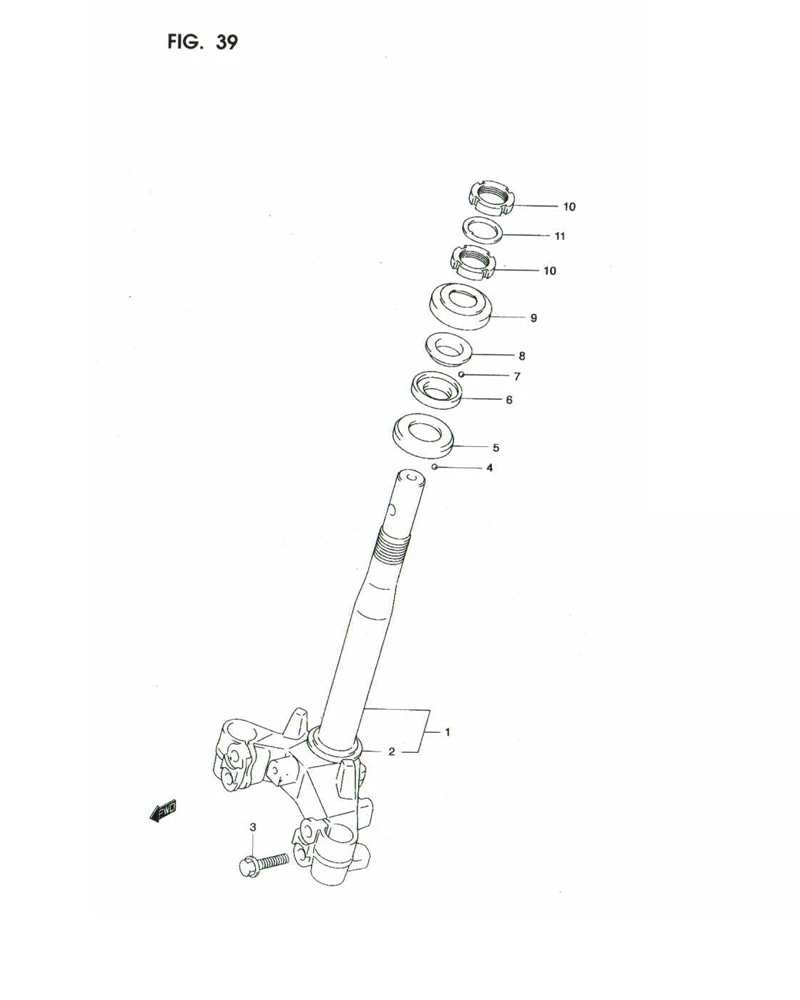

FIG. 39 FRONT FORK BRACKET

FIG. 39 FRONT FORK BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410B09G00N000		 BRACKET, GRONT FOR UNDER 1 -
2 51622-41H00-000
SUB: 51622B35400N000		 .RACE, OUTER LOWER 1 Rp56.500
3 DISCONTINUE
SUB: 51166B09G00N000		 BOLT 4 -
4 06111-06004-000
SUB: 06111-06004L000		 BALL, LOWER 27 Rp1.000
5 51612-35400-000
SUB: 51612B35400N000		 RACE, INNER LOWER 1 Rp24.000
6 51611-09G00-000 RACE, INNER UPPER 1 Rp29.000
7 06111-06004-000
SUB: 06111-06004L000		 BALL, UPPER 22 Rp1.000
8 51621-25000-000
SUB: 51621B25000N000		 RACE, OUTER UPPER 1 Rp23.000
9 51643-06001-000
SUB: 51643-06001L000		 SEAL, DUST UPPER 1 Rp3.000
10 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM 2 Rp20.000
11 09166-24001-000 WASHER 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
