SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

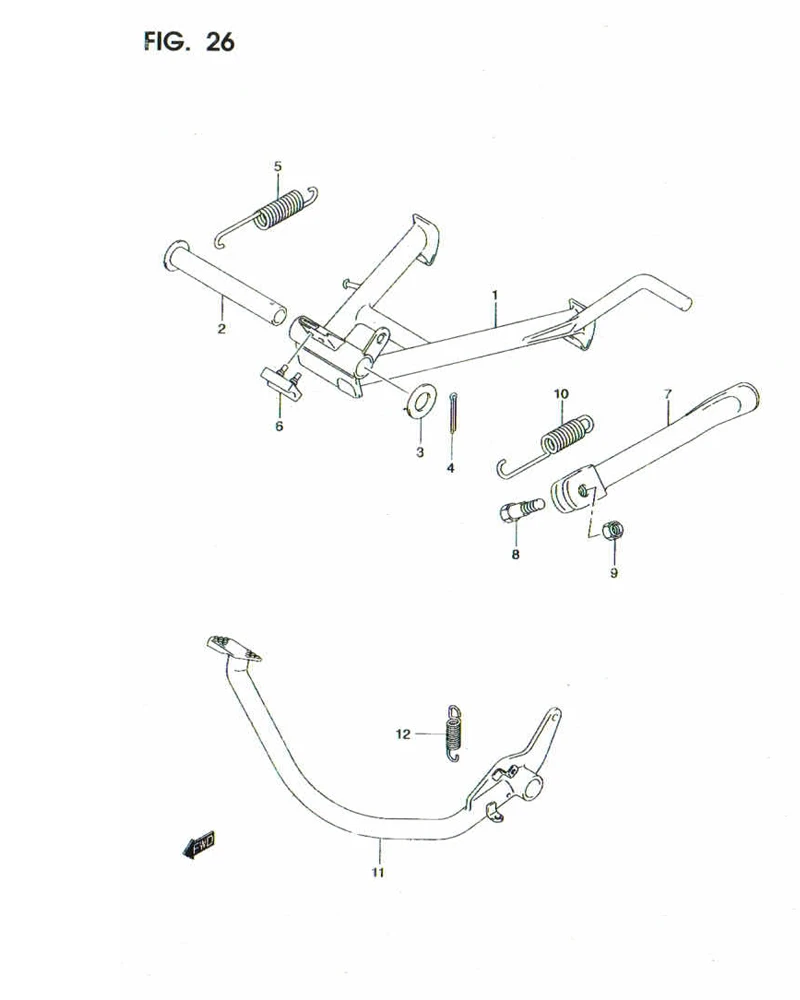

FIG. 26 STAND

FIG. 26 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-09G10-000
SUB: 42100B09G10N000		 STAND, CENTER 1 Rp176.500
2 42211-25G00-000
SUB: 42211-09G00-000		 SHAFT 1 Rp23.500
3 08322-0116B-000
SUB: 08322-01163-000		 WASHER 1 Rp3.500
4 04111-303808000 COTTER PIN 1 -
5 42241-09G00-000
SUB: 42241B09G00N000		 SPRING 1 Rp9.000
6 42272-09G00-000
SUB: 42272B09G00N000		 CUSHION 1 Rp4.500
7 42310-09G10-000
SUB: 42310B09G10N000		 STAND, PROP 1 Rp39.500
8 42341-09G01-000
SUB: 42341B09G00N000		 BOLT 1 Rp5.000
9 08319-31108-000
SUB: 08319-31107-000		 NUT 1 Rp4.500
10 09443-14022-000
SUB: 09443-14022L000		 SPRING 1 Rp5.000
11 DISCONTINUE
SUB: 43110B09G10N000		 PEDAL, BRAKE 1 -
12 09443-12033-000
SUB: 09443B12033N000		 SPRING, RETURN 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
