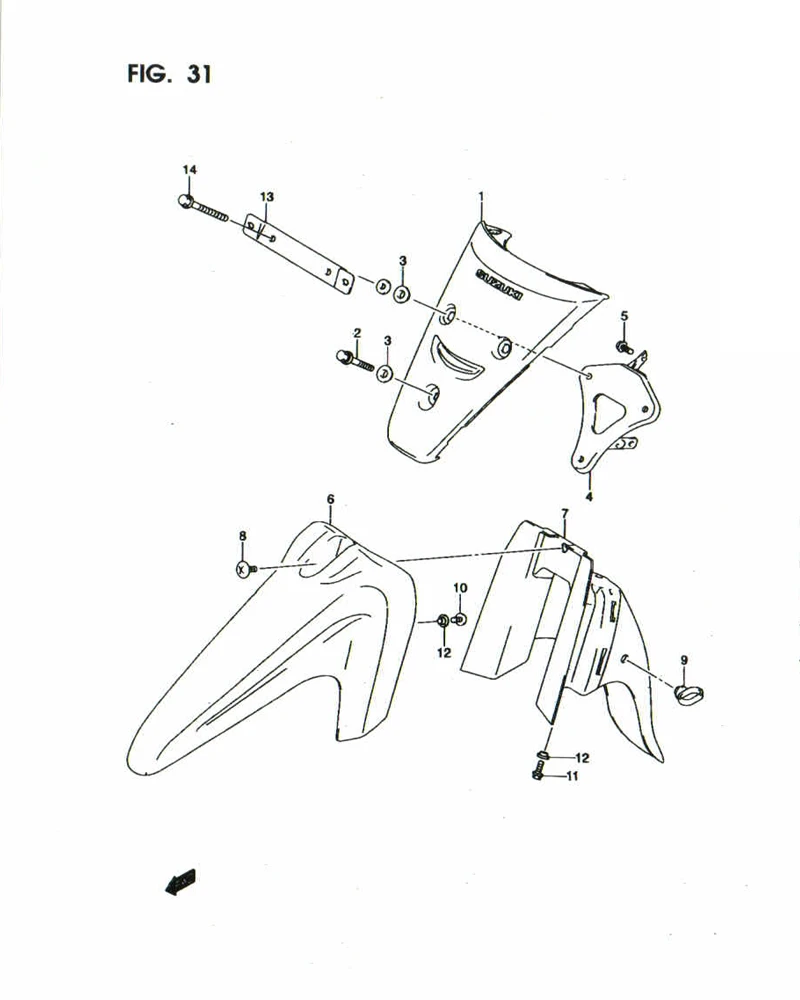

FIG. 31 FRONT FENDER

FIG. 31 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 51871B09G00N000 COVER, FRAME HEAD 1 -
2 02142-0616A-000
SUB: 02142B06167N000		 SCREW 1 Rp3.000
3 DISCONTINUE
SUB: 09169-06052-000		 WASHER 3 -
4 DISCONTINUE
SUB: 51860B09G00N000		 BRACE, HEAD COVER 1 -
5 01570-0820B-000
SUB: 01570-08163-000		 BOLT 2 Rp31.000
6 53111B09G00N000 FENDER, FRONT NO. 1 1 -
7 53211-09G00-000
SUB: 53211B09G00N000		 FENDER, FRONT NO. 2 1 Rp47.000
8 53274-09G00-000 SCREW, UPPER 1 Rp7.000
9 58621-47E00-000
SUB: 58621B47E00N000		 GUIDE, FRONT BRAKE CABLE 1 Rp4.000
10 02142-0612A-000
SUB: 02142-06123-000		 SCREW 2 Rp4.000
11 DISCONTINUE
SUB: 01550-06123-000		 BOLT 1 -
12 09169-06071-000 WASHER 3 Rp7.500
13 DISCONTINUE
SUB: 48190B09G00N000		 PLATE, LICENSE 1 -
14 01550-0645A-000
SUB: 01550-06453-000		 BOLT 2 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
