SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

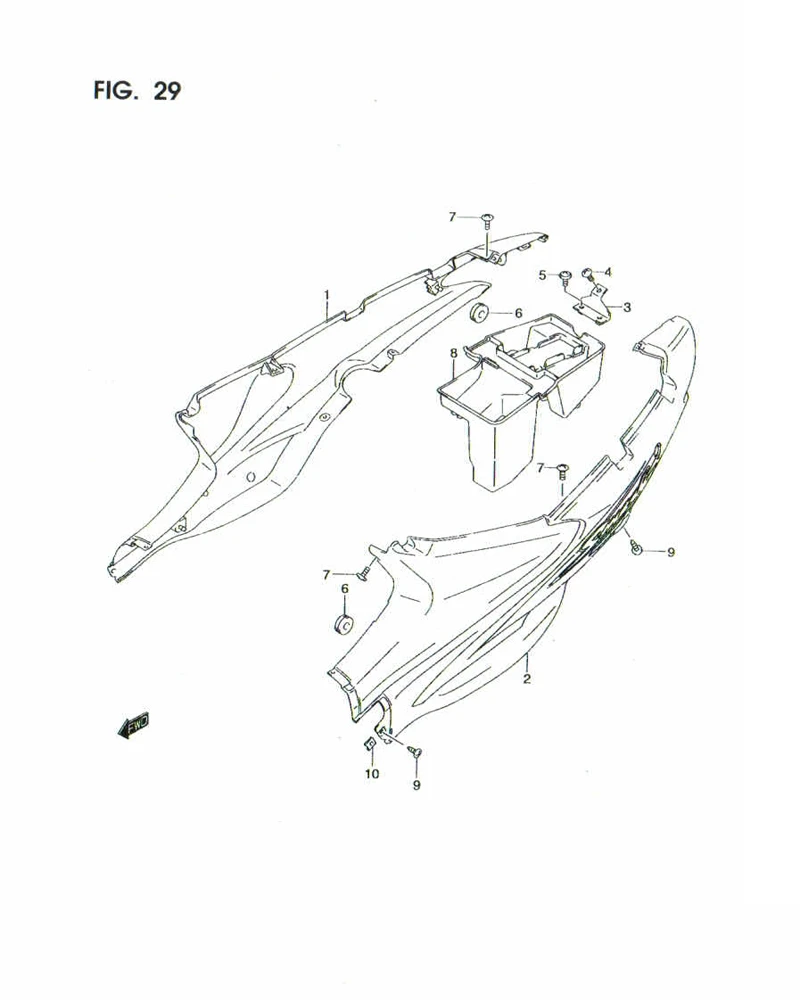

FIG. 29 FRAME COVER

FIG. 29 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111B09G00N000 COVER, FRAME, RH 1 -
2 47211B09G00N000 COVER, FRAME, LH 1 -
3 DISCONTINUE
SUB: 47140B09G00N000		 BRACKER, REAR 1 -
4 02142-0516B-000
SUB: 02142B05163N000		 SCREW 1 Rp4.000
5 DISCONTINUE
SUB: 09136B06081N000		 SCREW, UPPER 2 -
6 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 2 Rp15.000
7 02142-0616B-000
SUB: 02142-06163-000		 SCREW 6 Rp5.500
8 47341-09G01-000
SUB: 47341B09G00N000		 COVER, UPPER 1 Rp35.000
9 03541-0516A-000
SUB: 03541-05163-000		 SCREW THAI 4 Rp3.500
10 09148-05038-000 NUT SMC 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
