SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

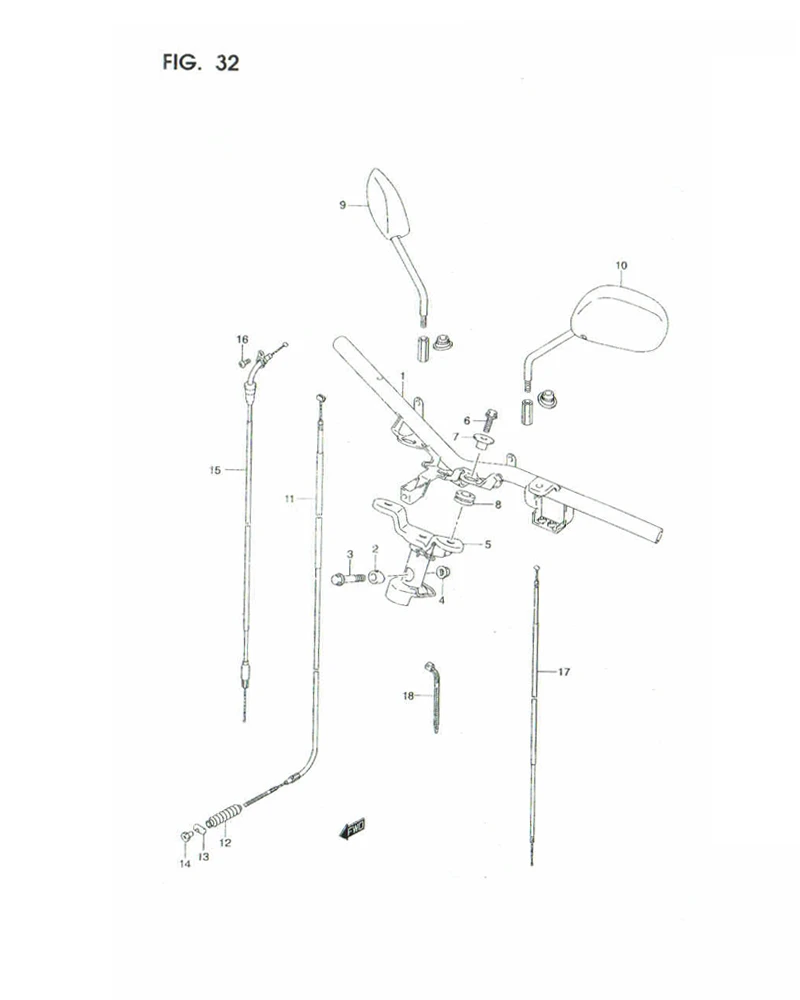

FIG. 32 HANDLEBAR

FIG. 32 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 56110B09G00N000		 HANDLEBAR 1 -
2 51358-09G00-000 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000 BOLT 1 Rp28.500
4 08319-3110A-000
SUB: 08319-31103-000		 NUT 1 Rp4.500
5 DISCONTINUE
SUB: 51310B09G00N000		 BRACKET, FORK UPPER 1 -
6 01550-0825A-000
SUB: 01550-08253-000		 BOLT 3 Rp3.500
7 DISCONTINUE
SUB: 56243B09G00N000		 SPACER 3 -
8 DISCONTINUE
SUB: 56247B09G00N000		 CUSHION 3 -
9 56500B09G00N000 MIRROR ASSY, REAR VIEW RH 1 -
10 56600B09G00N000 MIRROR ASSY, RAR VIEW LH 1 -
11 DISCONTINUE
SUB: 58100B09G00N000		 CABLE, FRONT BRAKE 1 -
12 09287-07001-000 SEAL 1 Rp12.000
13 DISCONTINUE
SUB: 09209-10001-000		 PIN 1 -
14 09150-05101-000 NUT 1 Rp18.000
15 58300-09G10-000
SUB: 58300B09G00N000		 CABLE ASSY, THROTTLLE 1 Rp40.000
16 02112-0512A-000
SUB: 02112B05123N000		 SCREW 1 Rp2.500
17 58410-09G00-000
SUB: 58410B09G00N000		 CABLE, STARTER 1 Rp21.500
18 09407-19401-000
SUB: 09407-25401-000		 CLAMP 1 Rp31.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
