SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

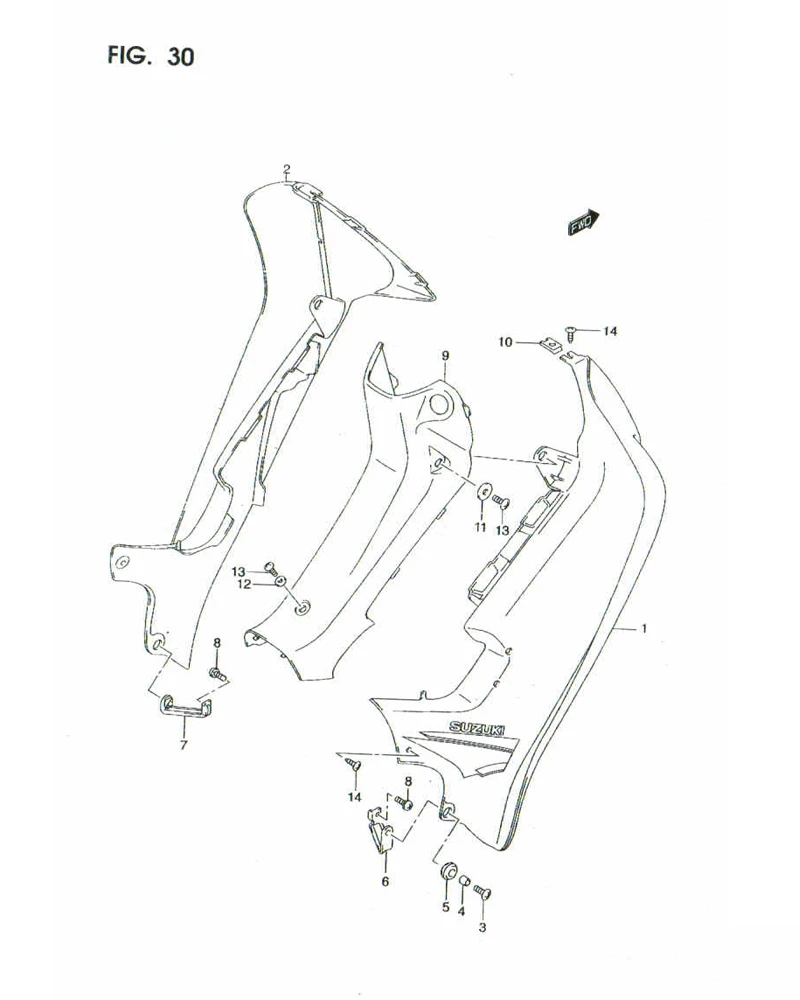

FIG. 30 LEG SHIELD

FIG. 30 LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111B09G00N000 SHIELD, LEG RH 1 -
2 48121B09G00N000 SHIELD, LEG LH 1 -
3 09136-06004-000
SUB: 09136-06009-000		 SCREW, LOWER 2 Rp14.500
4 09180-06263-000 SPACER 2 Rp12.500
5 09320-09026-000
SUB: 09320B09026N000		 CUSHION 2 Rp12.500
6 DISCONTINUE
SUB: 48140B09G00N000		 BRACE, LEG RH 1 -
7 DISCONTINUE
SUB: 48150B09G00N000		 BRACE, LEG LH 1 -
8 02112-3616A-000
SUB: 02112-36163-000		 SCREW, BRACE 2 Rp14.000
9 48131-09G00-000
SUB: 48131B09G00N000		 SHIELD, LEG CENTER 1 Rp74.000
10 09148-05020-000 NUT 2 Rp13.500
11 09160-06109-000 WASHER, UPPER 2 Rp13.000
12 09169-06071-000 WASHER, REAR 1 Rp7.500
13 02142-0612A-000
SUB: 02142-06123-000		 SCREW 3 Rp4.000
14 03241-1516B-000
SUB: 03241-15163-000		 SCREW 4 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
