SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 25 FRAMEFIG. 26 STANDFIG. 27 FOOTRESTFIG. 28 FUEL TANKFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 32 HANDLEBARFIG. 33 HANDLE COVERFIG. 34 HANDLE LEVERFIG. 35 REAR FENDERFIG. 36 LABELFIG. 37 SEATFIG. 38 FRONT FORK DAMPERFIG. 39 FRONT FORK BRACKETFIG. 40 FRONT WHEELFIG. 41 REAR SWINGING ARMFIG. 42 CHAIN CASEFIG. 43 REAR WHEEL

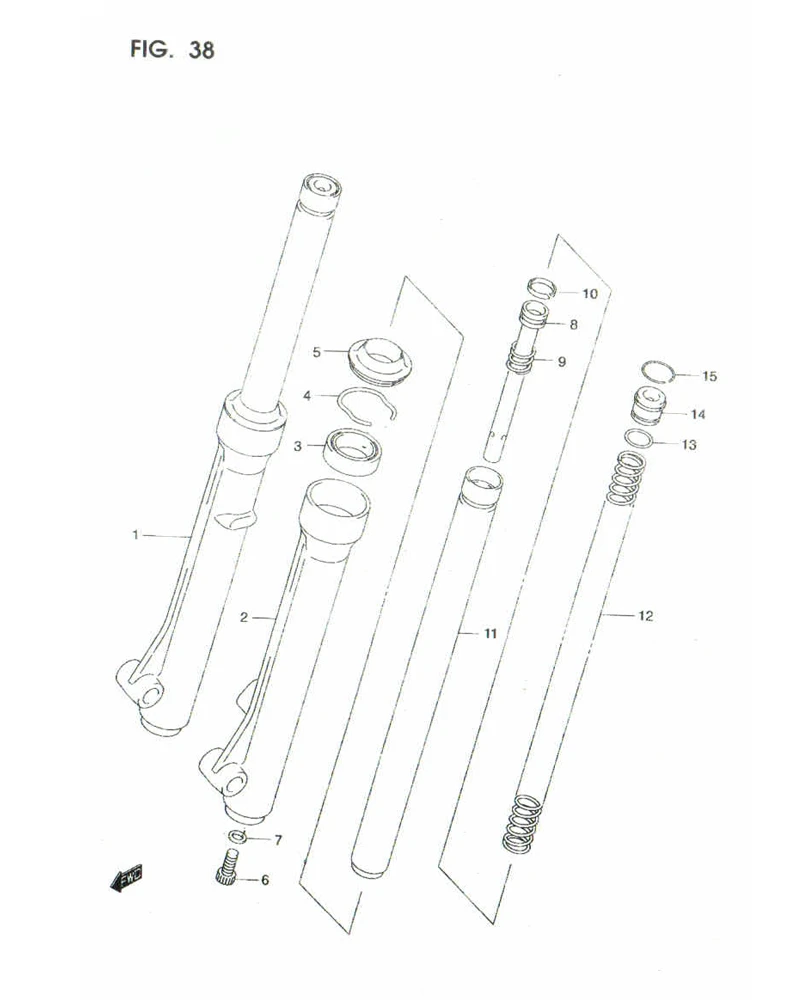

FIG. 38 FRONT FORK DAMPER

FIG. 38 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 51104B09G00N000		 DAMPER ASSY, FRONT FORK LH 1 -
DISCONTINUE
SUB: 51103B09G00N000		 DAMPER ASSY, FRONT FORK RH 1 -
1 DISCONTINUE
SUB: 51131B09G00N000		 .TUBE, OUTER RH 1 -
2 DISCONTINUE
SUB: 51141B09G00N000		 .TUBER, OUTER LH 1 -
3 51153-09G00-000
SUB: 51153B09G00N000		 .SEAL, OIL 2 Rp16.500
4 51156-09G00-000
SUB: 51156B09G00N000		 .RING, SNAP 2 Rp4.500
5 51571-09G00-000
SUB: 51571B09G00N000		 .SEAL, DUST 2 Rp8.000
6 51147-42AA0-000
SUB: 51147B42AA0N000		 .BOLT 2 Rp8.500
7 DISCONTINUE
SUB: 51148B36011N000		 .PACKING 2 -
8 DISCONTINUE
SUB: 51194B09G00N000		 .CYLINDER 2 -
9 51177-47E01-000
SUB: 51177B47E01N000		 .SPRING 2 Rp5.500
10 51196-09G00-000
SUB: 51196B09G00N000		 .RING, PISTON 2 Rp8.000
11 DISCONTINUE
SUB: 51110B09G00N000		 .TUBE, INNER 2 -
12 51171-09G00-000
SUB: 51171B09G00N000		 .SPRING, FRONT 2 Rp20.500
13 51117-09G00-000
SUB: 51117B09G00N000		 .O RING 2 Rp3.500
14 51175-09G00-000
SUB: 51175B09G00N000		 .SEAT, SPRING 2 Rp10.500
15 51169-09G00-000
SUB: 51169B09G00N000		 .RING, STOPPER 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
