SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

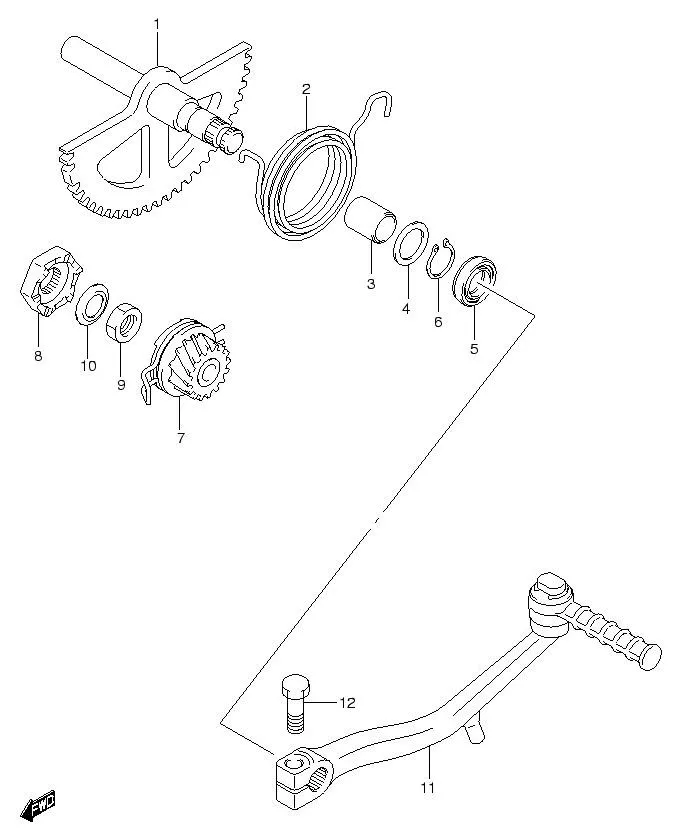

FIG.19 KICK STARTER

FIG.19 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26210-46G01-000 SHAFT, KICK STARTER 1 Rp146.000
2 26212-46G20-000
SUB: 26212B46G00N000		 SPRING, KICK SHAFT RETURN 1 Rp13.000
3 DISCONTINUE
SUB: 26213B46F00N000		 BUSH, KICK SHAFT 1 -
4 09160-14053-000
SUB: 09160B14053N000		 WASHER, KICK SHAFT OUTER 1 Rp5.500
5 09283-14016-000
SUB: 09283-14008-000		 SEAL, KICK STARTER 1 Rp13.000
6 08331-31149-000 CIRCLIP, KICK SHAFT 1 Rp7.500
7 26200-46G10-000
SUB: 26200B46G00N000		 GEAR ASSY, KICK STARTER DRIVEN 1 Rp155.500
8 26231-33G00-000
SUB: 26231B33G00N000		 STARTER, KICK, R 1 Rp46.000
9 09140-12039-000
SUB: 09140B12039N000		 NUT, KICK STARTER 1 Rp6.500
10 09164-12020-000 WASHER, KICK START NUT LOCK 1 Rp9.500
11 26300-33G00-000
SUB: 26300B33G00N000		 LEVER ASSY, KICK STARTER 1 Rp63.000
12 26314-33G00-000
SUB: 26314B33G00N000		 BOLT, KICK STARTER LEVER 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
