SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body

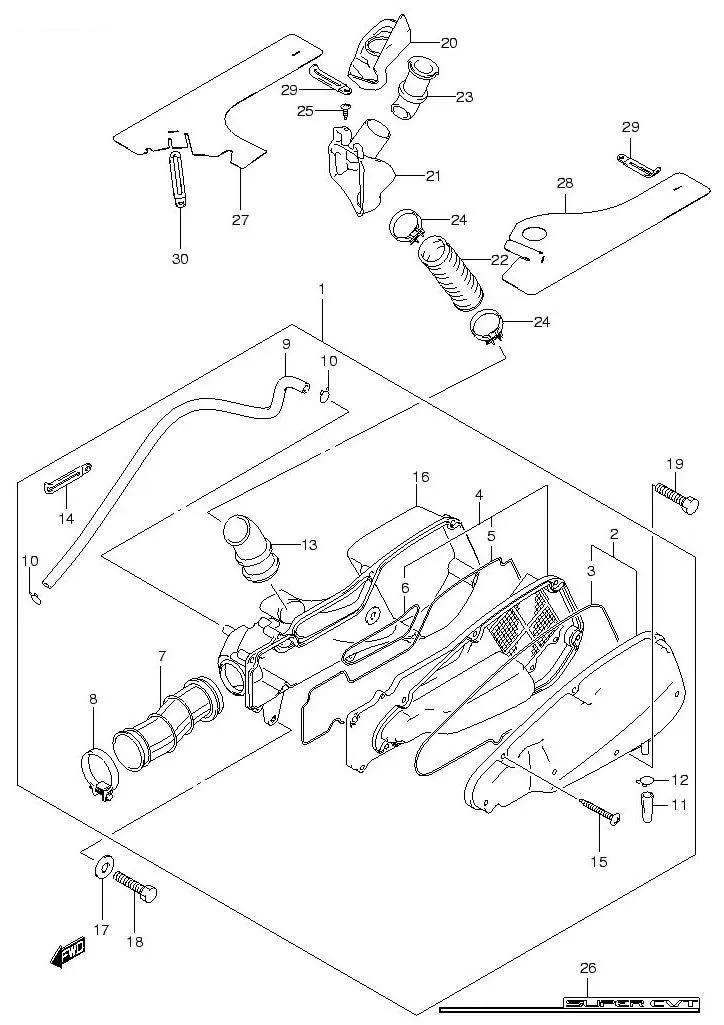

FIG.12 CLEANER ASSY

No	No. Part	Description	Qty	Price Per Pcs
1	13700-13H20-000 SUB: 13700B13H00N000	CLEANER ASSY, AIR	1	Rp367.000
2	13740-13H00-000 SUB: 13740B13H00N000	.CAP	1	Rp64.500
3	13746-13H00-000 SUB: 13746B13H00N000	..GASKET	1	Rp8.500
4	13780-13H01-000 SUB: 13780B13H00N000	.FILTER ASSY	1	Rp58.000
5	13786-13H00-000 SUB: 13786B13H00N000	..GASKET	1	Rp9.500
6	13787-13H00-000 SUB: 13787B13H00N000	..GASKET	1	Rp5.500
7	13881-13H00-000 SUB: 13881B13H00N000	.TUBE, OUTLET	1	Rp35.500
8	13826-46G01-000 SUB: 09402B48208N000	.CLAMP	1	Rp12.000
9	13853-13H01-000 SUB: 13853B13H00N000	.TUBE, BREATHER	1	Rp22.000
10	09401-14301-000 SUB: 09401B14301N000	.CLIP	2	Rp4.500
11	13871-09G00-000 SUB: 13871B09G00N000	.PLUG, DRAIN	2	Rp4.000
12	13824-18910-000 SUB: 13824B18910N000	.CLIP	2	Rp3.500
13	13895-13H01-000 SUB: 13895B13H01N000	.TUBE, INLET	1	Rp18.500
14	09404-06429-000 SUB: 09404B06429N000	.CLAMP	1	Rp15.000
15	03541-0530B-000 SUB: 03541B0530BN000	.SCREW	10	Rp3.500
16	13720-13H02-000 SUB: 13720B13H02N000	CASE COMP	1	Rp96.000
17	09160-06153-000 SUB: 09160B06153N000	WASHER, AIR CLEANER	1	Rp5.500
18	01547-0625A-000 SUB: 01547-0625B-000	BOLT, AIR CLEANER FR	1	Rp6.500
19	01547-0625A-000 SUB: 01547B0625AN000	BOLT, AIR CLEANER RR	1	Rp6.500
20	DISCONTINUE SUB: 13891B13H00N000	COVER, INLET	1	-
21	13892-13H00-000 SUB: 13892B13H00N000	DUCT, INLET	1	Rp38.000
22	13893-13H01-000 SUB: 13893B13H01N000	JOINT, INLET	1	Rp35.000
23	13894-13H00-000	TUBE, INLET	1	Rp18.500
24	09402-44208-000	CLAMP	2	Rp8.000
25	03541-0516A-000	SCREW	1	Rp3.500
26	68166-13H00-000 SUB: 68166B13H00N000	TAPE	1	Rp8.500
27	13738-13H00-000 SUB: 13738B13H00N000	GUARD, DUST RH	1	Rp36.500
28	13739-13H00-000 SUB: 13739B13H00N000	GUARD, DUST LH	1	Rp35.500
29	09404-06429-000 SUB: 09404B06429N000	CLAMP	2	Rp15.000
30	09404-06431-000	CLAMP	1	Rp14.000
